Proportional Valves
The valves enable continuous combined control of flow or pressure. The valve includes an electronic control unit mounted into the valve housing or separately in an electrical cabinet. Pressure scales stabilize the pressure drop in proportional directional control valves to ensure the independent control of the load. Our entire portfolio of proportional valves can be controlled via CANopen.
General Technical Information
Find more detailed information on page 13, chapter 3.1.6.
Show:
Products shown:
21

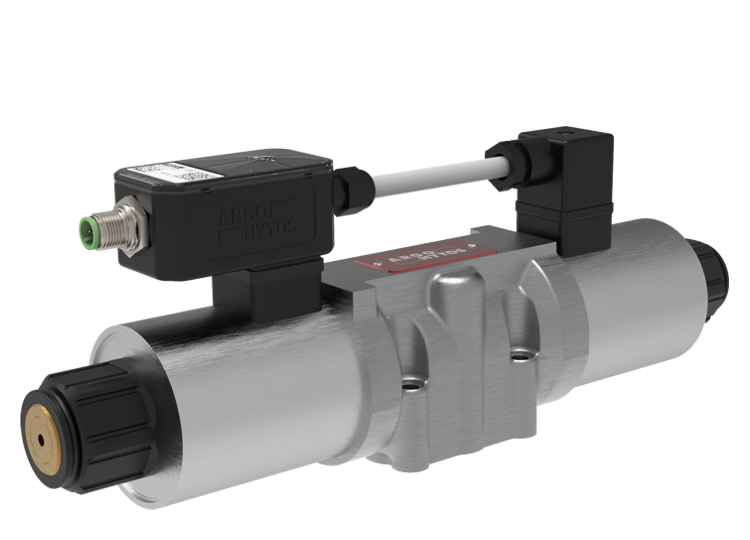

Proportional Directional Control Valves
Product-Variants
PRM2-04
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 20 (5) | 320 (4641) | Size 04 (D02) |
| Q max. l / min (GPM) | 20 (5) |
| P max. bar (PSI) | 320 (4641) |
| Size | Size 04 (D02) |

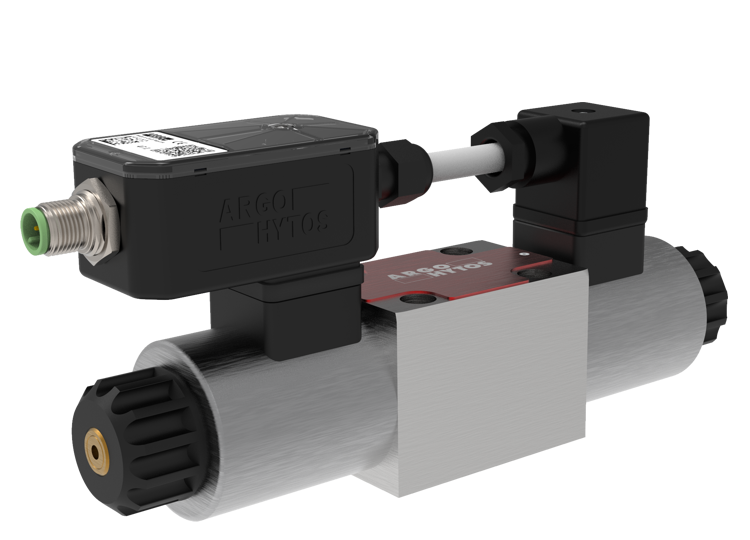

PRM2-06
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 30 (8) | 350 (5076) | Size 06 (D03) |
| Q max. l / min (GPM) | 30 (8) |
| P max. bar (PSI) | 350 (5076) |
| Size | Size 06 (D03) |
PRM6-10
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 80 (21) | 350 (5076) | Size 10 (D05) |
| Q max. l / min (GPM) | 80 (21) |
| P max. bar (PSI) | 350 (5076) |
| Size | Size 10 (D05) |
Proportional Directional Control Valves, Pilot Operated
Product-Variants

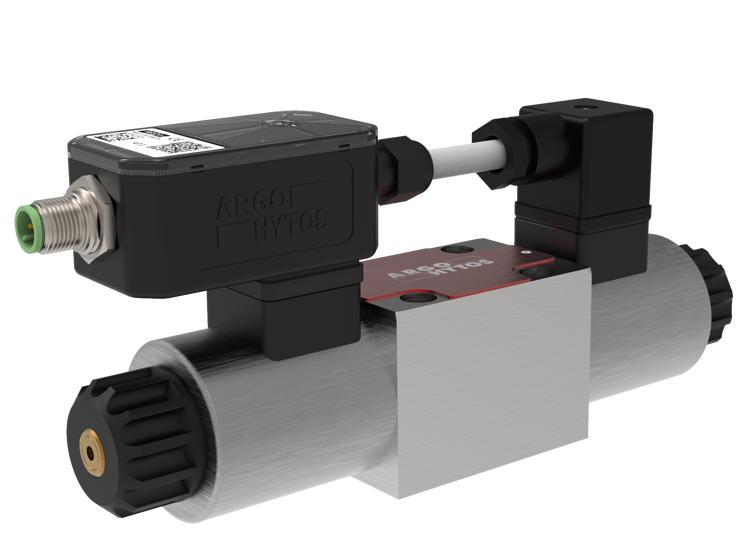

PRM8-06
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 140 (37) | 350 (5076) | Size 06 (D03) |
| Q max. l / min (GPM) | 140 (37) |
| P max. bar (PSI) | 350 (5076) |
| Size | Size 06 (D03) |

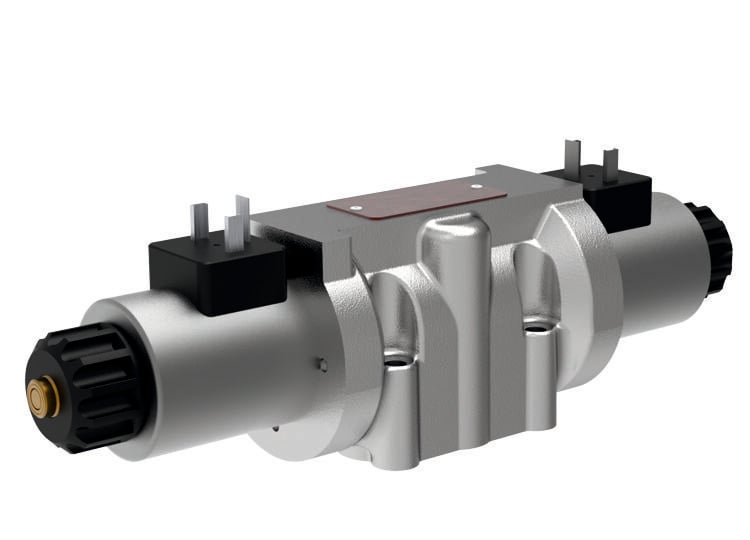

PRM8-10
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 210 (55) | 350 (5076) | Size 10 (D05) |
| Q max. l / min (GPM) | 210 (55) |
| P max. bar (PSI) | 350 (5076) |
| Size | Size 10 (D05) |
Proportional Directional Control Valve, with Auxiliary Lever Override
Product-Variants

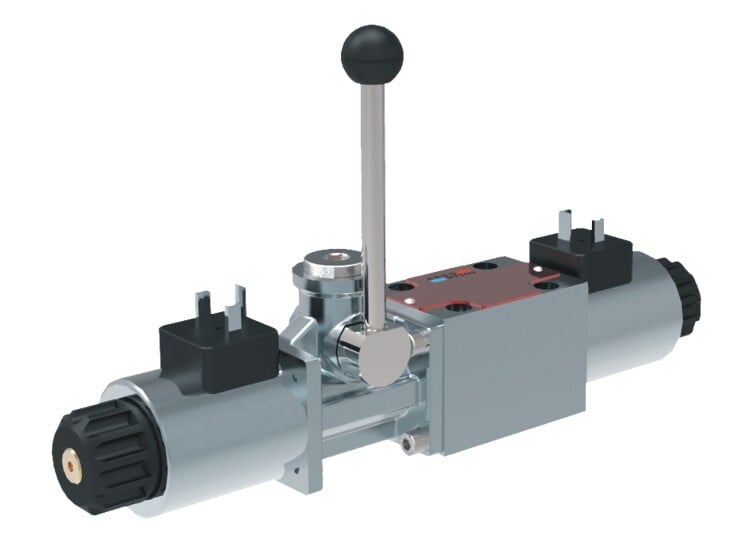

PRMR2-06
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 40 (11) | 350 (5076) | Size 06 (D03) |
| Q max. l / min (GPM) | 40 (11) |
| P max. bar (PSI) | 350 (5076) |
| Size | Size 06 (D03) |
Proportional Directional Control Spool Valves with Position Sensor
Product-Variants
PRMF2-06
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 30 (8) | 350 (5076) | Size 06 (D03) |
| Q max. l / min (GPM) | 30 (8) |
| P max. bar (PSI) | 350 (5076) |
| Size | Size 06 (D03) |
Proportional Directional Control Valves with Internal Feedback
Product-Variants

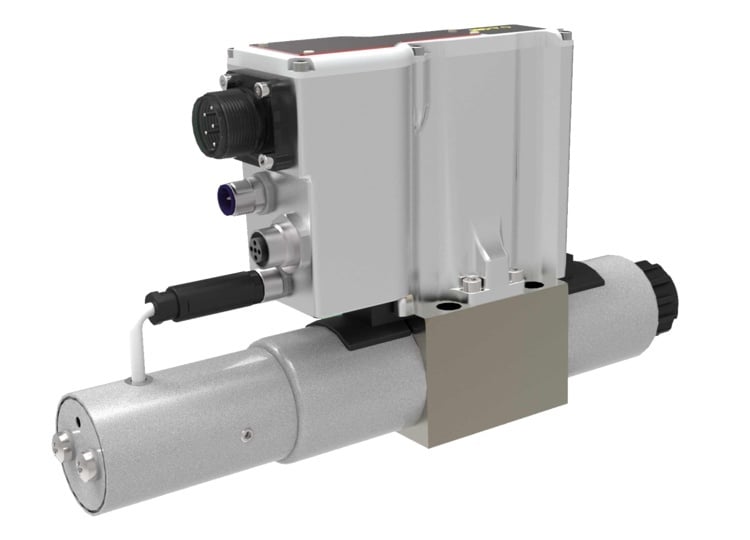

PRM9-06
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 30 (8) | 350 (5076) | Size 06 (D03) |
| Q max. l / min (GPM) | 30 (8) |
| P max. bar (PSI) | 350 (5076) |
| Size | Size 06 (D03) |

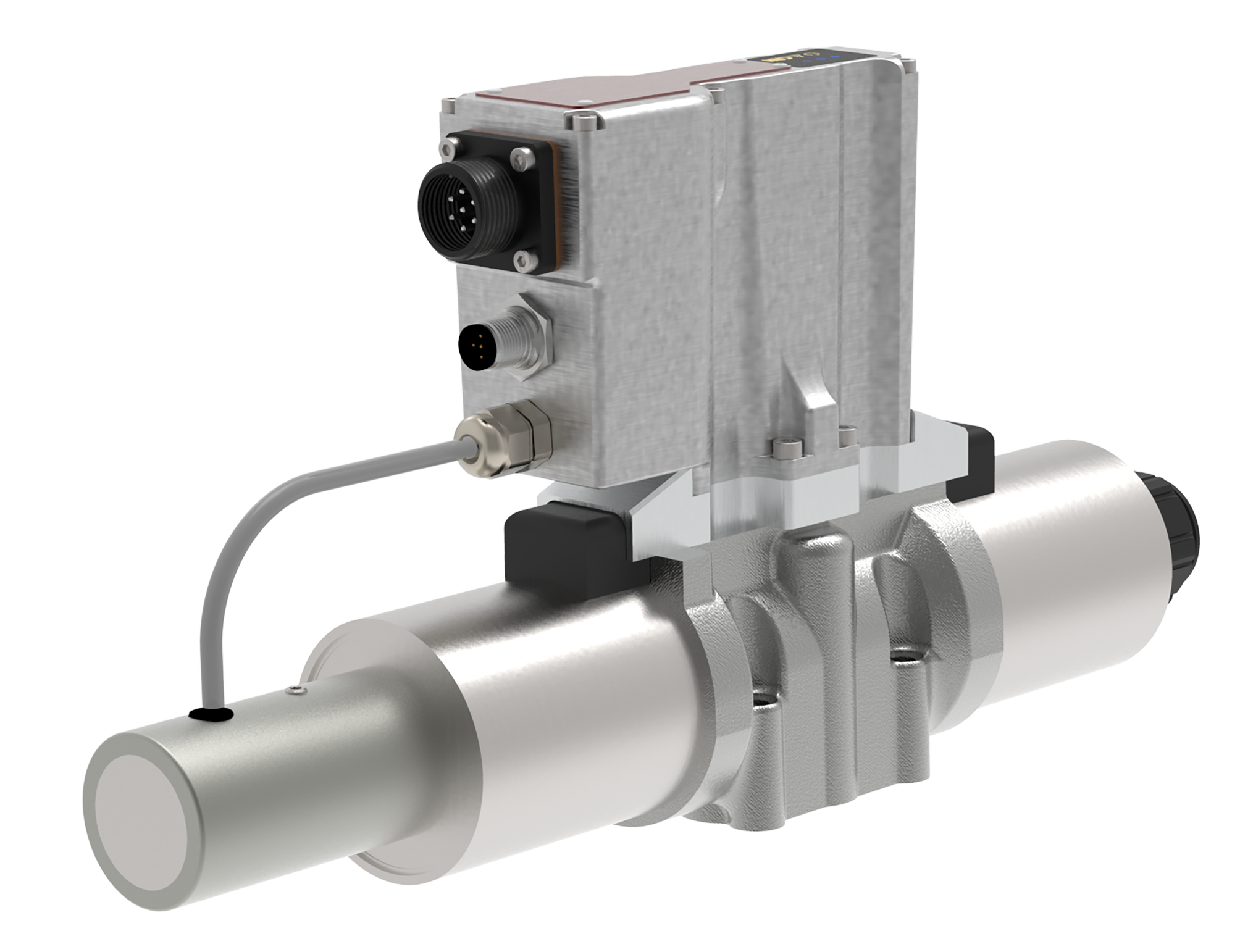

PRM9-10
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 60 (16) | 350 (5076) | Size 10 (D05) |
| Q max. l / min (GPM) | 60 (16) |
| P max. bar (PSI) | 350 (5076) |
| Size | Size 10 (D05) |
High Dynamic Response Proportional Valves
Product-Variants
PRL1
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 63 (17) | 350 (5076) | Size 06 (D03) |
| Q max. l / min (GPM) | 63 (17) |
| P max. bar (PSI) | 350 (5076) |
| Size | Size 06 (D03) |
4/3 Proportional Directional Control Valve
Product-Variants

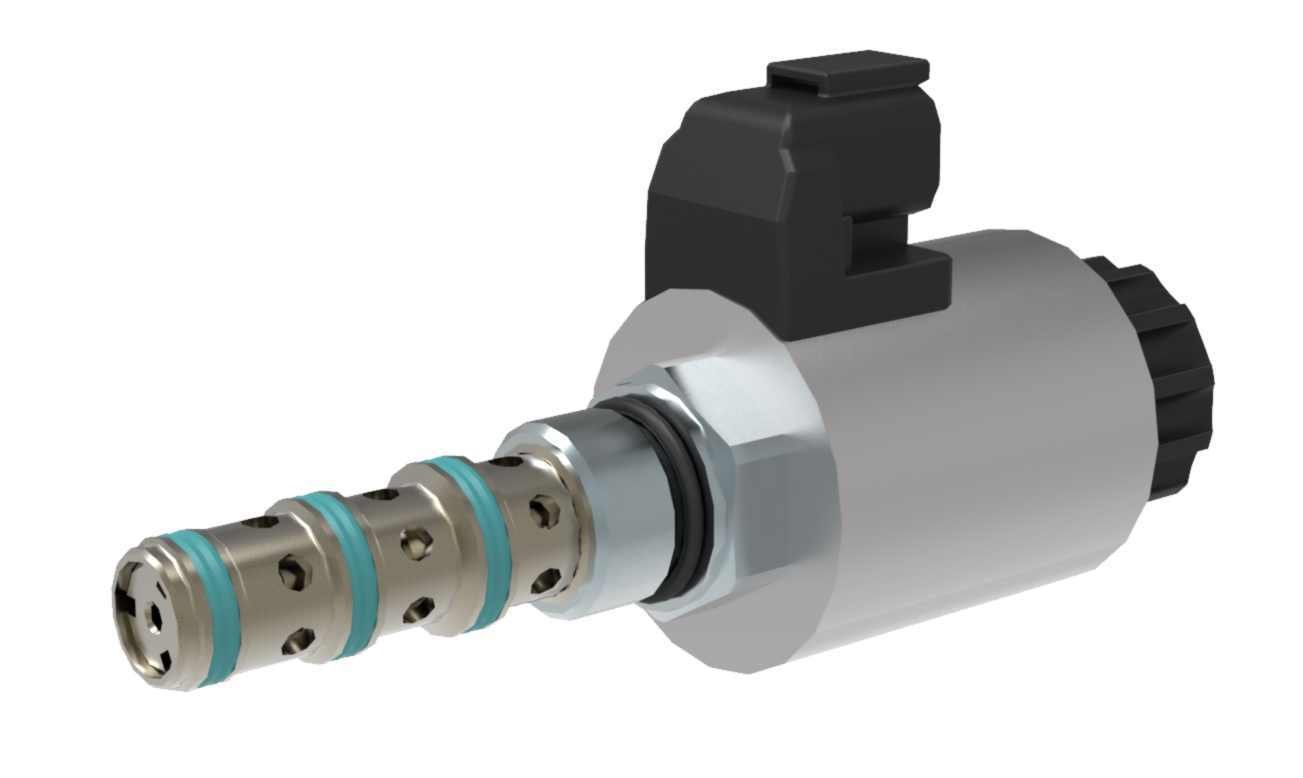

SD2P-B4
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 25 (7) | 250 (3626) | 7/8-14 UNF |
| Q max. l / min (GPM) | 25 (7) |
| P max. bar (PSI) | 250 (3626) |
| Size | 7/8-14 UNF |
2/2 Proportional Directional Poppet Valve
Product-Variants
SD3P-A2
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 50 (13) | 350 (5076) | 3/4-16 UNF |
| Q max. l / min (GPM) | 50 (13) |
| P max. bar (PSI) | 350 (5076) |
| Size | 3/4-16 UNF |

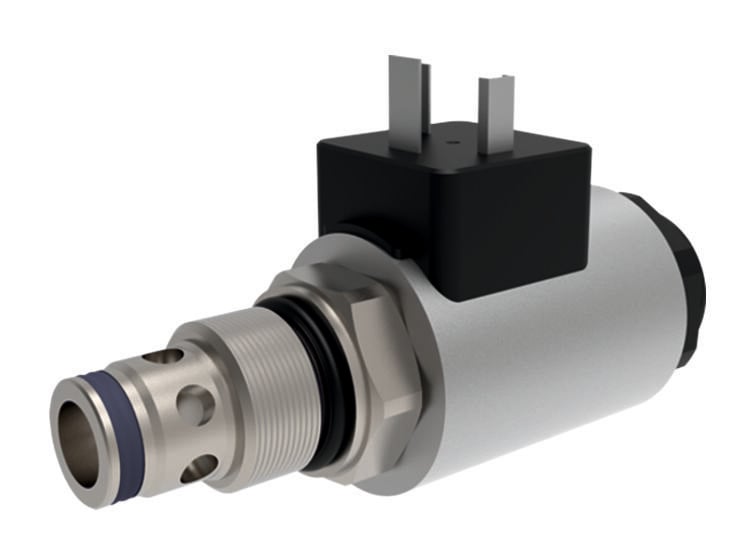

SD3P-B2
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 100 (26) | 350 (5076) | 7/8-14 UNF |
| Q max. l / min (GPM) | 100 (26) |
| P max. bar (PSI) | 350 (5076) |
| Size | 7/8-14 UNF |
Proportional Flow Control Valves
Product-Variants

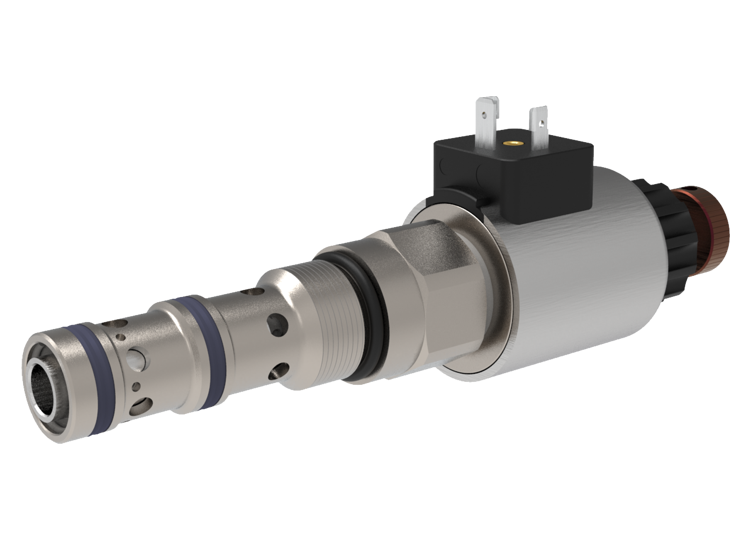

SF32P-C3/H
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 100 (26) | 350 (5076) | 1-1/16-12 UN |
| Q max. l / min (GPM) | 100 (26) |
| P max. bar (PSI) | 350 (5076) |
| Size | 1-1/16-12 UN |
Proportional Pressure Control Valves, Relief, Direct Acting
Product-Variants
SR1P2-A2
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 1.5 (0) | 350 (5076) | 3/4-16 UNF |
| Q max. l / min (GPM) | 1.5 (0) |
| P max. bar (PSI) | 350 (5076) |
| Size | 3/4-16 UNF |

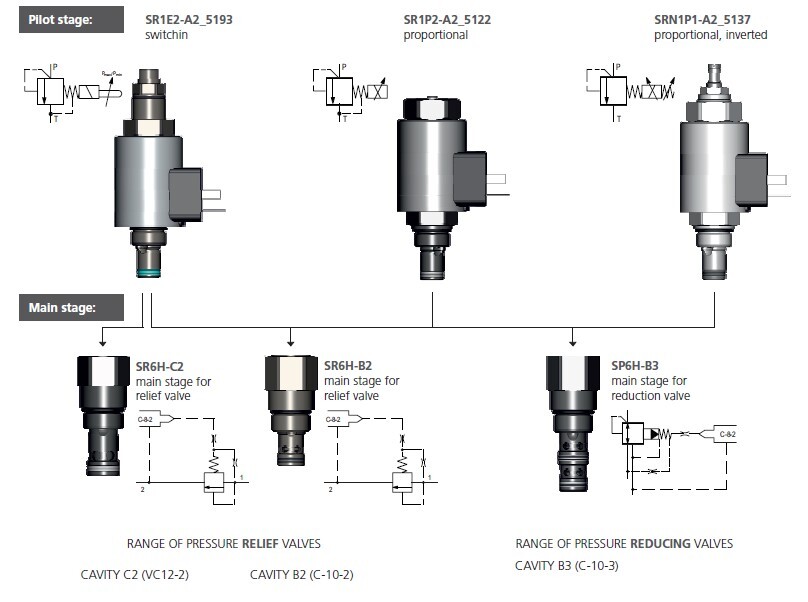

Modular cartridge for B2 (C-10-2), C2 (VC12-2) and B3 (C-10-3) cavities
| Size |
|---|
| B2 (C-10-2) B3 (C-10-3) C2 (VC12-2) |
| Size | B2 (C-10-2) B3 (C-10-3) C2 (VC12-2) |
Proportional Pressure Control Valves, Relief, Direct Acting, Inverted
Product-Variants

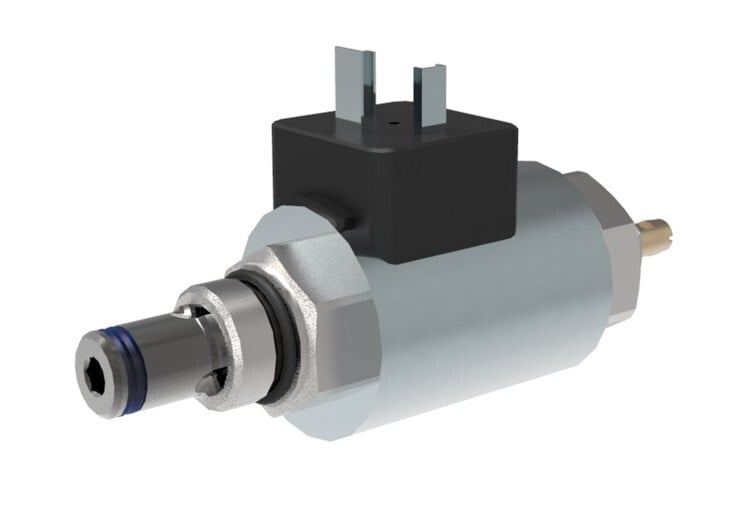

SRN1P1-A2
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 1.5 (0) | 350 (5076) | 3/4-16 UNF |
| Q max. l / min (GPM) | 1.5 (0) |
| P max. bar (PSI) | 350 (5076) |
| Size | 3/4-16 UNF |
Modular cartridge for B2 (C-10-2), C2 (VC12-2) and B3 (C-10-3) cavities
| Size |
|---|
| B2 (C-10-2) B3 (C-10-3) C2 (VC12-2) |
| Size | B2 (C-10-2) B3 (C-10-3) C2 (VC12-2) |
Proportional Pressure Control Valves, Relief, Pilot Operated
Product-Variants
SR4P2-B2
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 80 (21) | 350 (5076) | 7/8-14 UNF |
| Q max. l / min (GPM) | 80 (21) |
| P max. bar (PSI) | 350 (5076) |
| Size | 7/8-14 UNF |

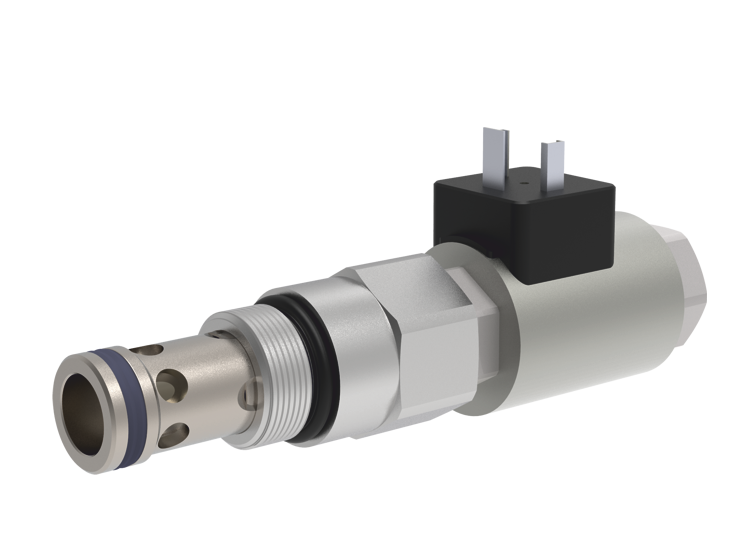

SR4P1-C2
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 200 (53) | 350 (5076) | 1-1/16-12 UN |
| Q max. l / min (GPM) | 200 (53) |
| P max. bar (PSI) | 350 (5076) |
| Size | 1-1/16-12 UN |
Modular cartridge for B2 (C-10-2), C2 (VC12-2) and B3 (C-10-3) cavities
| Size |
|---|
| B2 (C-10-2) B3 (C-10-3) C2 (VC12-2) |
| Size | B2 (C-10-2) B3 (C-10-3) C2 (VC12-2) |
Proportional Pressure Control Valves, Relief, Pilot Operated, Inverted
Product-Variants

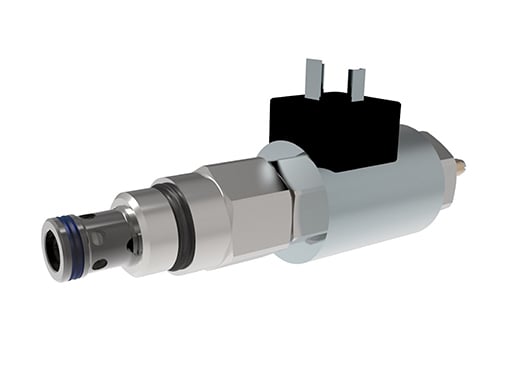

SRN4P1-B2
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 80 (21) | 350 (5076) | 7/8-14 UNF |
| Q max. l / min (GPM) | 80 (21) |
| P max. bar (PSI) | 350 (5076) |
| Size | 7/8-14 UNF |
Modular cartridge for B2 (C-10-2), C2 (VC12-2) and B3 (C-10-3) cavities
| Size |
|---|
| B2 (C-10-2) B3 (C-10-3) C2 (VC12-2) |
| Size | B2 (C-10-2) B3 (C-10-3) C2 (VC12-2) |
Proportional Pressure Control Valves, Reducing - Relieving, Pilot Operated
Product-Variants
SP4P2-B3
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 60 (16) | 350 (5076) | 7/8-14 UNF |
| Q max. l / min (GPM) | 60 (16) |
| P max. bar (PSI) | 350 (5076) |
| Size | 7/8-14 UNF |
Proportional Pressure Control Valves, Reducing - Relieving, Pilot Operated, Inverted
Product-Variants
SPN4P1-B3
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 60 (16) | 350 (5076) | 7/8-14 UNF |
| Q max. l / min (GPM) | 60 (16) |
| P max. bar (PSI) | 350 (5076) |
| Size | 7/8-14 UNF |
Modular cartridge for B2 (C-10-2), C2 (VC12-2) and B3 (C-10-3) cavities
| Size |
|---|
| B2 (C-10-2) B3 (C-10-3) C2 (VC12-2) |
| Size | B2 (C-10-2) B3 (C-10-3) C2 (VC12-2) |
Proportional Pressure Reducing - Relieving Valve, Manually Operated
Product-Variants
PVRR1-063
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 20 (5) | 30 (435) | M20x1.5 |
| Q max. l / min (GPM) | 20 (5) |
| P max. bar (PSI) | 30 (435) |
| Size | M20x1.5 |
2 Way Pressure Compensators, Cartridge
Product-Variants

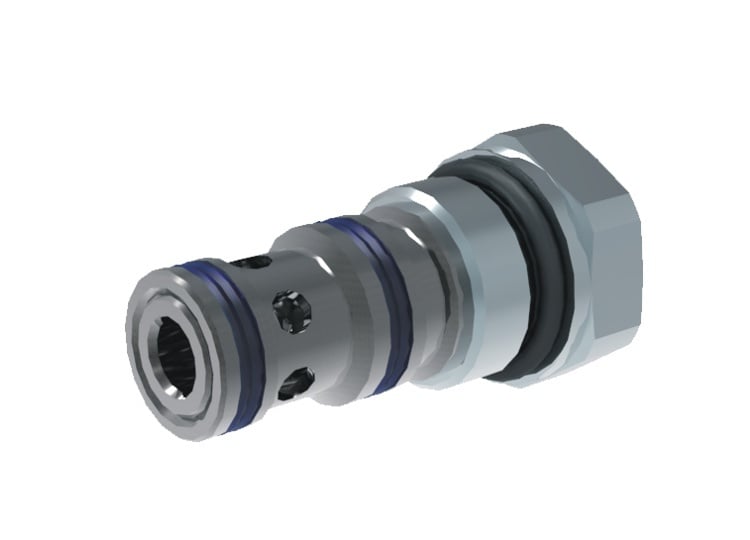

TV2-102/S
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 80 (21) | 350 (5076) | M27x2 |
| Q max. l / min (GPM) | 80 (21) |
| P max. bar (PSI) | 350 (5076) |
| Size | M27x2 |
2 Way Pressure Compensators, Modular Design
Product-Variants

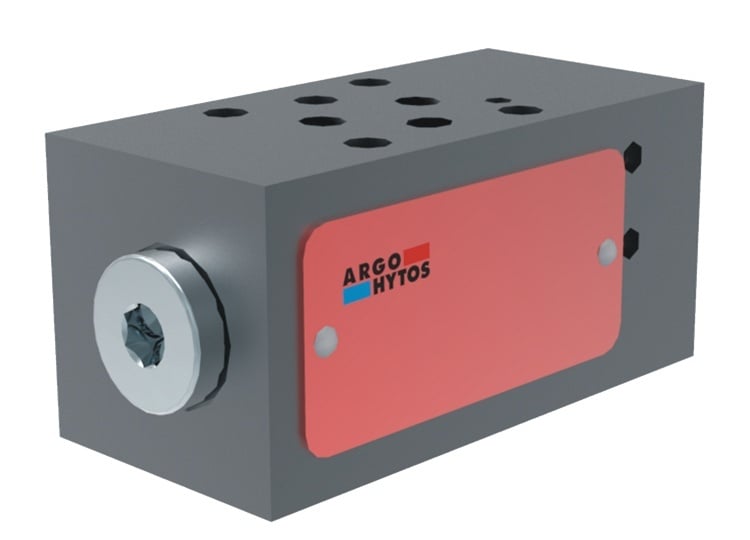

TV2-042/M
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 16 (4) | 320 (4641) | Size 04 (D02) |
| Q max. l / min (GPM) | 16 (4) |
| P max. bar (PSI) | 320 (4641) |
| Size | Size 04 (D02) |

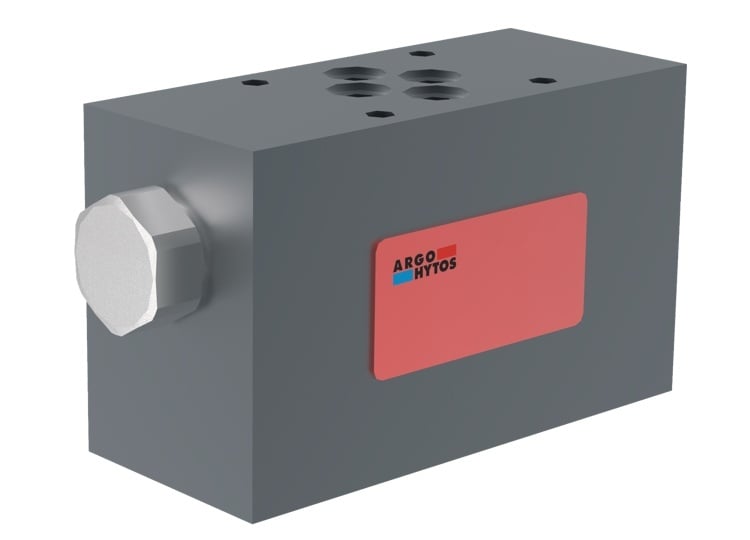

TV2-062/M
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 35 (9) | 350 (5076) | Size 06 (D03) |
| Q max. l / min (GPM) | 35 (9) |
| P max. bar (PSI) | 350 (5076) |
| Size | Size 06 (D03) |
TV2-102/M
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 80 (21) | 350 (5076) | Size 10 (D05) |
| Q max. l / min (GPM) | 80 (21) |
| P max. bar (PSI) | 350 (5076) |
| Size | Size 10 (D05) |
3 Way Pressure Compensators, Cartridge
Product-Variants
TV3-063/S
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 40 (11) | 350 (5076) | M20x1.5 |
| Q max. l / min (GPM) | 40 (11) |
| P max. bar (PSI) | 350 (5076) |
| Size | M20x1.5 |

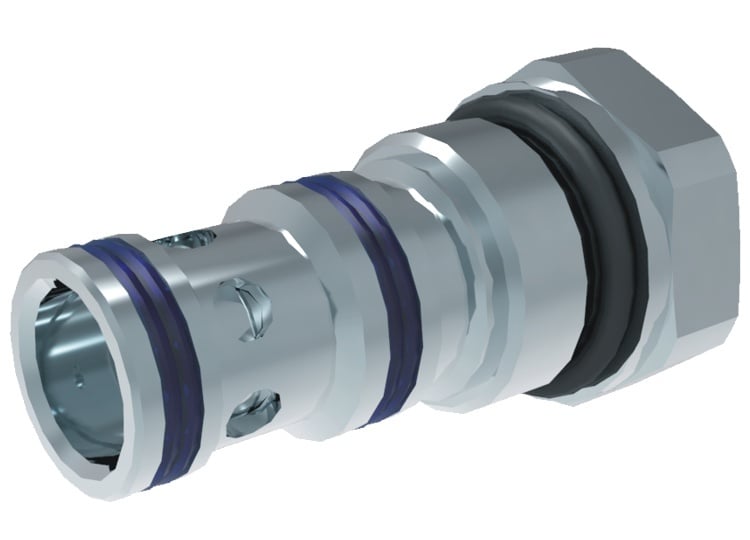

TV2-103/S
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 80 (21) | 350 (5076) | M27x2 |
| Q max. l / min (GPM) | 80 (21) |
| P max. bar (PSI) | 350 (5076) |
| Size | M27x2 |
3 Way Pressure Compensators, Modular Design
Product-Variants
TV3-043/M
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 20 (5) | 320 (4641) | Size 04 (D02) |
| Q max. l / min (GPM) | 20 (5) |
| P max. bar (PSI) | 320 (4641) |
| Size | Size 04 (D02) |
TV3-063/M
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 40 (11) | 320 (4641) | Size 06 (D03) |
| Q max. l / min (GPM) | 40 (11) |
| P max. bar (PSI) | 320 (4641) |
| Size | Size 06 (D03) |

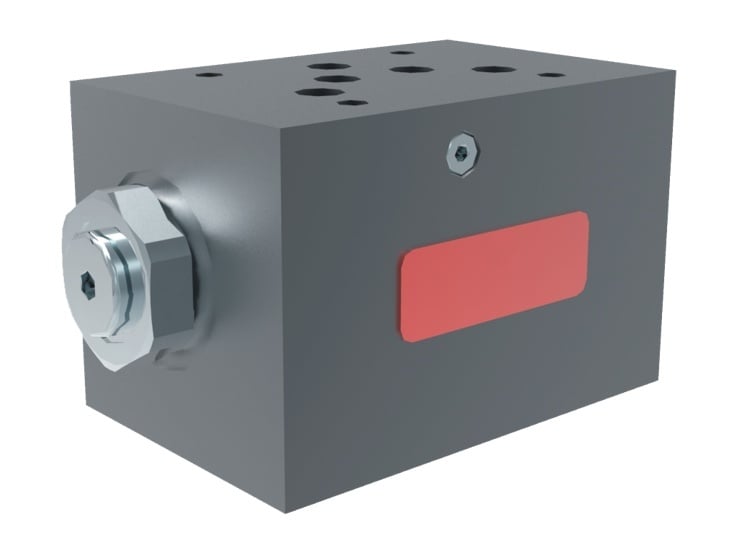

TV2-103/M
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 80 (21) | 350 (5076) | Size 10 (D05) |
| Q max. l / min (GPM) | 80 (21) |
| P max. bar (PSI) | 350 (5076) |
| Size | Size 10 (D05) |
Proportional Pressure Control Valves, Reducing - Relieving, Direct Acting
Product-Variants

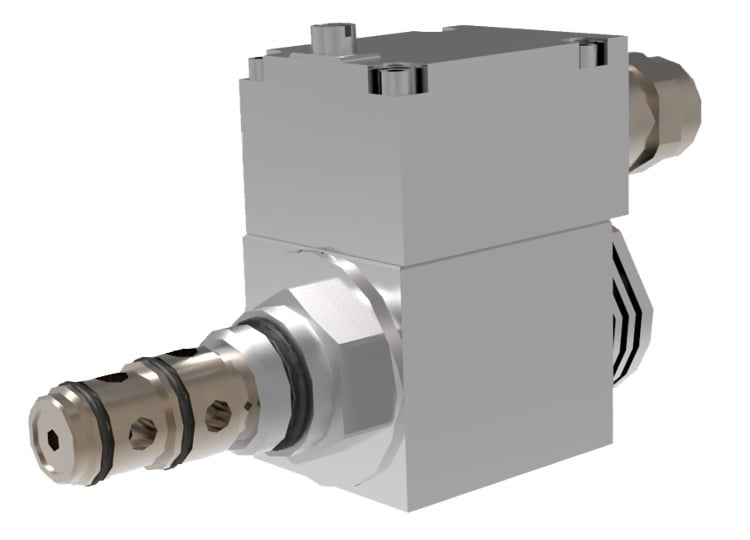

PVRMX3-103
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 40 (11) | 90 (1305) | M24x1.5 |
| Q max. l / min (GPM) | 40 (11) |
| P max. bar (PSI) | 90 (1305) |
| Size | M24x1.5 |
