Proportional Pressure Control Valves, Reducing - Relieving, Pilot Operated, A-T connection in basic position

Total: 1

Show:

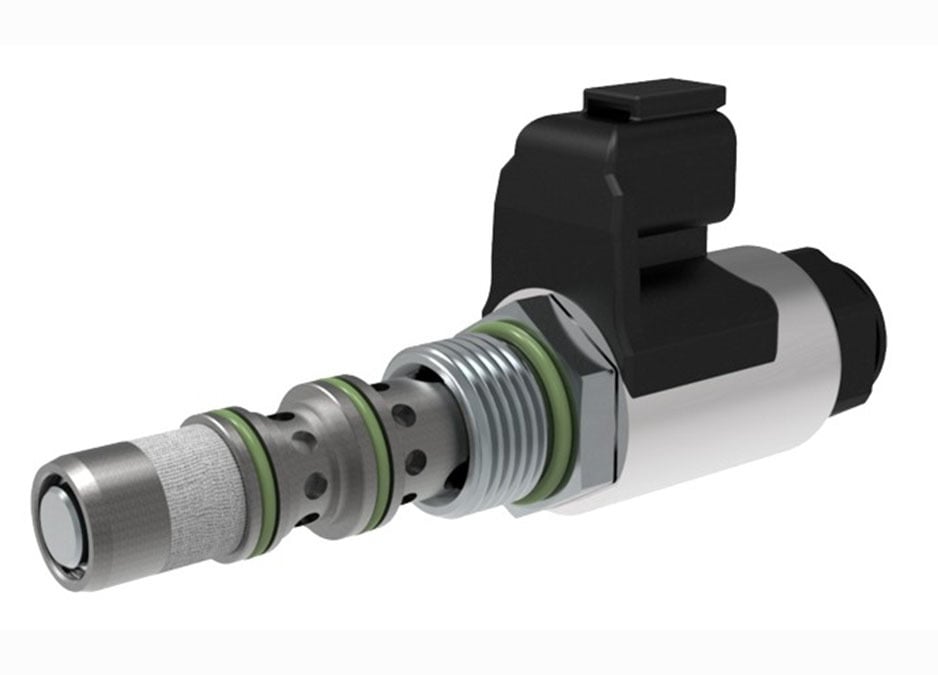

SP4P1-B4

Q max. l / min (GPM)	P max. bar (PSI)	Size
40 (11)	30 (435)	7/8-14 UNF

Q max. l / min (GPM)	40 (11)
P max. bar (PSI)	30 (435)
Size	7/8-14 UNF

Description

Excellent stability throughout flow range with rapid response to proportional current input change

Low hysteresis, accurate pressure control and low pressure drop through CFD optimized flow paths

Precise pressure control and excellent repeatability

Integrated relief function for protection against pressure peaks

Solenoid electrical terminal: AMP Junior Timer or Deutsch DT04-2P

12 or 24 V DC coils

Compact design with reduced solenoid dimensions for production cost saving

High flow capacity and low coil power consumption

Optional mesh screen

In the standard version, the valve is zinc-coated for 240 h protection acc. to ISO 9227.

Enhanced surface protection for mobile sector available for the steel parts (ISO 9227, 520 h salt spray)
