Suction Filters
Suction filters protect your pumps from coarse contaminants in the suction flow, preventing damage or malfunctions in the system at an early stage. They ensure safe, stable system operation and help to significantly extend the service life of your components.
Discover our wide range of suction filter variants – from finely tuned filter finenesses and different designs to replaceable inserts. You will find exactly the right solution for your application.
Discover our wide range of suction filter variants – from finely tuned filter finenesses and different designs to replaceable inserts. You will find exactly the right solution for your application.
Anzeige:
Dargestellte Produkte:
5

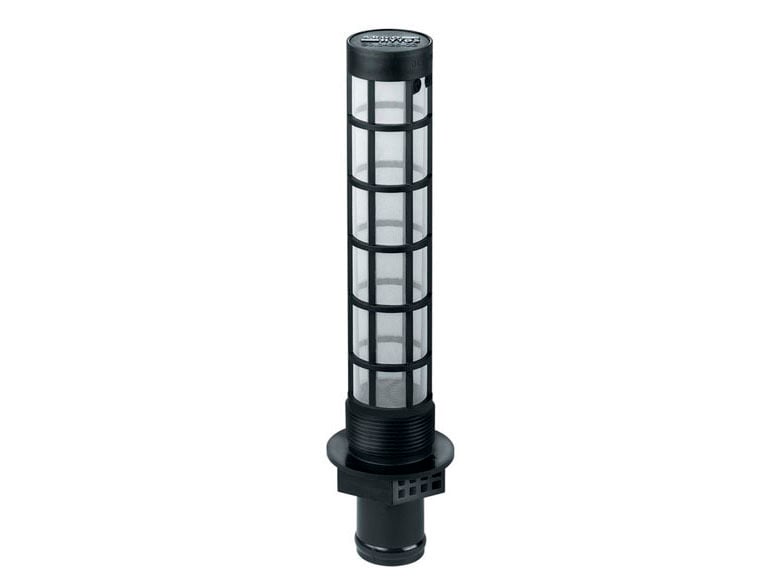

Suction Strainers S0.0426 · S0.0638
In-tank mounting · Hose connection up to DN 60 · Nominal flow rate up to 160 l/min / 42.3 gpm
Product-Variants
S0.0426
| Q max. l / min (GPM) | Design |
|---|---|
| 60 (16) | In tank mounting |
| Q max. l / min (GPM) | 60 (16) |
| Design | In tank mounting |
S0.0638
| Q max. l / min (GPM) | Design |
|---|---|
| 160 (42) | In tank mounting |
| Q max. l / min (GPM) | 160 (42) |
| Design | In tank mounting |

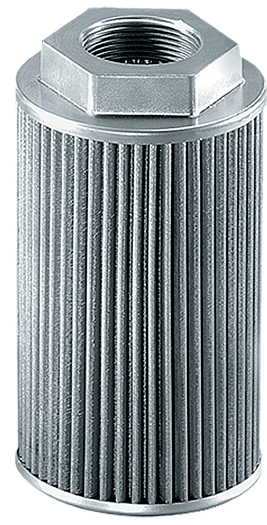

Suction Strainers AS 010 · AS 025 · AS 040 · AS 060 · AS 080 · AS 100 · AS 150
In-tank mounting · Connection up to G2½ · Nominal flow rate up to 350 l/min / 92.5 gpm
Product-Variants
AS 010
| Q max. l / min (GPM) | Design |
|---|---|
| 15 (4) | In tank mounting |
| Q max. l / min (GPM) | 15 (4) |
| Design | In tank mounting |
AS 025
| Q max. l / min (GPM) | Design |
|---|---|
| 35 (9) | In tank mounting |
| Q max. l / min (GPM) | 35 (9) |
| Design | In tank mounting |
AS 040
| Q max. l / min (GPM) | Design |
|---|---|
| 60 (16) | In tank mounting |
| Q max. l / min (GPM) | 60 (16) |
| Design | In tank mounting |
AS 060
| Q max. l / min (GPM) | Design |
|---|---|
| 90 (24) | In tank mounting |
| Q max. l / min (GPM) | 90 (24) |
| Design | In tank mounting |
AS 080
| Q max. l / min (GPM) | Design |
|---|---|
| 120 (32) | In tank mounting |
| Q max. l / min (GPM) | 120 (32) |
| Design | In tank mounting |
AS 100
| Q max. l / min (GPM) | Design |
|---|---|
| 200 (53) | In tank mounting |
| Q max. l / min (GPM) | 200 (53) |
| Design | In tank mounting |
AS 150
| Q max. l / min (GPM) | Design |
|---|---|
| 350 (92) | In tank mounting |
| Q max. l / min (GPM) | 350 (92) |
| Design | In tank mounting |

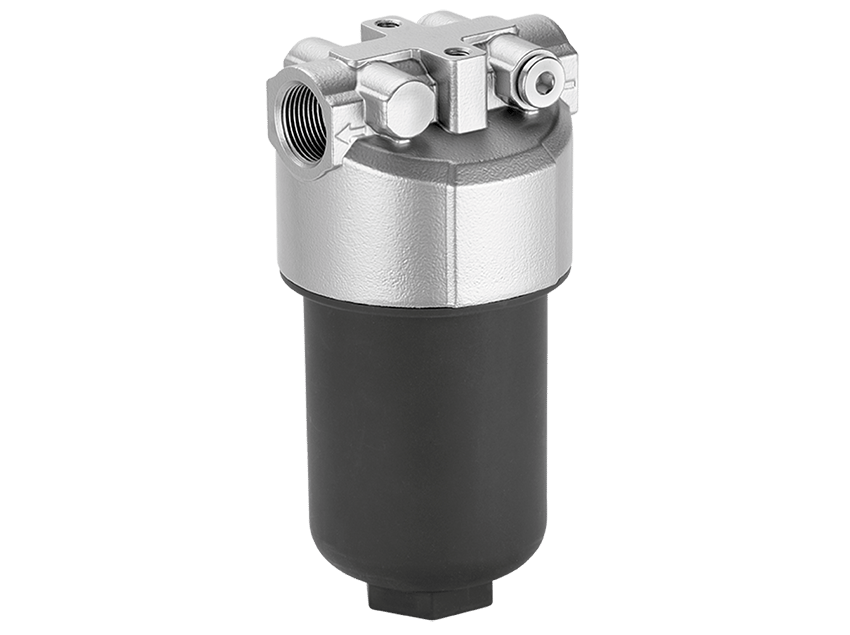

Suction Filters Standard SFL-025 · SFL-035
In-line mounting · Connection G¾ / -12 SAE · Nominal flow rate up to 40 l/min / 10.6 gpm
Product-Variants
SFL-025
| Q max. l / min (GPM) | Design |
|---|---|
| 30 (8) | Inline mounting |
| Q max. l / min (GPM) | 30 (8) |
| Design | Inline mounting |
SFL-035
| Q max. l / min (GPM) | Design |
|---|---|
| 40 (11) | Inline mounting |
| Q max. l / min (GPM) | 40 (11) |
| Design | Inline mounting |

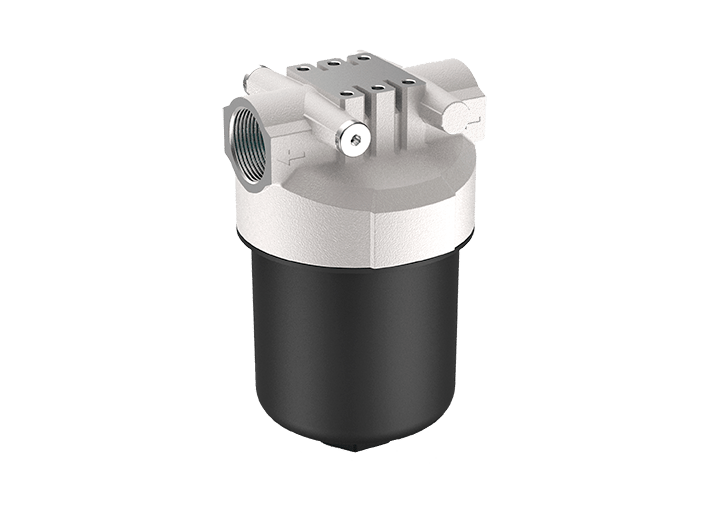

Suction Filters SFL-040 · SFL-075
In-line mounting · Connection G1¼ / -20 SAE · Nominal flow rate up to 90 l/min / 23.8 gpm
Product-Variants
SFL-040
| Q max. l / min (GPM) | Design |
|---|---|
| 50 (13) | Inline mounting |
| Q max. l / min (GPM) | 50 (13) |
| Design | Inline mounting |
SFL-075
| Q max. l / min (GPM) | Design |
|---|---|
| 90 (24) | Inline mounting |
| Q max. l / min (GPM) | 90 (24) |
| Design | Inline mounting |

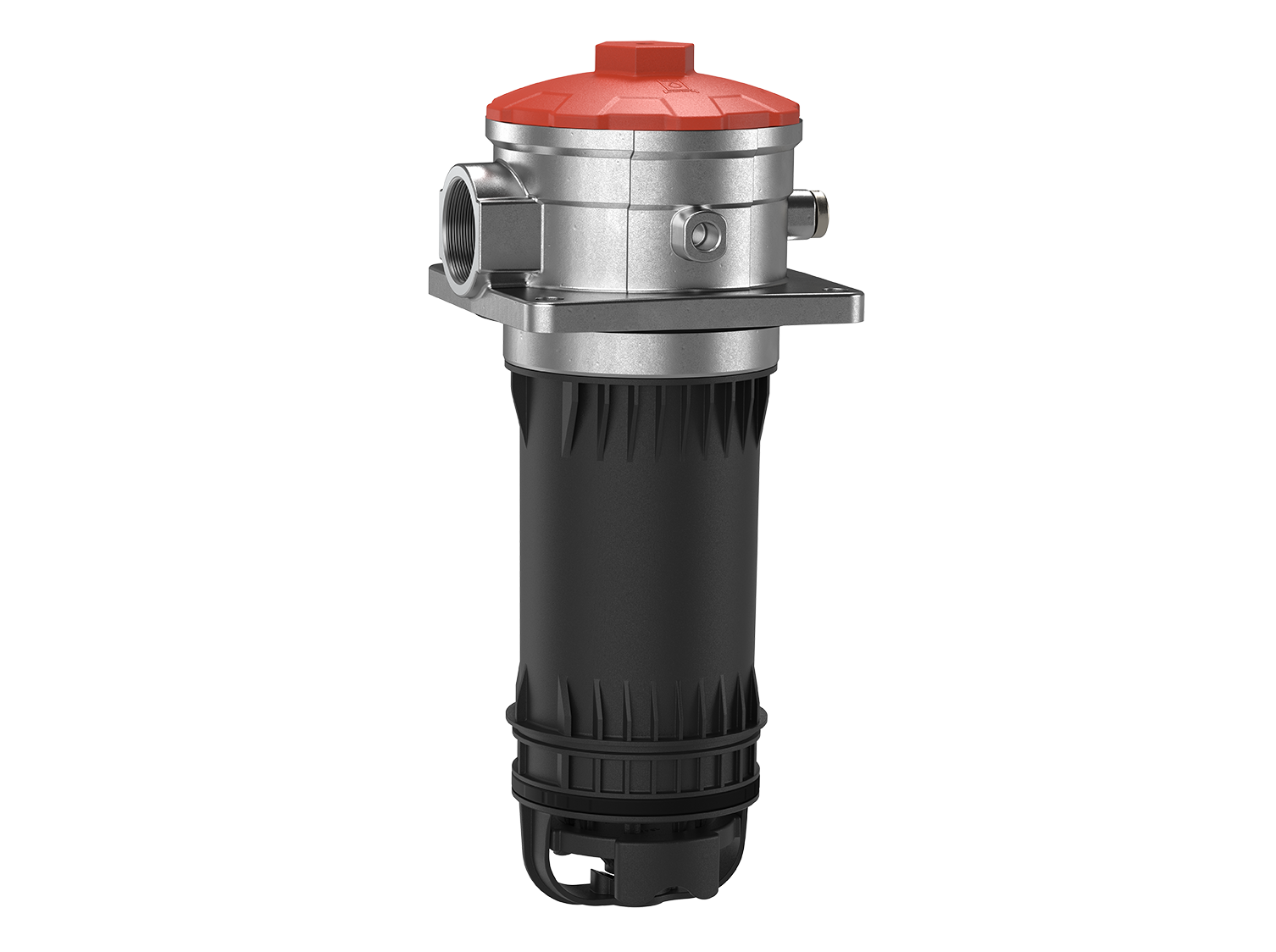

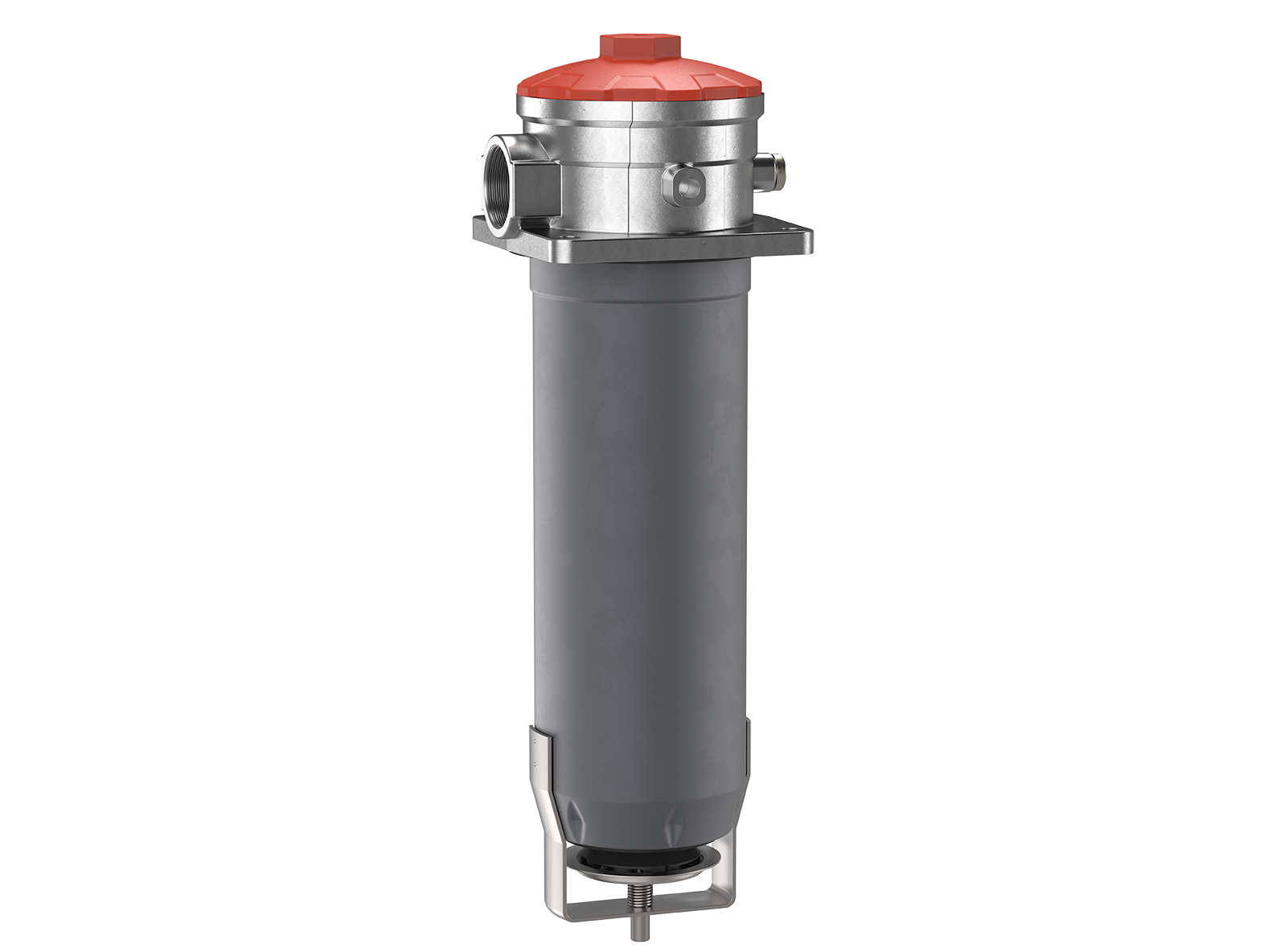

Suction Filters ES 075 · ES 094
Tank top mounting · Connection up to G1¼ · Nominal flow rate up to 80 l/min / 21.1 gpm
Product-Variants
ES 075
| Q max. l / min (GPM) | Design |
|---|---|
| 45 (12) | Tank-top mounting |
| Q max. l / min (GPM) | 45 (12) |
| Design | Tank-top mounting |
ES 094
| Q max. l / min (GPM) | Design |
|---|---|
| 70 (18) | Tank-top mounting |
| Q max. l / min (GPM) | 70 (18) |
| Design | Tank-top mounting |
