Proportional Pressure Control Valves, Reducing - Relieving, Direct Acting

Total: 5

Show:

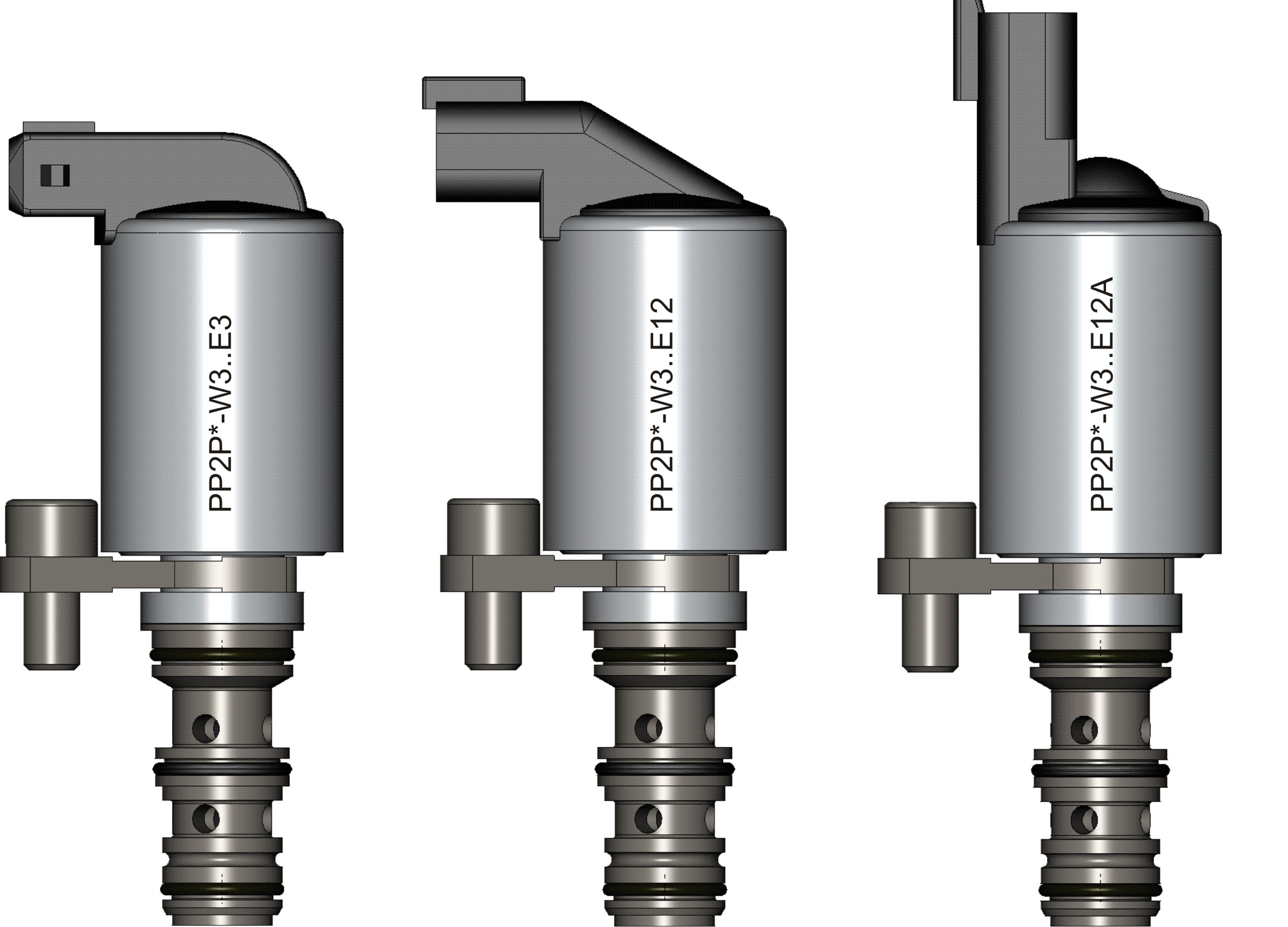

PP2P1-W3

Q max. l / min (GPM)	P max. bar (PSI)	Size
20 (5)	50 (725)	Size D20

Q max. l / min (GPM)	20 (5)
P max. bar (PSI)	50 (725)
Size	Size D20

Description

Excellent stability throughout flow range with rapid response to proportional current input change

Low hysteresis, accurate pressure control and low pressure drop through CFD optimized flow paths

Precise pressure control and excellent repeatability

Integrated relief function for protection against pressure peaks

Solenoid electrical terminal AMP Junior Timer or Deutsch DT04-2P

12 or 24 V DC coils

Compact design with reduced solenoid dimensions for production cost savings

High flow capacity and low coil power consumption

Optional mesh screen

In the standard version, the valve is zinc-coated for 240 h protection acc. to ISO 9227.

Enhanced surface protection for mobile sector available for the steel parts (ISO 9227, 520 h salt spray)

PP2P3-W3

Q max. l / min (GPM)	P max. bar (PSI)	Size
30 (8)	50 (725)	Size D20

Q max. l / min (GPM)	30 (8)
P max. bar (PSI)	50 (725)
Size	Size D20

Description

Valve is primary used in clutch control application typically in mobile transmissions

Excellent stability throughout flow range with rapid response to proportional current input change

Low hysteresis, accurate pressure control and low pressure drop through CFD optimized flow paths

Precise pressure control and excellent repeatability

Integrated relief function for protection against pressure peaks

Solenoid electrical terminal AMP Junior Timer or Deutsch DT04-2P

12 or 24 V DC coils

Compact design with reduced solenoid dimensions for production cost savings

High flow capacity and low coil power consumption

Optional mesh screen

In the standard version, the valve is zinc-coated for 240 h protection acc. to ISO 9227.

Enhanced surface protection for mobile sector available for the steel parts (ISO 9227, 520 h salt spray)

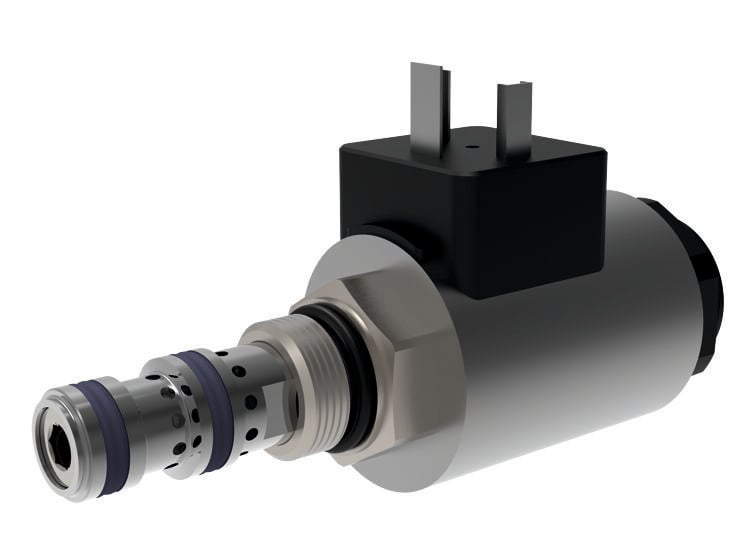

SP2P1-A3

Q max. l / min (GPM)	P max. bar (PSI)	Size
10 (3)	350 (5076)	3/4-16 UNF

Q max. l / min (GPM)	10 (3)
P max. bar (PSI)	350 (5076)
Size	3/4-16 UNF

Description

Precise pressure control and excellent repeatability

Reduced pressure from high pressure level possible

Excellent stability throughout flow and pressure range

Integrated relief function for protection against pressure peaks

12 or 24 V DC coils

Solenoid electrical terminal: EN 175301-803-A, AMP Junior Timer or Deutsch D04-2P

In the standard version, the valve is zinc-coated for 520 h protection in NSS acc. to ISO 9227

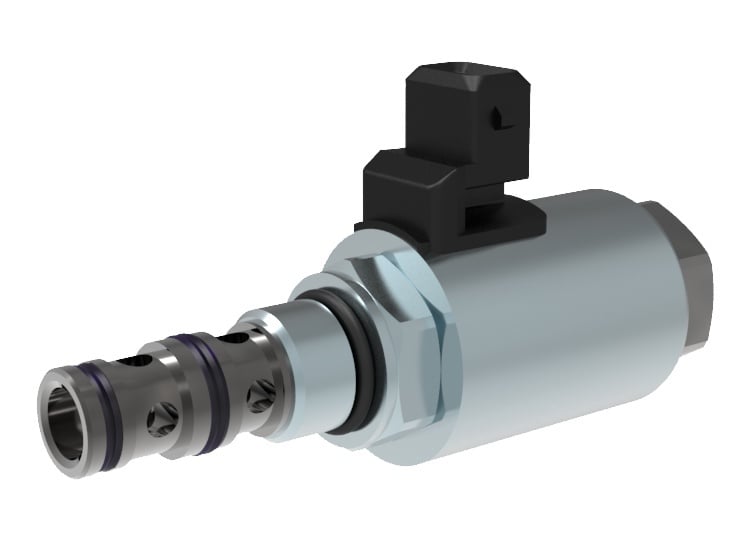

PVRM1-063

Q max. l / min (GPM)	P max. bar (PSI)	Size
20 (5)	50 (725)	M20x1.5

Q max. l / min (GPM)	20 (5)
P max. bar (PSI)	50 (725)
Size	M20x1.5

Description

Excellent stability throughout flow range with rapid response to proportional current input change

Low hysteresis, accurate pressure control and low pressure drop

Precise pressure control and excellent repeatability

Integrated relief function for protection against pressure peaks

Solenoid electrical terminal acc. to EN 175301-803-A, AMP Junior Timer, or Deutsch DT04-2P

12 or 24 V DC coils

Optional mesh screen

In the standard version, the valve is zinc-coated for 240 h protection acc. to ISO 9227.

Enhanced surface protection for mobile sector available for the steel parts (ISO 9227, 520 h salt spray).

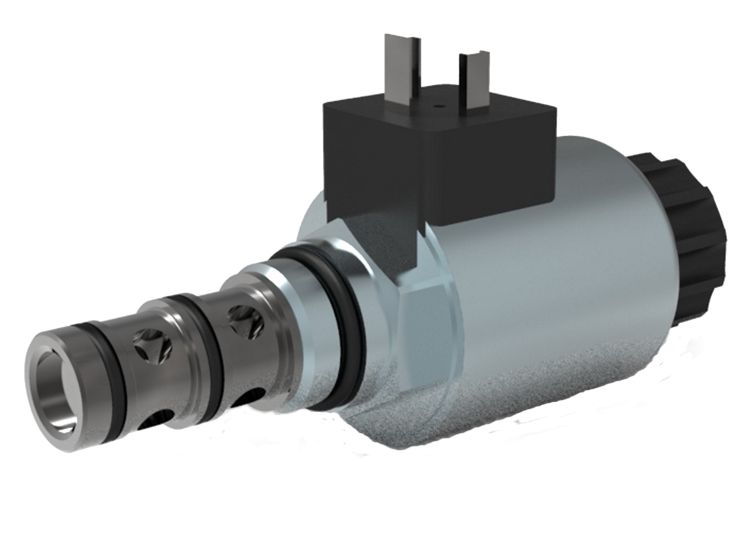

PVRM3-103

Q max. l / min (GPM)	P max. bar (PSI)	Size
40 (11)	90 (1305)	M24x1.5

Q max. l / min (GPM)	40 (11)
P max. bar (PSI)	90 (1305)
Size	M24x1.5

Description

Excellent stability throughout flow range with rapid response to proportional current input change

Low hysteresis, accurate pressure control and low pressure drop through CFD optimized flow paths

Precise pressure control and excellent repeatability

Integrated relief function for protection against pressure peaks

Solenoid electrical terminal AMP Junior Timer, or Deutsch D04-2P

12 or 24 V DC coils

In the standard version, the valve is zinc-coated for 240 h protection acc. to ISO 9227.

Enhanced surface protection for mobile sector available for the steel parts (ISO 9227, 520 h salt spray)

No variants were found for this product

Unfortunately, we couldn't find any product variants for the selected product.
