Pressure Control Valves
The valves enable the regulation of system pressure to adjust the force on a hydraulic piston rod or the torque on a hydraulic motor shaft. Pressure relief valves are used to set the maximum pressure in the circuit and protect it from overloading. Pressure reducing valves permanently maintain the output pressure at the set value while protecting the appliance from overloading. Unloading valves are designed for economical pressure control in accumulator-operated circuits that serve as a power source for emergency control.
General Technical Information
Find more detailed information on page 9, chapter 3.1.3.
Show:
Products shown:
14
Pressure Relief Valves, Poppet Type, Direct Acting, Cartridges
Product-Variants
SR1A-A2
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 30 (8) | 350 (5076) | 3/4-16 UNF |
| Q max. l / min (GPM) | 30 (8) |
| P max. bar (PSI) | 350 (5076) |
| Size | 3/4-16 UNF |
SR1A-B2
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 60 (16) | 420 (6092) | 7/8-14 UNF |
| Q max. l / min (GPM) | 60 (16) |
| P max. bar (PSI) | 420 (6092) |
| Size | 7/8-14 UNF |

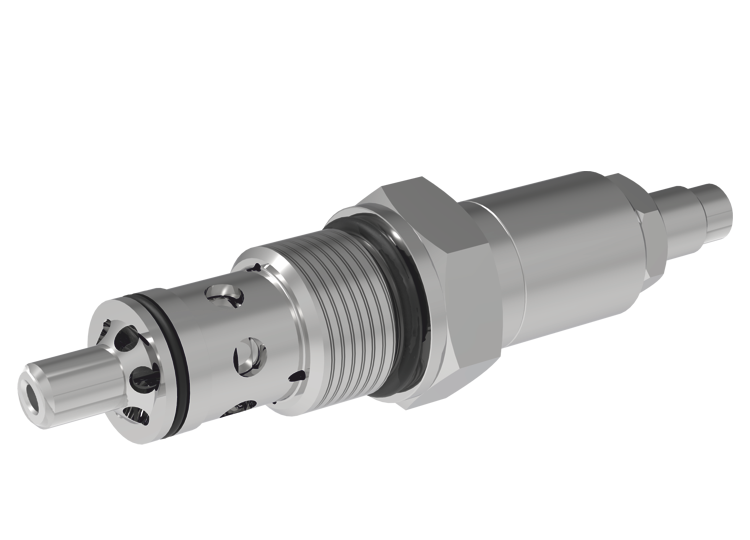

SR1A-CA2
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 120 (32) | 350 (5076) | 1-1/16-12 UN |
| Q max. l / min (GPM) | 120 (32) |
| P max. bar (PSI) | 350 (5076) |
| Size | 1-1/16-12 UN |
VPP2-04/S
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 40 (11) | 320 (4641) | M22x1.5 |
| Q max. l / min (GPM) | 40 (11) |
| P max. bar (PSI) | 320 (4641) |
| Size | M22x1.5 |
VPP2-06
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 50 (13) | 320 (4641) | M28x1.5 |
| Q max. l / min (GPM) | 50 (13) |
| P max. bar (PSI) | 320 (4641) |
| Size | M28x1.5 |

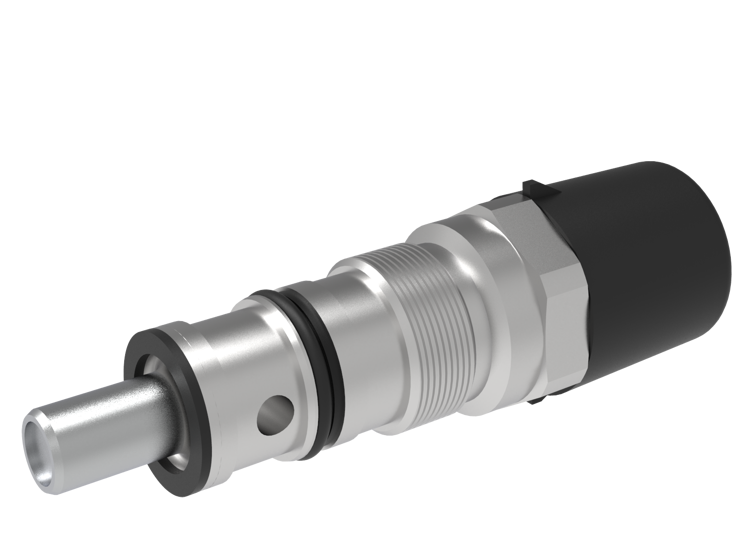

VPP1-06(10)
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 50 (13) | 120 (1740) | M28x1.5 M35x1.5 |
| Q max. l / min (GPM) | 50 (13) |
| P max. bar (PSI) | 120 (1740) |
| Size | M28x1.5 M35x1.5 |

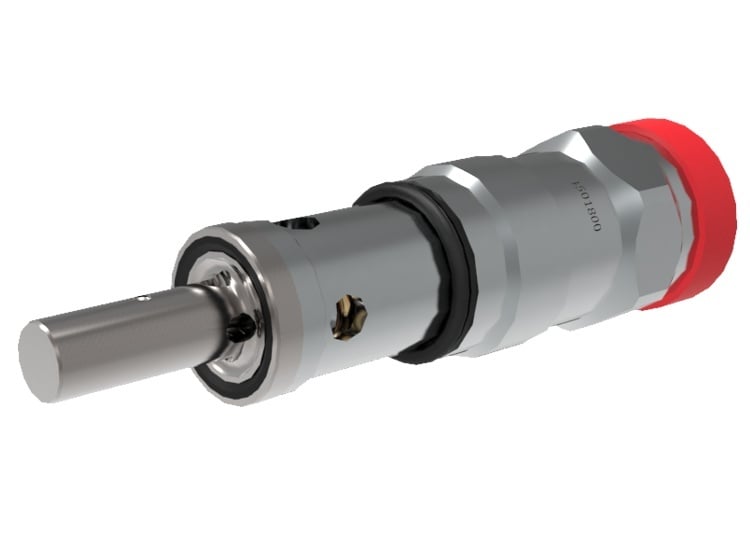

VPP-R-16(25)
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 120 (32) | 400 (5802) | M36x2 M42x2 |
| Q max. l / min (GPM) | 120 (32) |
| P max. bar (PSI) | 400 (5802) |
| Size | M36x2 M42x2 |
Pressure Relief Valves, Poppet Type, Direct Acting, Cartridges, PED Certified
Product-Variants
SR1A-A2/LxLx-CE1017
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 30 (8) | 350 (5076) | 3/4-16 UNF |
| Q max. l / min (GPM) | 30 (8) |
| P max. bar (PSI) | 350 (5076) |
| Size | 3/4-16 UNF |
SR1A-B2/HxLx-CE1017
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 60 (16) | 420 (6092) | 7/8-14 UNF |
| Q max. l / min (GPM) | 60 (16) |
| P max. bar (PSI) | 420 (6092) |
| Size | 7/8-14 UNF |
VPP2-06-xV/xx-CE1017
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 50 (13) | 320 (4641) | M28x1.5 |
| Q max. l / min (GPM) | 50 (13) |
| P max. bar (PSI) | 320 (4641) |
| Size | M28x1.5 |
VPP-R-16-xx-L-CE1017
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 120 (32) | 350 (5076) | M36x2 |
| Q max. l / min (GPM) | 120 (32) |
| P max. bar (PSI) | 350 (5076) |
| Size | M36x2 |
Pressure Relief Valves, Poppet Type, Direct Acting, Modular Design
Product-Variants

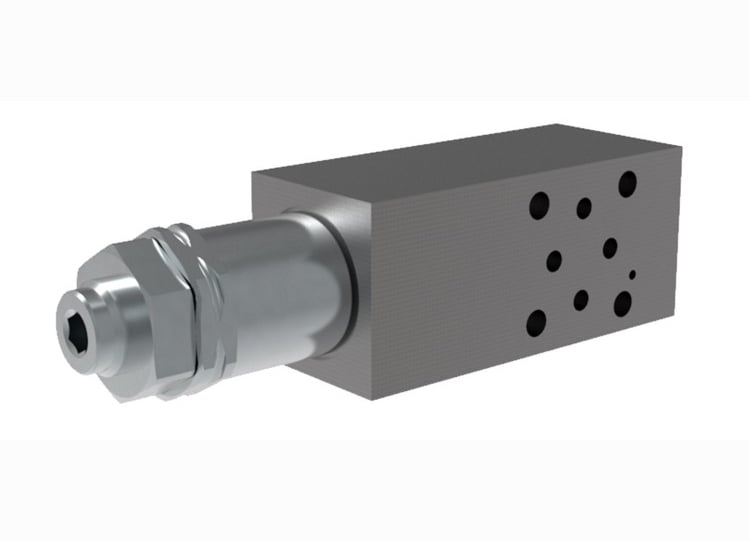

VPP2-04_M(R)
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 40 (11) | 320 (4641) | Size 04 (D02), 06 (D03) |
| Q max. l / min (GPM) | 40 (11) |
| P max. bar (PSI) | 320 (4641) |
| Size | Size 04 (D02), 06 (D03) |
Pressure Relief Valves, Spool Type, Pilot Operated, Cartridges
Product-Variants
SR4A-B2
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 100 (26) | 350 (5076) | 7/8-14 UNF |
| Q max. l / min (GPM) | 100 (26) |
| P max. bar (PSI) | 350 (5076) |
| Size | 7/8-14 UNF |

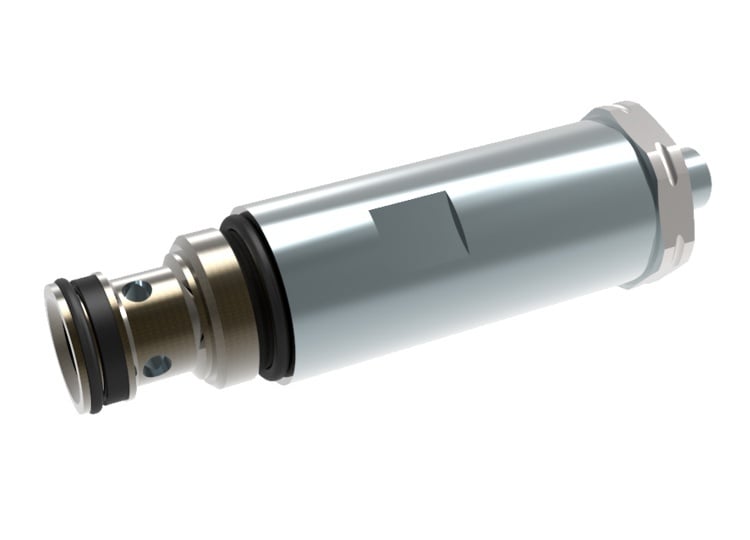

VPN1-06/S
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 70 (18) | 320 (4641) | M22x1,5 |
| Q max. l / min (GPM) | 70 (18) |
| P max. bar (PSI) | 320 (4641) |
| Size | M22x1,5 |

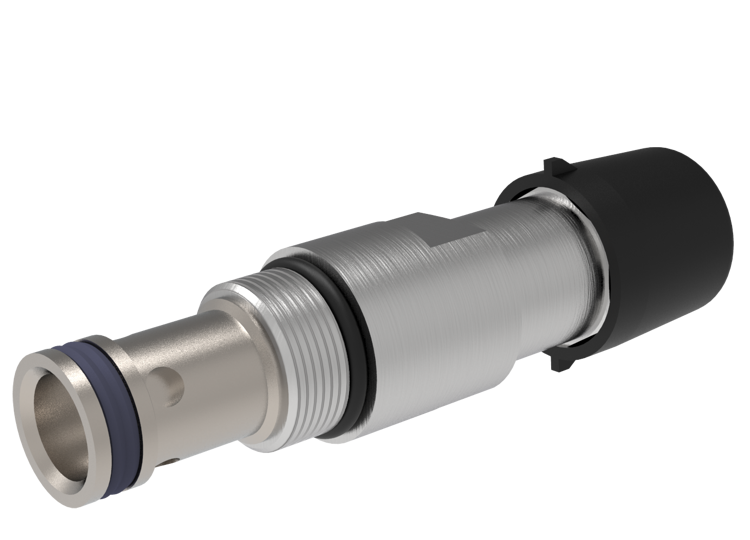

VPN2-10/S
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 150 (40) | 350 (5076) | M27x2 |
| Q max. l / min (GPM) | 150 (40) |
| P max. bar (PSI) | 350 (5076) |
| Size | M27x2 |

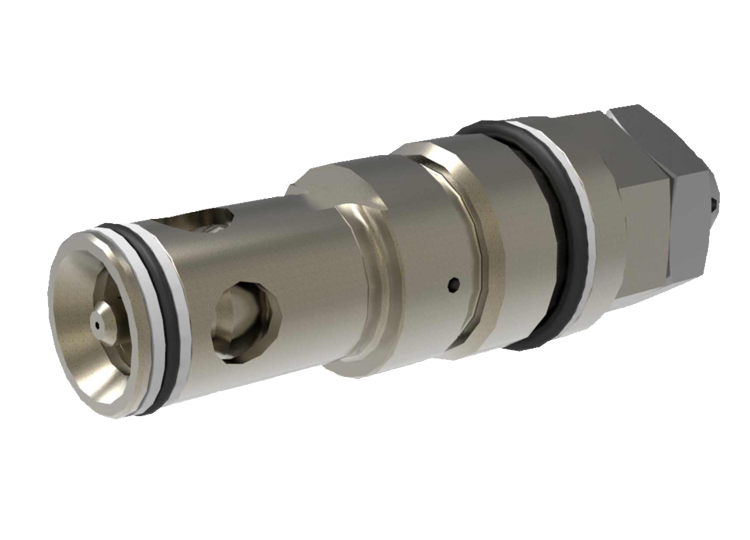

VPN1-20/S
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 250 (66) | 420 (6092) | M30x1.5 |
| Q max. l / min (GPM) | 250 (66) |
| P max. bar (PSI) | 420 (6092) |
| Size | M30x1.5 |
Pressure Relief Valves, Spool Type, Pilot Operated, Modular Design
Product-Variants

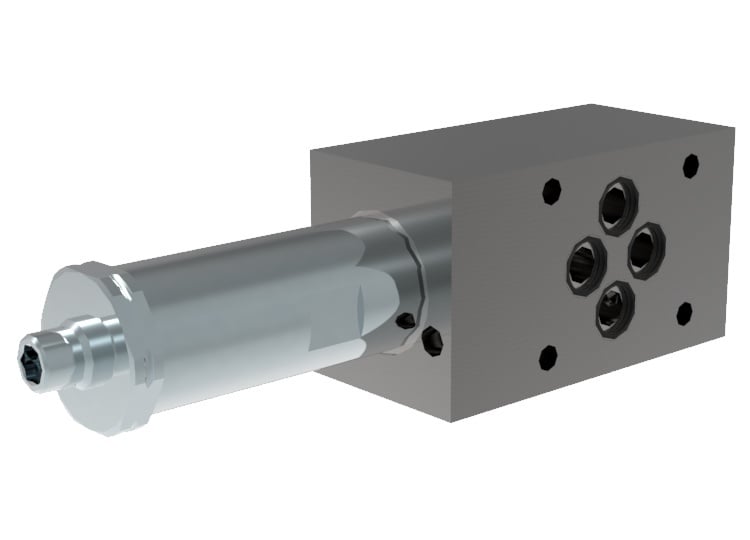

VPN1-06/M(R)
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 70 (18) | 320 (4641) | Size 04 (D02), 06 (D03) |
| Q max. l / min (GPM) | 70 (18) |
| P max. bar (PSI) | 320 (4641) |
| Size | Size 04 (D02), 06 (D03) |

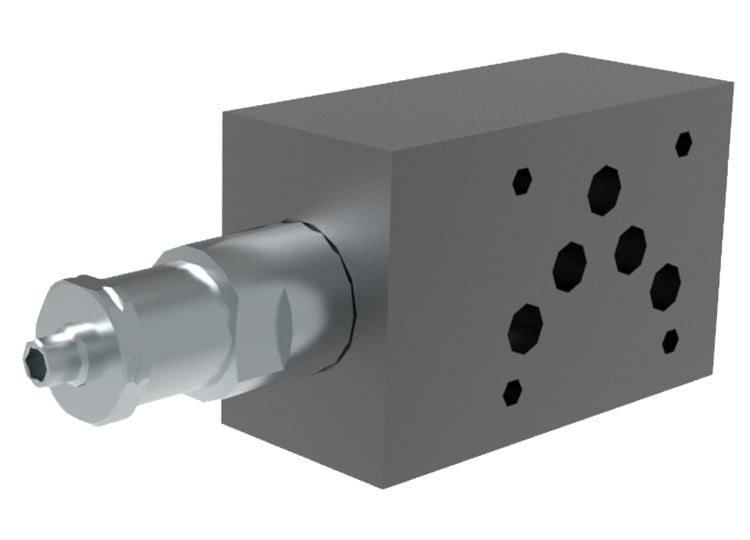

VPN2-10/M(R)
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 150 (40) | 350 (5076) | Size 10 (D05) |
| Q max. l / min (GPM) | 150 (40) |
| P max. bar (PSI) | 350 (5076) |
| Size | Size 10 (D05) |
Pressure Reducing - Relieving Valves, Direct-Acting, Cartridges
Product-Variants

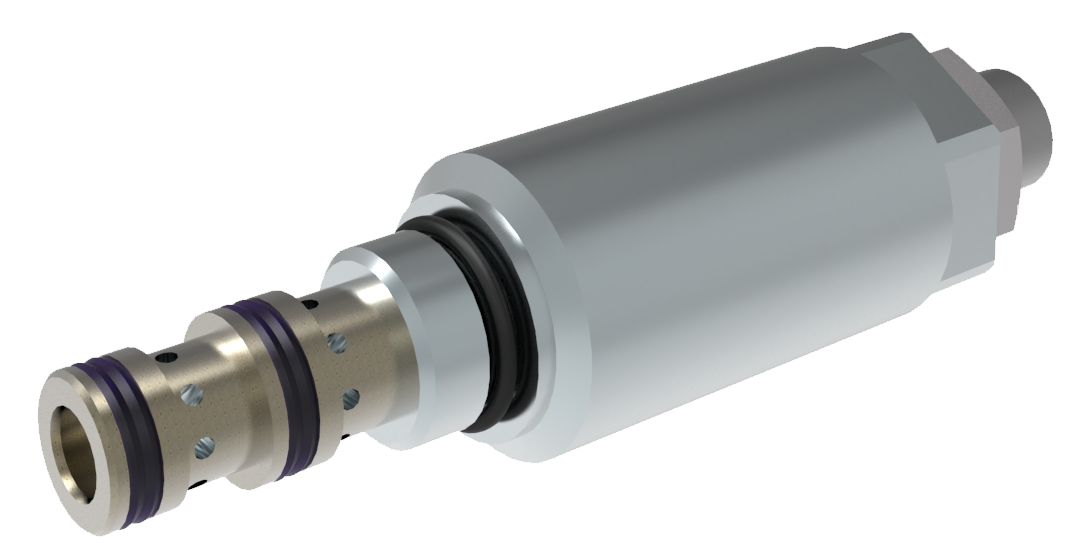

SP2A-A3/L
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 20 (5) | 350 (5076) | 3/4-16 UNF |
| Q max. l / min (GPM) | 20 (5) |
| P max. bar (PSI) | 350 (5076) |
| Size | 3/4-16 UNF |

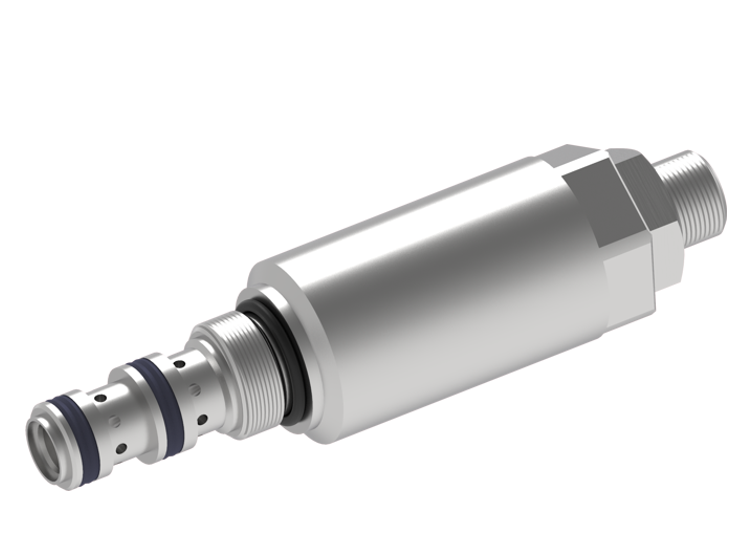

SP2A-A3/H
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 20 (5) | 350 (5076) | 3/4-16 UNF |
| Q max. l / min (GPM) | 20 (5) |
| P max. bar (PSI) | 350 (5076) |
| Size | 3/4-16 UNF |

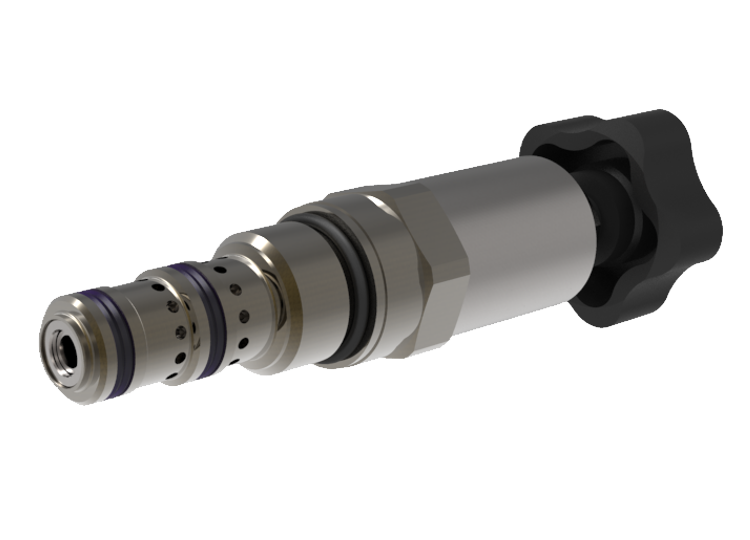

SP2A-B3/H
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 60 (16) | 420 (6092) | 7/8-14 UNF |
| Q max. l / min (GPM) | 60 (16) |
| P max. bar (PSI) | 420 (6092) |
| Size | 7/8-14 UNF |
Pressure Reducing - Relieving Valves, Direct-Acting, Modular Design
Product-Variants

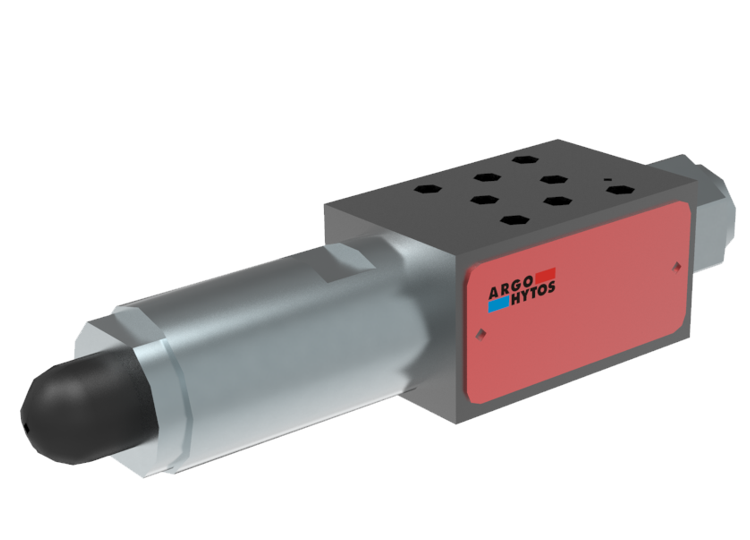

VRP2-04
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 20 (5) | 320 (4641) | Size 04 (D02) |
| Q max. l / min (GPM) | 20 (5) |
| P max. bar (PSI) | 320 (4641) |
| Size | Size 04 (D02) |

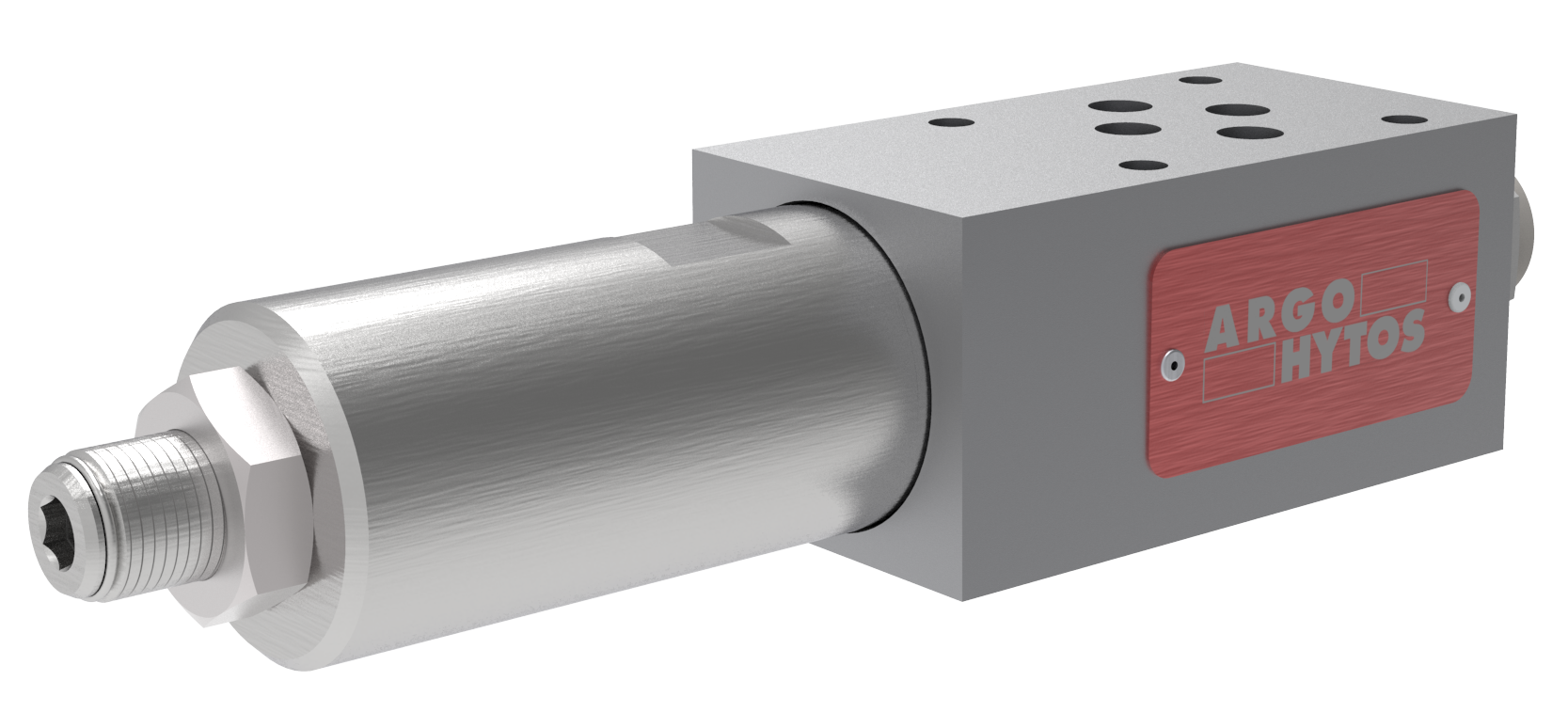

VRP2-06
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 50 (13) | 350 (5076) | Size 06 (D03) |
| Q max. l / min (GPM) | 50 (13) |
| P max. bar (PSI) | 350 (5076) |
| Size | Size 06 (D03) |
Pressure Reducing - Relieving Valves, Pilot Operated, Cartridges
Product-Variants

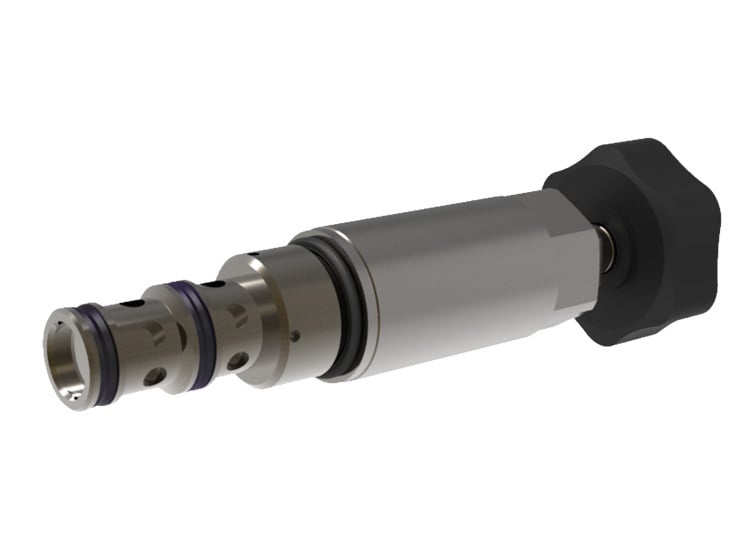

SP4A-B3
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 60 (16) | 350 (5076) | 7/8-14 UNF |
| Q max. l / min (GPM) | 60 (16) |
| P max. bar (PSI) | 350 (5076) |
| Size | 7/8-14 UNF |

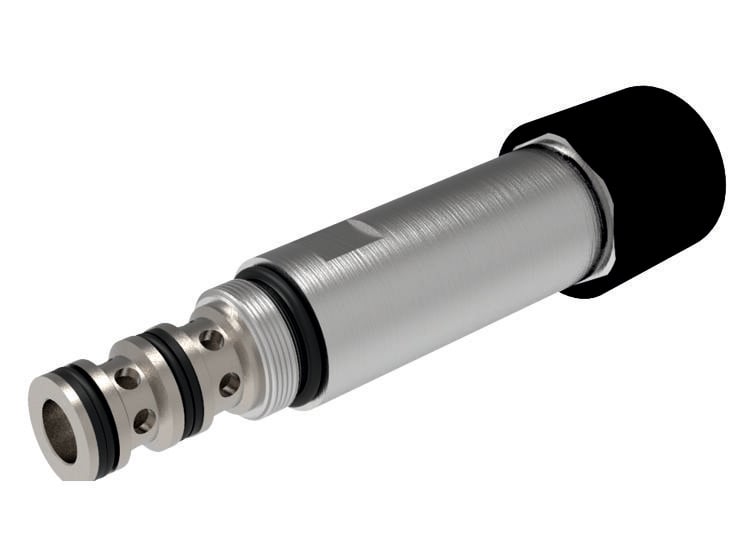

VRN2-06/S
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 40 (11) | 320 (4641) | M22x1.5 |
| Q max. l / min (GPM) | 40 (11) |
| P max. bar (PSI) | 320 (4641) |
| Size | M22x1.5 |

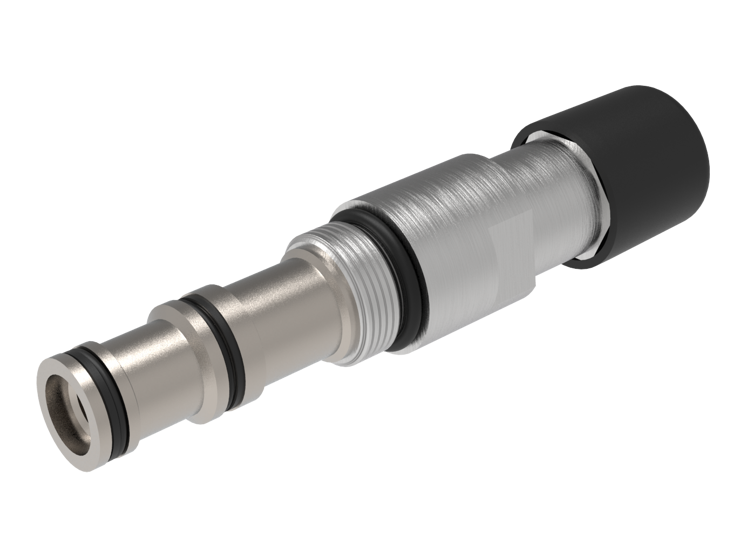

VRN2-10/S
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 150 (40) | 320 (4641) | M27x2 |
| Q max. l / min (GPM) | 150 (40) |
| P max. bar (PSI) | 320 (4641) |
| Size | M27x2 |
Pressure Reducing - Relieving Valves, Pilot Operated, Modular Design
Product-Variants

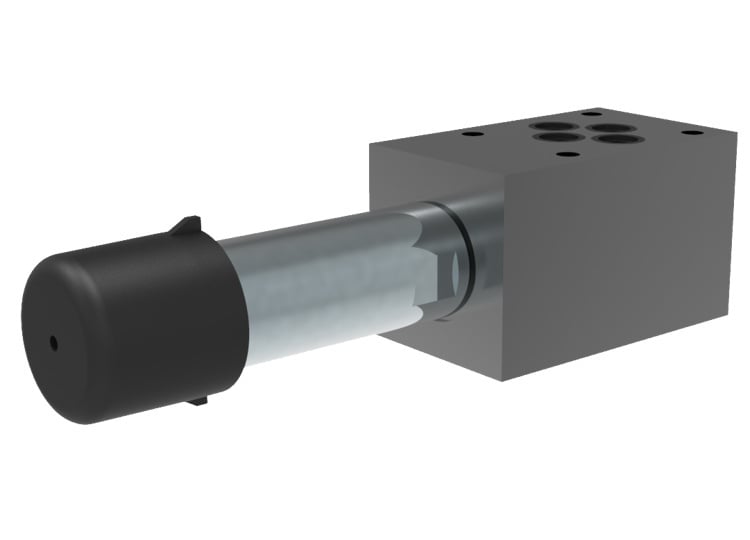

VRN2-06/M(R)
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 40 (11) | 320 (4641) | Size 06 (D03) |
| Q max. l / min (GPM) | 40 (11) |
| P max. bar (PSI) | 320 (4641) |
| Size | Size 06 (D03) |

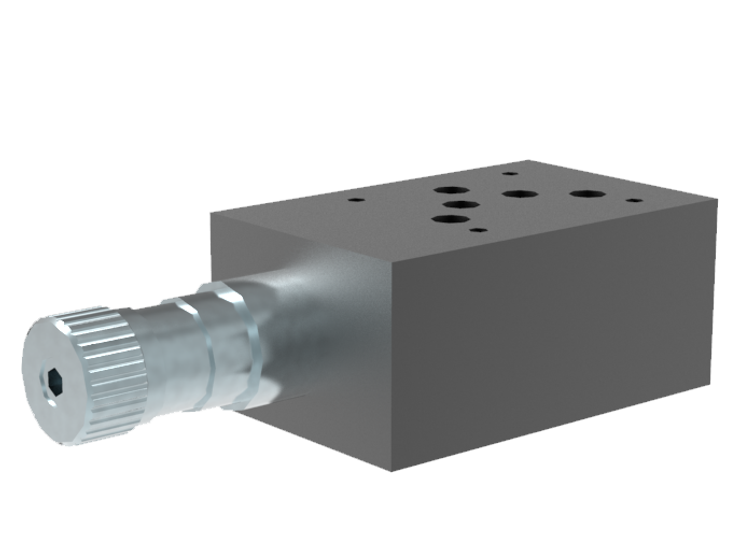

VRN2-10/M(R)
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 150 (40) | 320 (4641) | Size 10 (D05) |
| Q max. l / min (GPM) | 150 (40) |
| P max. bar (PSI) | 320 (4641) |
| Size | Size 10 (D05) |
Pressure Relief Solenoid-Operated On/Off Valves, Direct-Acting, Cartridges
Product-Variants

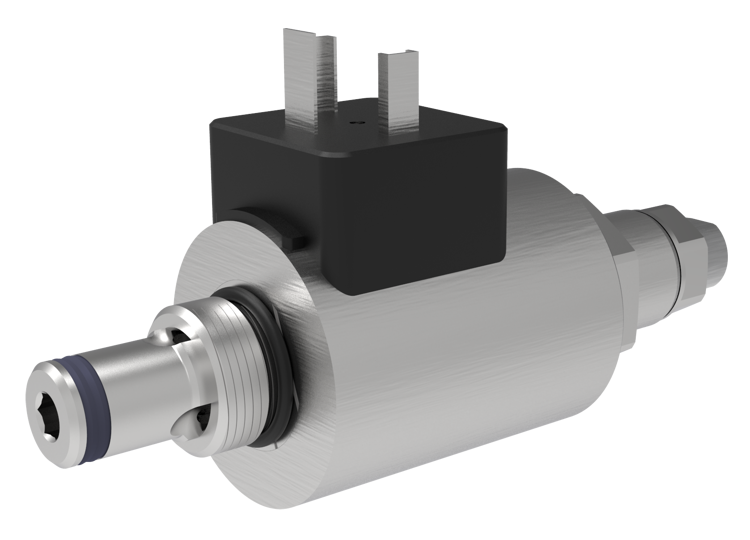

SR1E2-A2
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 1.5 (0) | 350 (5076) | 3/4-16 UNF |
| Q max. l / min (GPM) | 1.5 (0) |
| P max. bar (PSI) | 350 (5076) |
| Size | 3/4-16 UNF |
Modular cartridge for B2 (C-10-2), C2 (VC12-2) and B3 (C-10-3) cavities
| Size |
|---|
| B2 (C-10-2) B3 (C-10-3) C2 (VC12-2) |
| Size | B2 (C-10-2) B3 (C-10-3) C2 (VC12-2) |
Pressure Relief Solenoid-Operated On/Off Valves, Piloted, Cartridges
Product-Variants

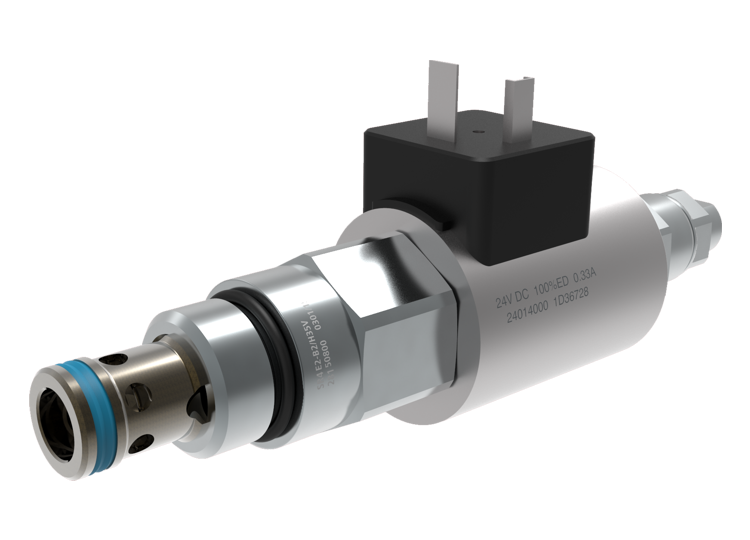

SR4E2-B2
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 80 (21) | 350 (5076) | 7/8-14 UNF |
| Q max. l / min (GPM) | 80 (21) |
| P max. bar (PSI) | 350 (5076) |
| Size | 7/8-14 UNF |

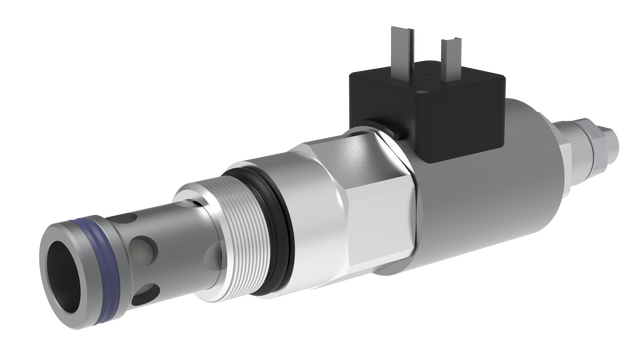

SR4E2-C2
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 180 (48) | 350 (5076) | 1 1/16-12 UN |
| Q max. l / min (GPM) | 180 (48) |
| P max. bar (PSI) | 350 (5076) |
| Size | 1 1/16-12 UN |
Pressure Reducing-Relieving Solenoid-Operated On/Off Valves, Piloted, Cartridges
Product-Variants

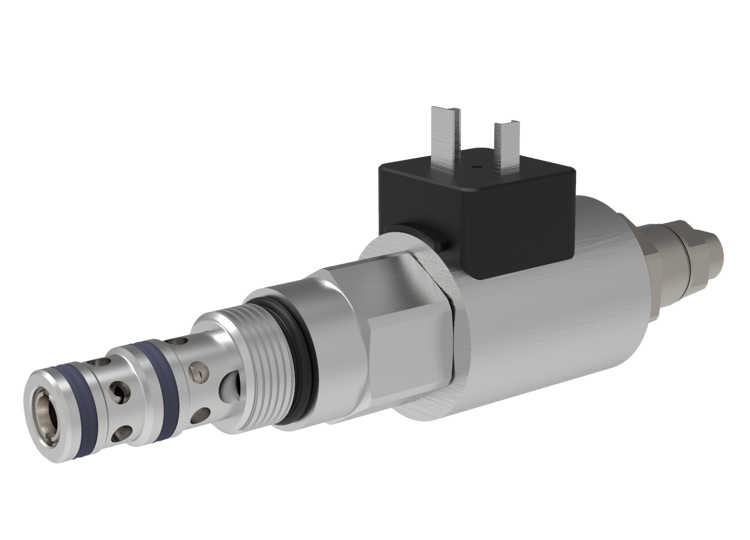

SP4E1-B3
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 60 (16) | 350 (5076) | 7/8-14 UNF |
| Q max. l / min (GPM) | 60 (16) |
| P max. bar (PSI) | 350 (5076) |
| Size | 7/8-14 UNF |
Modular cartridge for B2 (C-10-2), C2 (VC12-2) and B3 (C-10-3) cavities
| Size |
|---|
| B2 (C-10-2) B3 (C-10-3) C2 (VC12-2) |
| Size | B2 (C-10-2) B3 (C-10-3) C2 (VC12-2) |
Pressure Relief Valves with Reverse Flow Check
Product-Variants

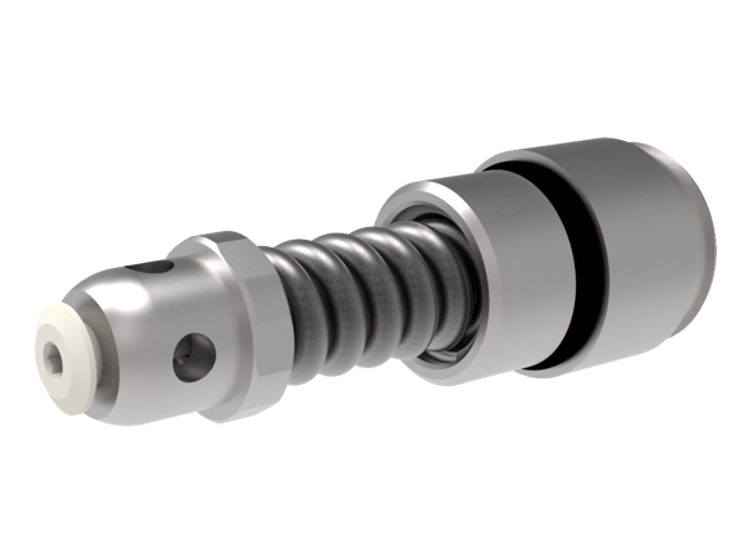

DBV3
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 200 (53) | 480 (6962) | M24x1.5 |
| Q max. l / min (GPM) | 200 (53) |
| P max. bar (PSI) | 480 (6962) |
| Size | M24x1.5 |
Sequence Valves
Product-Variants

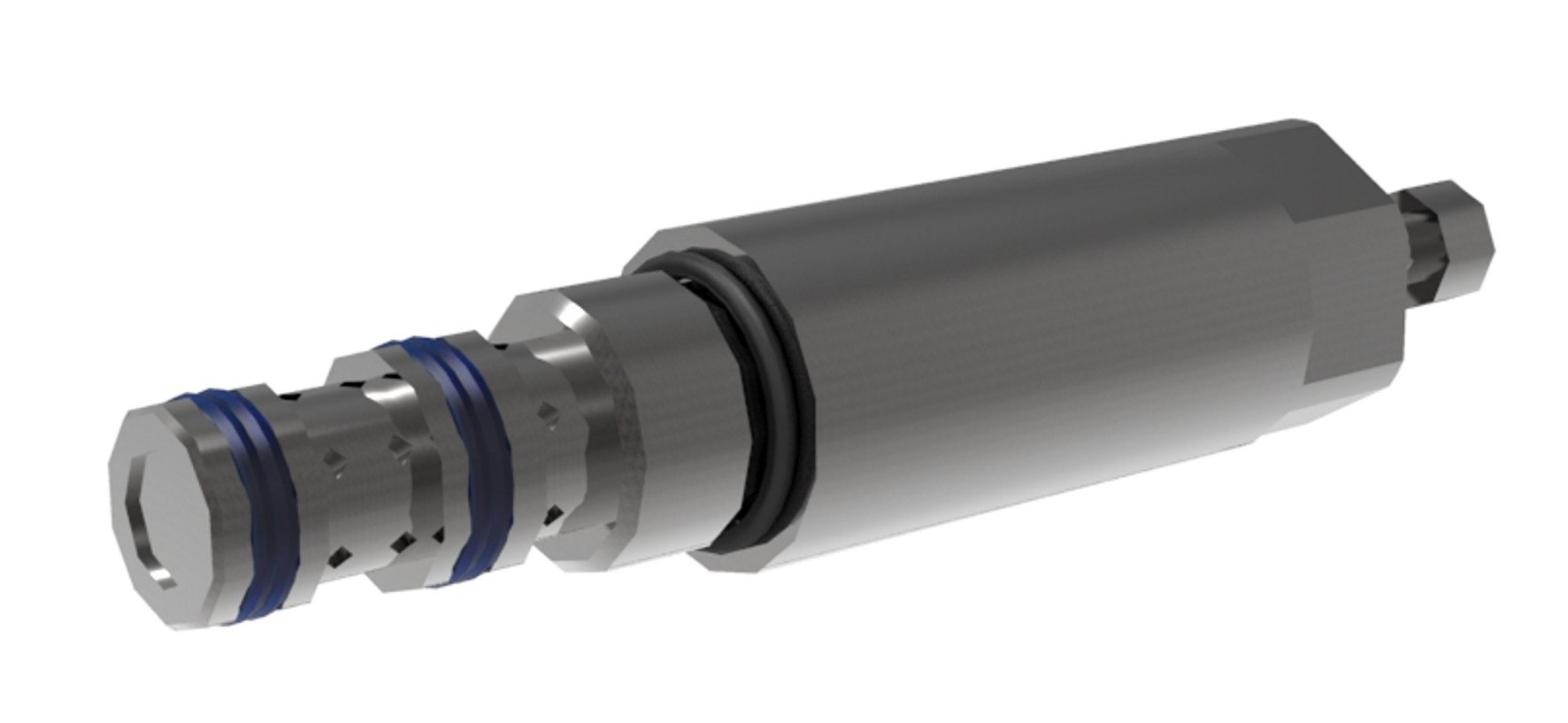

SS4A-A3
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 30 (8) | 350 (5076) | 3/4-16 UNF |
| Q max. l / min (GPM) | 30 (8) |
| P max. bar (PSI) | 350 (5076) |
| Size | 3/4-16 UNF |

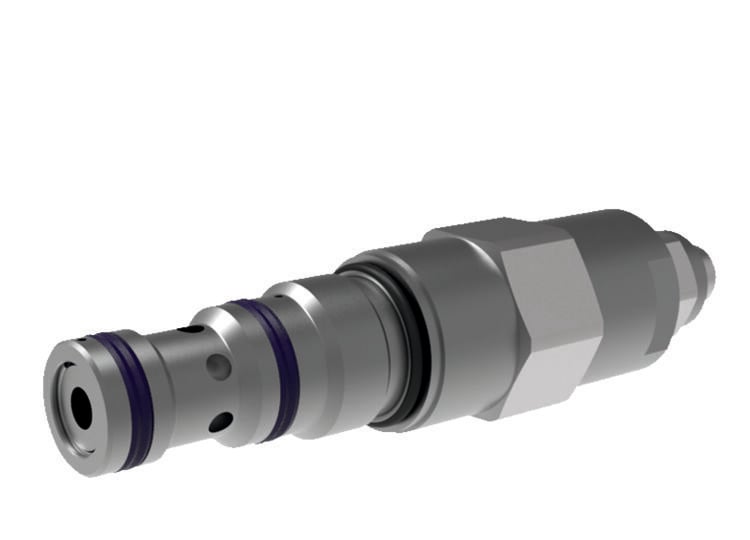

SS3A-BP3
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 40 (11) | 420 (6092) | 7/8-14 UNF |
| Q max. l / min (GPM) | 40 (11) |
| P max. bar (PSI) | 420 (6092) |
| Size | 7/8-14 UNF |
