Logic Valves
Depending on the type of logic valve and the way it is applied in the hydraulic circuit, logic valves make it possible to control pressure, flow and flow direction, even in applications where flow values exceed the limits of conventional cartridge valves. Logic valves can be used as a pressure compensator, a pilot operated pressure valve or a pilot operated directional control valve, reducing the size, cost and complexity imposed on hydraulic blocks.
General Technical Information
Find more detailed information on page 5, chapter 3.1.7.
Show:
Products shown:
2
/Valves/Logic%20valves/Logic%20Valves,%20Spool%20Type,%20Normally%20Open,%20Cartridge/SL2H-BP3_H2I11/SL2H-BP3_11_web.jpg?width=750&height=540&name=SL2H-BP3_11_web.jpg)
Logic Valves, Spool Type, Normally Open, Cartridge
Product-Variants
SL2H-BP3/H2I11
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 80 (21) | 350 (5076) | 7/8-14 UNF |
| Q max. l / min (GPM) | 80 (21) |
| P max. bar (PSI) | 350 (5076) |
| Size | 7/8-14 UNF |
SL2H-CP3/H2I11
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 120 (32) | 350 (5076) | 1 1/16-12 UN |
| Q max. l / min (GPM) | 120 (32) |
| P max. bar (PSI) | 350 (5076) |
| Size | 1 1/16-12 UN |

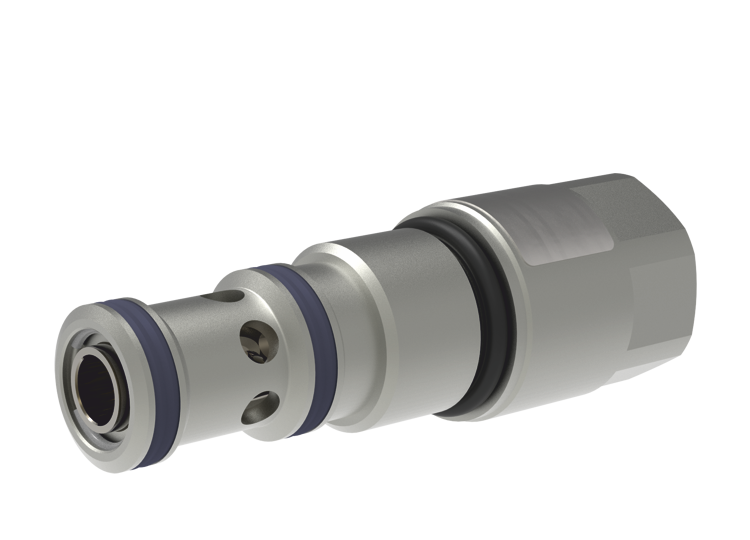

Logic Valves, Spool Type, Normally Closed, Cartridge
Product-Variants
SL2H-BP3/H2I12
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 80 (21) | 350 (5076) | 7/8-14 UNF |
| Q max. l / min (GPM) | 80 (21) |
| P max. bar (PSI) | 350 (5076) |
| Size | 7/8-14 UNF |
SL2H-CP3/H2I12
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 120 (32) | 350 (5076) | 1 1/16-12 UN |
| Q max. l / min (GPM) | 120 (32) |
| P max. bar (PSI) | 350 (5076) |
| Size | 1 1/16-12 UN |
