Directional Control Valves
The valves enable flow direction control of fluid in a hydraulic circuit and both control of the direction of movement or (shutting off) stopping of their appliances. In addition to solenoid operated valves, valves are also operated mechanically by lever or cam, hydraulically or pneumatically. Pilot operated directional control valves are designed to achieve a high flow rate of up to 600 l / min. Poppet type valves are known for their extremely low internal volume loss.
General Technical Information
Find more detailed information on page 5, chapter 3.1.1.
Show:
Products shown:
19
4/2 and 4/3 Directional Control Valves, Manually Operated
Product-Variants

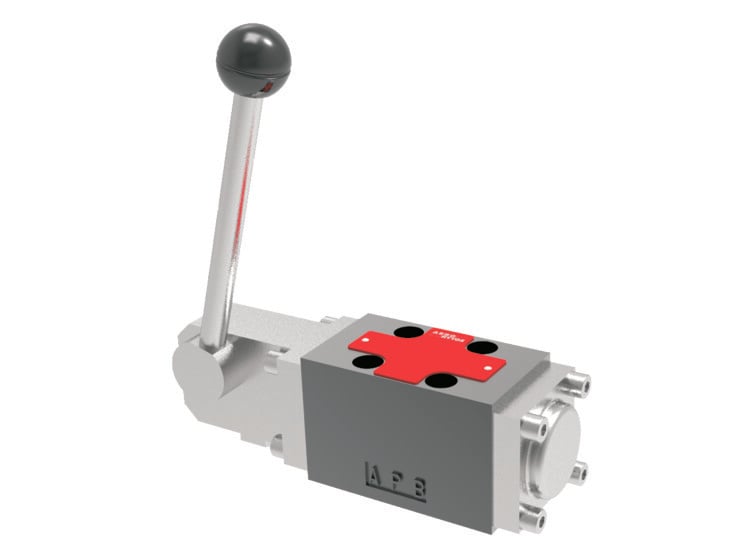

RPR3-04
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 30 (8) | 320 (4641) | Size 04 (D02) |
| Q max. l / min (GPM) | 30 (8) |
| P max. bar (PSI) | 320 (4641) |
| Size | Size 04 (D02) |

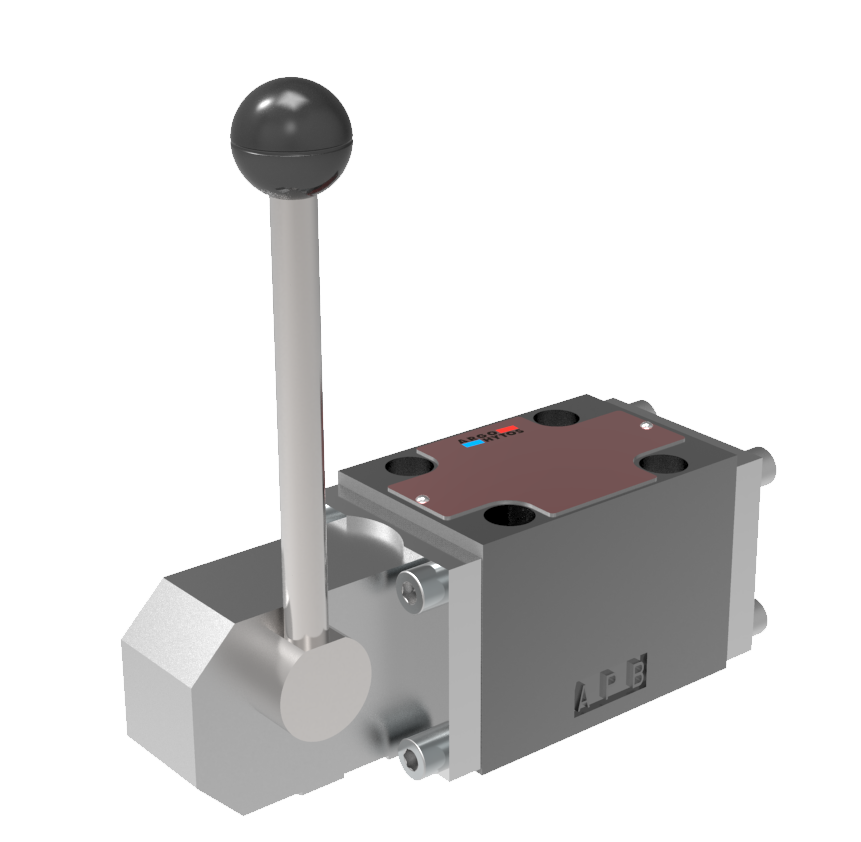

RPR3-06
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 80 (21) | 350 (5076) | Size 06 (D03) |
| Q max. l / min (GPM) | 80 (21) |
| P max. bar (PSI) | 350 (5076) |
| Size | Size 06 (D03) |
4/2 and 4/3 Directional Control Valves, Hydraulically and Pneumatically Operated
Product-Variants

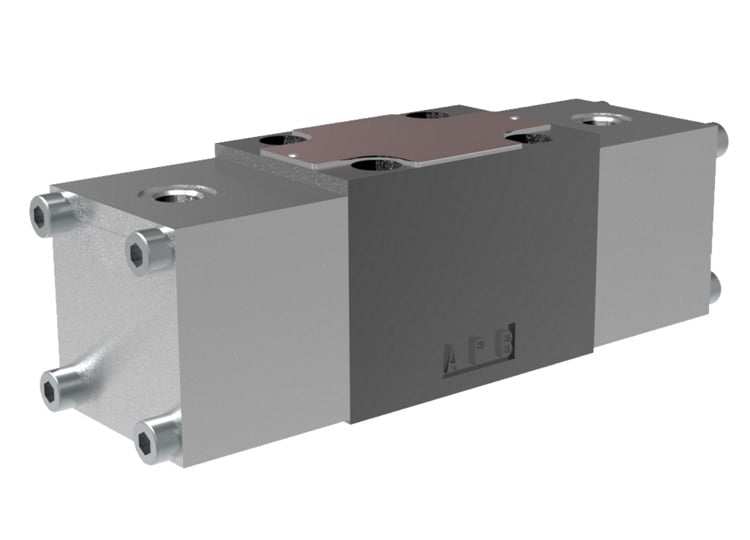

RPH2-06
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 80 (21) | 350 (5076) | Size 06 (D03) |
| Q max. l / min (GPM) | 80 (21) |
| P max. bar (PSI) | 350 (5076) |
| Size | Size 06 (D03) |

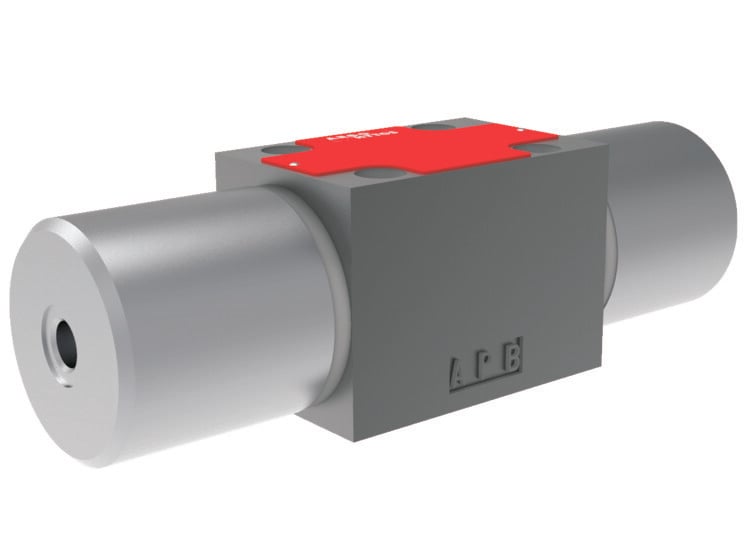

RPH3-06
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 80 (21) | 350 (5076) | Size 06 (D03) |
| Q max. l / min (GPM) | 80 (21) |
| P max. bar (PSI) | 350 (5076) |
| Size | Size 06 (D03) |
4/2 and 4/3 Solenoid Operated Directional Control Valves
Product-Variants

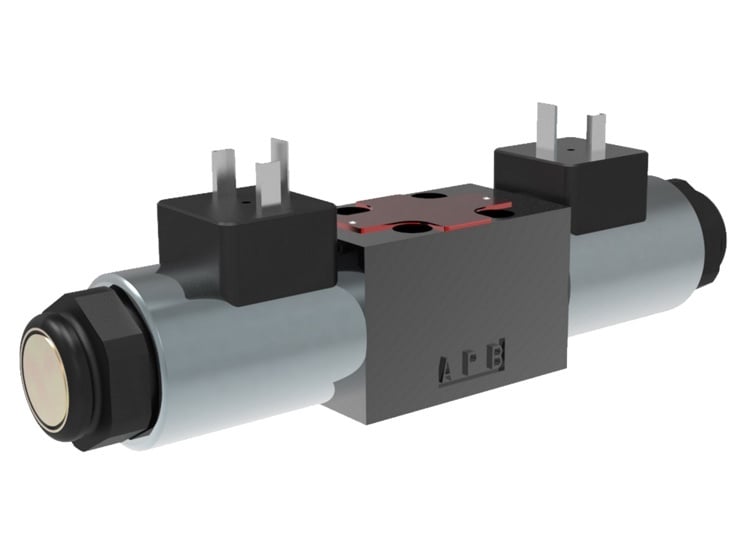

RPE3-04
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 30 (8) | 320 (4641) | Size 04 (D02) |
| Q max. l / min (GPM) | 30 (8) |
| P max. bar (PSI) | 320 (4641) |
| Size | Size 04 (D02) |
RPE3-06
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 80 (21) | 350 (5076) | Size 06 (D03) |
| Q max. l / min (GPM) | 80 (21) |
| P max. bar (PSI) | 350 (5076) |
| Size | Size 06 (D03) |

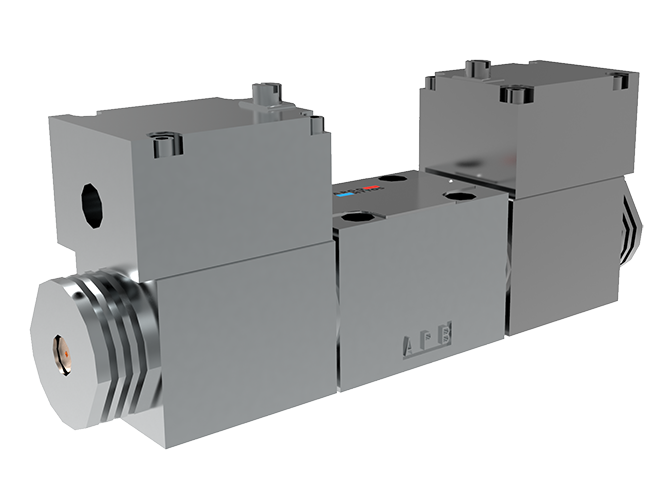

RPET3-06
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 60 (16) | 350 (5076) | Size 06 (D03) |
| Q max. l / min (GPM) | 60 (16) |
| P max. bar (PSI) | 350 (5076) |
| Size | Size 06 (D03) |

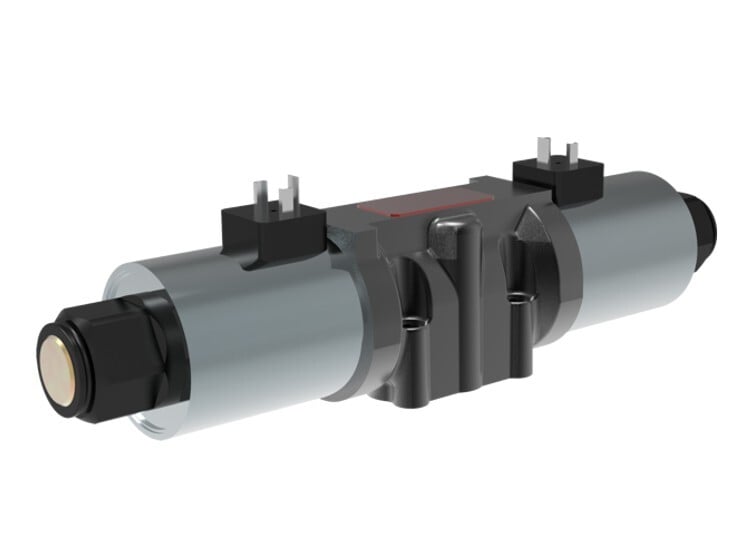

RPE4-10
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 140 (37) | 350 (5076) | Size 10 (D05) |
| Q max. l / min (GPM) | 140 (37) |
| P max. bar (PSI) | 350 (5076) |
| Size | Size 10 (D05) |
4/2 and 4/3 Solenoid operated Directional Control Valve with Auxiliary Lever Override
Product-Variants

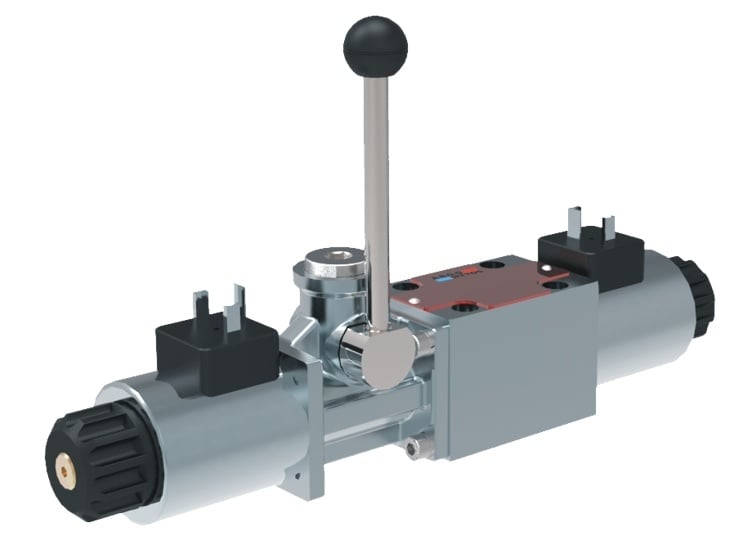

RPER3-06
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 80 (21) | 350 (5076) | Size 06 (D03) |
| Q max. l / min (GPM) | 80 (21) |
| P max. bar (PSI) | 350 (5076) |
| Size | Size 06 (D03) |
4/2 and 4/3 Solenoid Operated Directional Control Valves, Lightline
Product-Variants

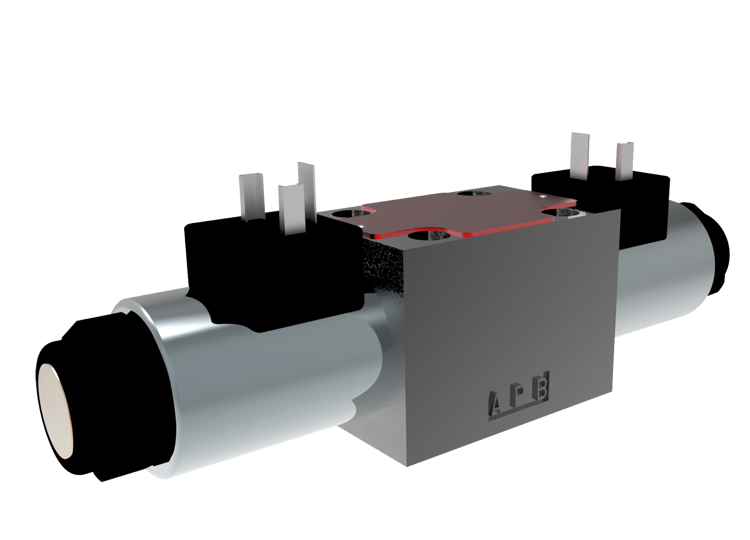

RPEL2-06
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 60 (16) | 320 (4641) | Size 06 (D03) |
| Q max. l / min (GPM) | 60 (16) |
| P max. bar (PSI) | 320 (4641) |
| Size | Size 06 (D03) |

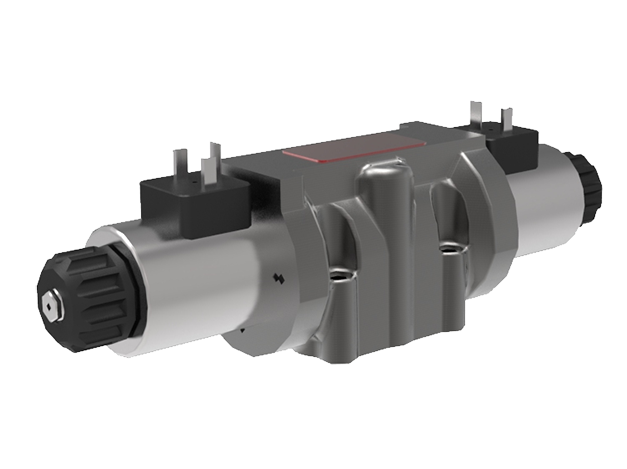

RPEL1-10
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 100 (26) | 250 (3626) | Size 10 (D05) |
| Q max. l / min (GPM) | 100 (26) |
| P max. bar (PSI) | 250 (3626) |
| Size | Size 10 (D05) |
4/2 and 4/3 Solenoid Operated Directional Control Valves with Spool Position Sensor
Product-Variants

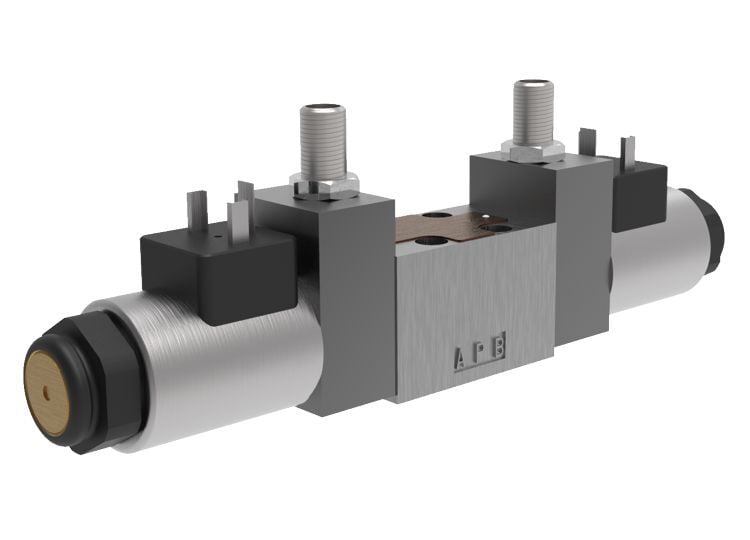

RPE3-04*S*
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 30 (8) | 320 (4641) | Size 04 (D02) |
| Q max. l / min (GPM) | 30 (8) |
| P max. bar (PSI) | 320 (4641) |
| Size | Size 04 (D02) |

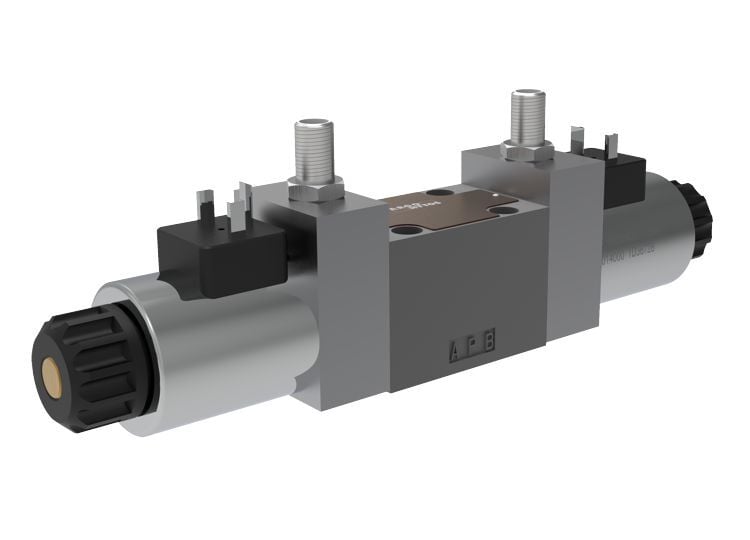

RPE3-06*S*
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 80 (21) | 350 (5076) | Size 06 (D03) |
| Q max. l / min (GPM) | 80 (21) |
| P max. bar (PSI) | 350 (5076) |
| Size | Size 06 (D03) |

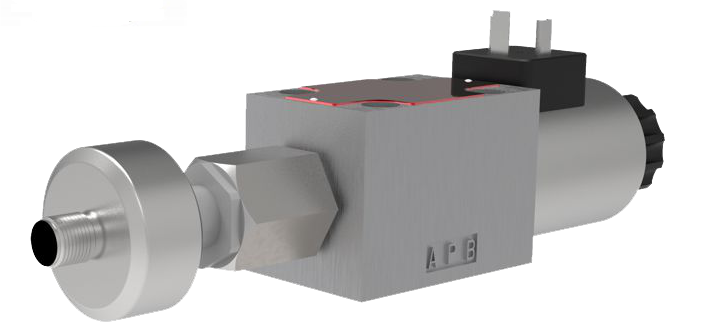

RPE3-062x/xS3
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 80 (21) | 350 (5076) | Size 06 (D03) |
| Q max. l / min (GPM) | 80 (21) |
| P max. bar (PSI) | 350 (5076) |
| Size | Size 06 (D03) |

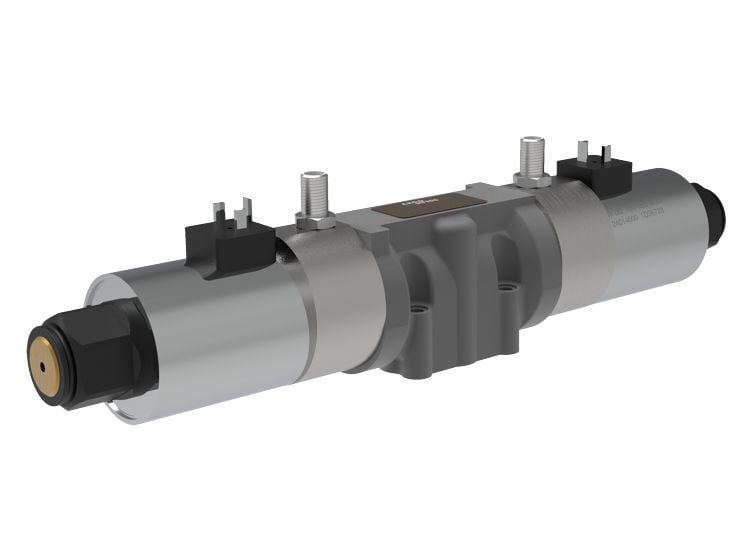

RPE4-10*S*
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 140 (37) | 350 (5076) | Size 10 (D05) |
| Q max. l / min (GPM) | 140 (37) |
| P max. bar (PSI) | 350 (5076) |
| Size | Size 10 (D05) |

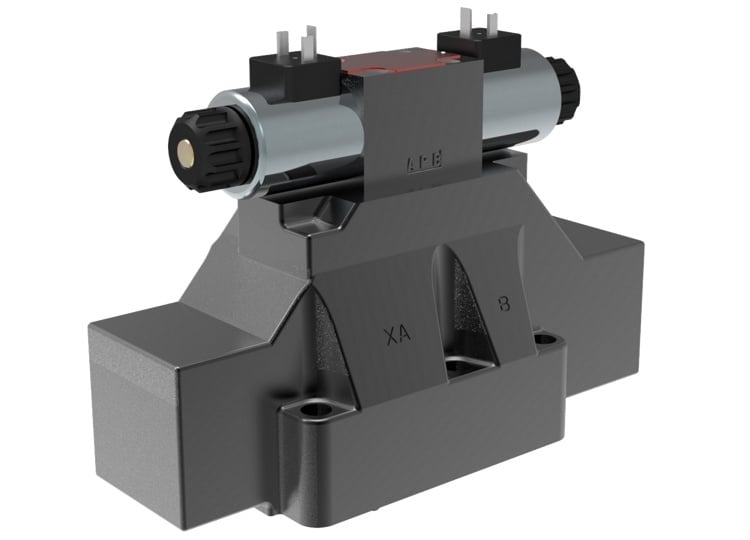

4/2 and 4/3 Directional Control Valves, Internally and Externally Pilot Operated
Product-Variants

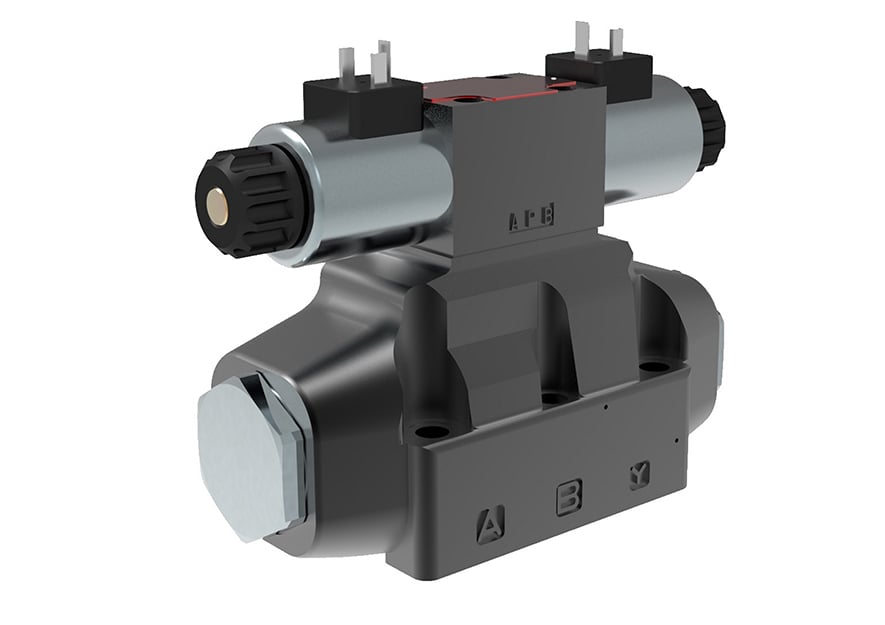

RNEH5-16
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 300 (79) | 420 (6092) | Size 16 (D07) |
| Q max. l / min (GPM) | 300 (79) |
| P max. bar (PSI) | 420 (6092) |
| Size | Size 16 (D07) |
RNEH4-25
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 600 (159) | 420 (6092) | Size 25 (D08) |
| Q max. l / min (GPM) | 600 (159) |
| P max. bar (PSI) | 420 (6092) |
| Size | Size 25 (D08) |
2/2 Directional Valves, Solenoid Operated, Spool Type, Screw-In Style
Product-Variants
SD2E-A2
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 30 (8) | 350 (5076) | 3/4-16 UNF |
| Q max. l / min (GPM) | 30 (8) |
| P max. bar (PSI) | 350 (5076) |
| Size | 3/4-16 UNF |
SD2E-B2
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 55 (15) | 350 (5076) | 7/8-14 UNF |
| Q max. l / min (GPM) | 55 (15) |
| P max. bar (PSI) | 350 (5076) |
| Size | 7/8-14 UNF |
3/2 Directional Valves, Solenoid Operated, Spool Type, Screw-In and Slip-In Style
Product-Variants

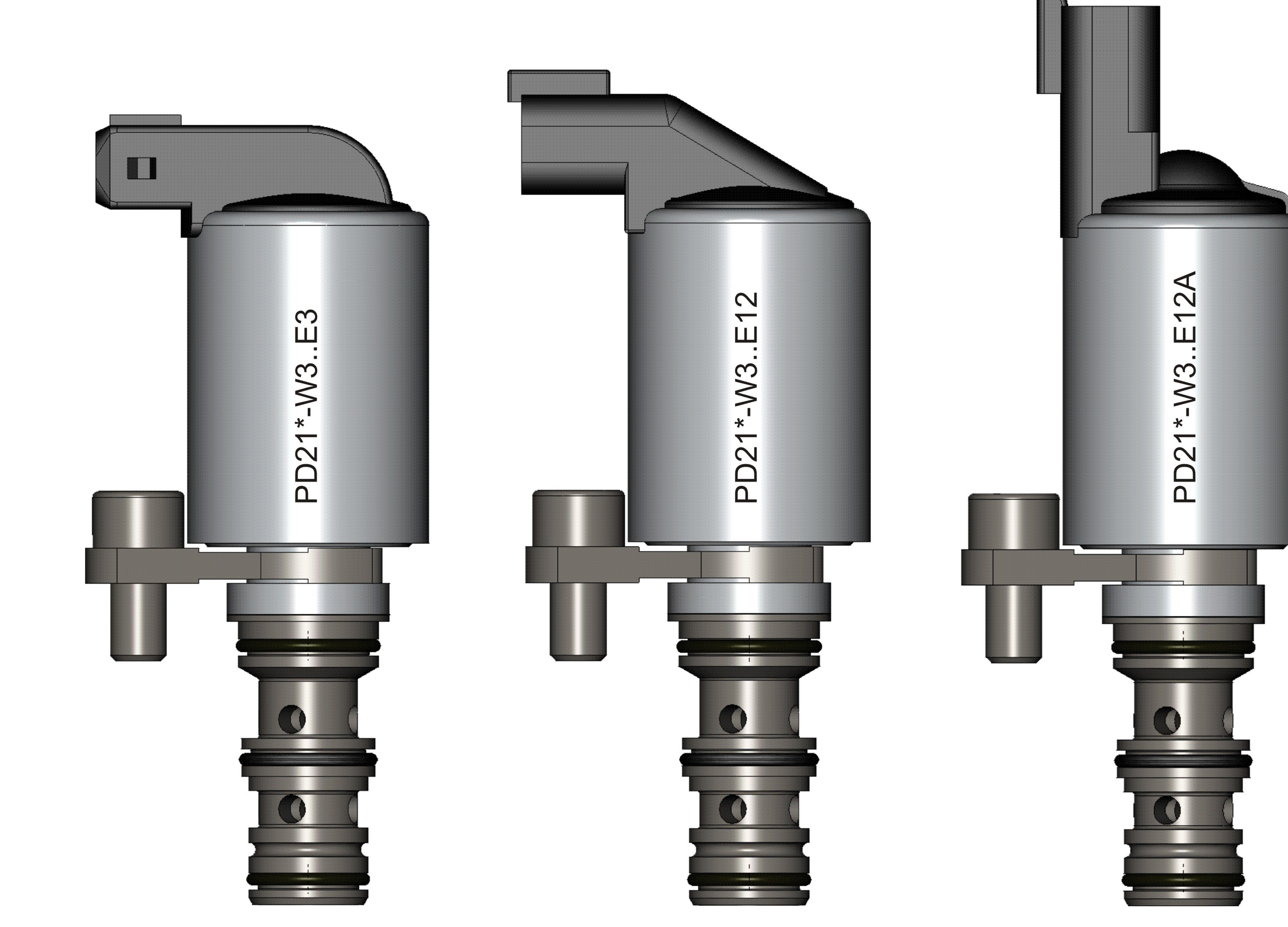

PD2E1
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 30 (8) | 80 (1160) | D17 D20 |
| Q max. l / min (GPM) | 30 (8) |
| P max. bar (PSI) | 80 (1160) |
| Size | D17 D20 |

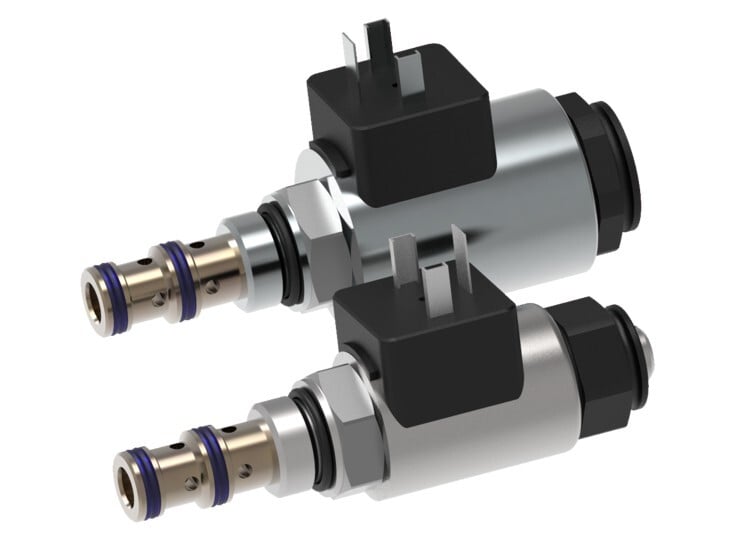

SD2E-A3
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 30 (8) | 350 (5076) | 3/4-16 UNF |
| Q max. l / min (GPM) | 30 (8) |
| P max. bar (PSI) | 350 (5076) |
| Size | 3/4-16 UNF |

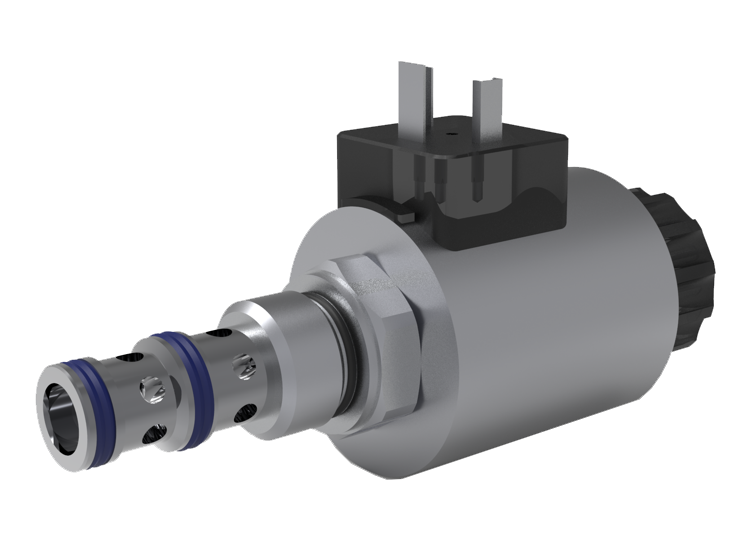

SD2E-B3
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 60 (16) | 350 (5076) | 7/8-14 UNF |
| Q max. l / min (GPM) | 60 (16) |
| P max. bar (PSI) | 350 (5076) |
| Size | 7/8-14 UNF |
4/2 Directional Valves, Solenoid Operated, Spool Type, Screw-In Style
Product-Variants

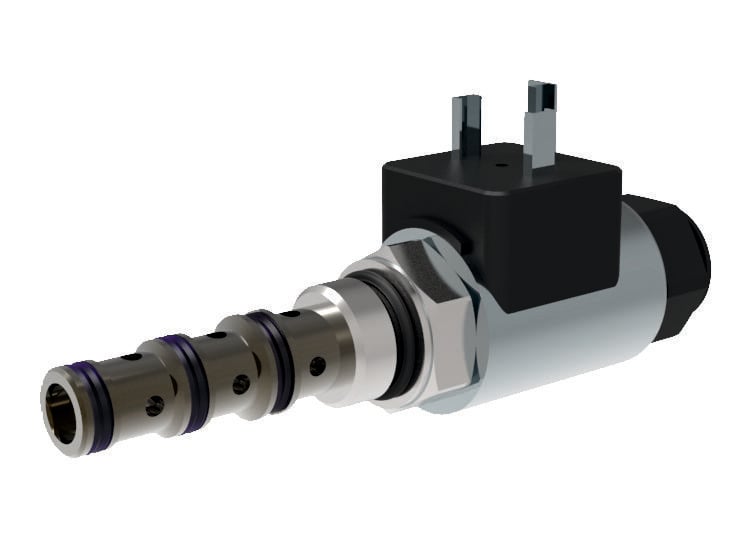

SD2E-A4
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 30 (8) | 350 (5076) | 3/4-16 UNF |
| Q max. l / min (GPM) | 30 (8) |
| P max. bar (PSI) | 350 (5076) |
| Size | 3/4-16 UNF |
SD2E-B4
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 50 (13) | 350 (5076) | 7/8-14 UNF |
| Q max. l / min (GPM) | 50 (13) |
| P max. bar (PSI) | 350 (5076) |
| Size | 7/8-14 UNF |
4/3 Directional Valves, Solenoid Operated, Spool Type, Screw-In Style
Product-Variants
SD2E-A4/H3
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 30 (8) | 350 (5076) | 3/4-16 UNF |
| Q max. l / min (GPM) | 30 (8) |
| P max. bar (PSI) | 350 (5076) |
| Size | 3/4-16 UNF |
2/2 Directional Valves, Solenoid Operated, Poppet Type, Screw-In Style
Product-Variants
ROE3-062S2
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 63 (17) | 250 (3626) | M22x1,5 |
| Q max. l / min (GPM) | 63 (17) |
| P max. bar (PSI) | 250 (3626) |
| Size | M22x1,5 |
SD3E-A2
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 30 (8) | 420 (6092) | 3/4-16 UNF |
| Q max. l / min (GPM) | 30 (8) |
| P max. bar (PSI) | 420 (6092) |
| Size | 3/4-16 UNF |

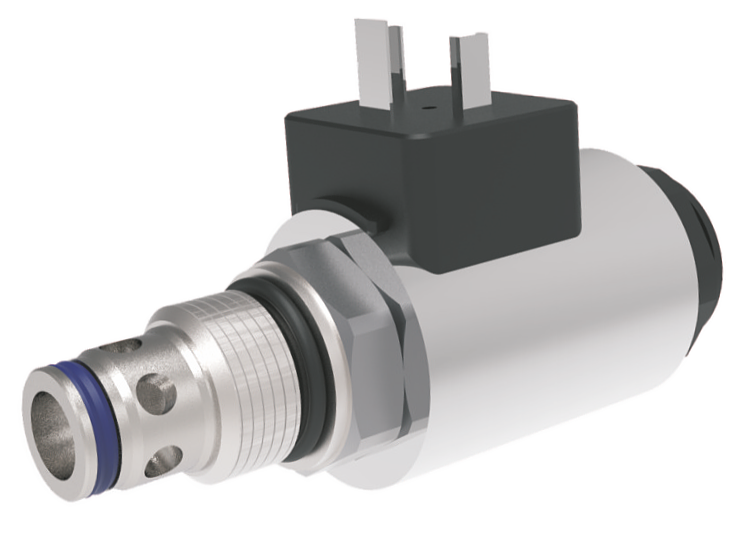

SD3E-B2
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 75 (20) | 420 (6092) | 7/8-14 UNF |
| Q max. l / min (GPM) | 75 (20) |
| P max. bar (PSI) | 420 (6092) |
| Size | 7/8-14 UNF |

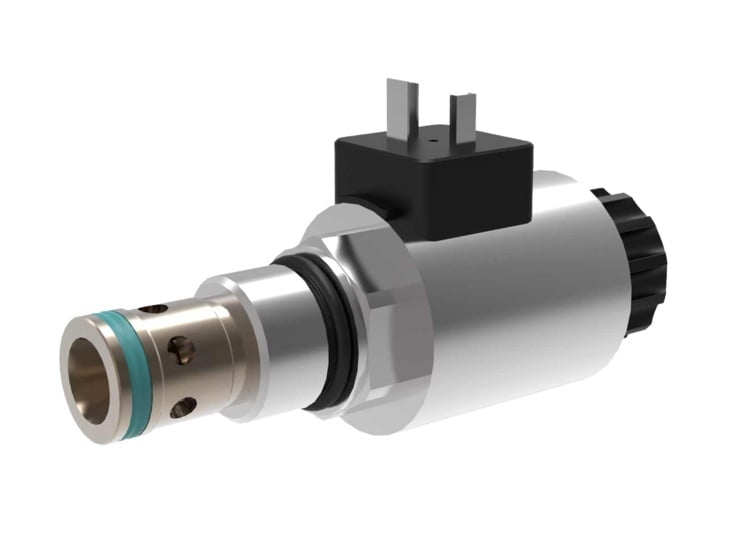

SD3E-C2*2O2(2L2)
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 150 (40) | 350 (5076) | 1-1/16-12 UN |
| Q max. l / min (GPM) | 150 (40) |
| P max. bar (PSI) | 350 (5076) |
| Size | 1-1/16-12 UN |
2/2 Directional Valves, Solenoid Operated, Poppet Type, Modular Design
Product-Variants
ROE3-062S2M
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 25 (7) | 250 (3626) | Size 04 (D02) Size 06 (D03) |
| Q max. l / min (GPM) | 25 (7) |
| P max. bar (PSI) | 250 (3626) |
| Size | Size 04 (D02) Size 06 (D03) |
2/2 Directional Valves, Solenoid Operated, Poppet Type, Blocking, Screw-In Style
Product-Variants
ROE3-042S5(S6)
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 25 (7) | 250 (3626) | M22x1,5 |
| Q max. l / min (GPM) | 25 (7) |
| P max. bar (PSI) | 250 (3626) |
| Size | M22x1,5 |
SD1E-A2
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 30 (8) | 350 (5076) | 3/4-16 UNF |
| Q max. l / min (GPM) | 30 (8) |
| P max. bar (PSI) | 350 (5076) |
| Size | 3/4-16 UNF |
SD3E-C2*S5(S6)
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 150 (40) | 350 (5076) | 1-1/16-12 UN |
| Q max. l / min (GPM) | 150 (40) |
| P max. bar (PSI) | 350 (5076) |
| Size | 1-1/16-12 UN |
2/2 Directional Valves, Solenoid Operated, Poppet Type, Blocking, Modular Design
Product-Variants

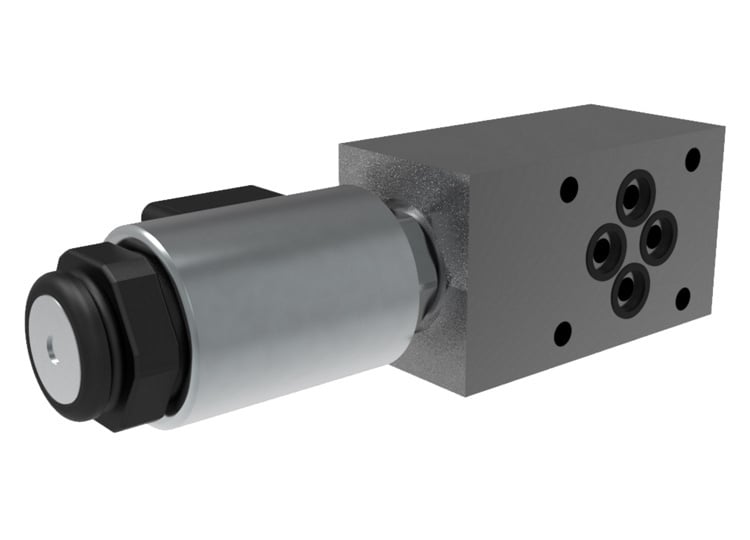

ROE3-042S5(S6)M
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 25 (7) | 250 (3626) | Size 04 (D02) Size 06 (D03) |
| Q max. l / min (GPM) | 25 (7) |
| P max. bar (PSI) | 250 (3626) |
| Size | Size 04 (D02) Size 06 (D03) |
3/2 Directional Valves, Solenoid Operated, Poppet Type, Blocking, Screw-In Style
Product-Variants
SD1E-A3
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 30 (8) | 350 (5076) | 3/4-16 UNF |
| Q max. l / min (GPM) | 30 (8) |
| P max. bar (PSI) | 350 (5076) |
| Size | 3/4-16 UNF |
2/2 Directional Valves, Manually Operated, Screw-In Style
Product-Variants
SD1M-A2
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 20 (5) | 250 (3626) | 3/4-16 UNF |
| Q max. l / min (GPM) | 20 (5) |
| P max. bar (PSI) | 250 (3626) |
| Size | 3/4-16 UNF |
ROR3-062
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 35 (9) | 320 (4641) | M22x1.5 |
| Q max. l / min (GPM) | 35 (9) |
| P max. bar (PSI) | 320 (4641) |
| Size | M22x1.5 |
2/2 and 3/2 Directional Valves, Hydraulically Operated, Screw-In Style
Product-Variants

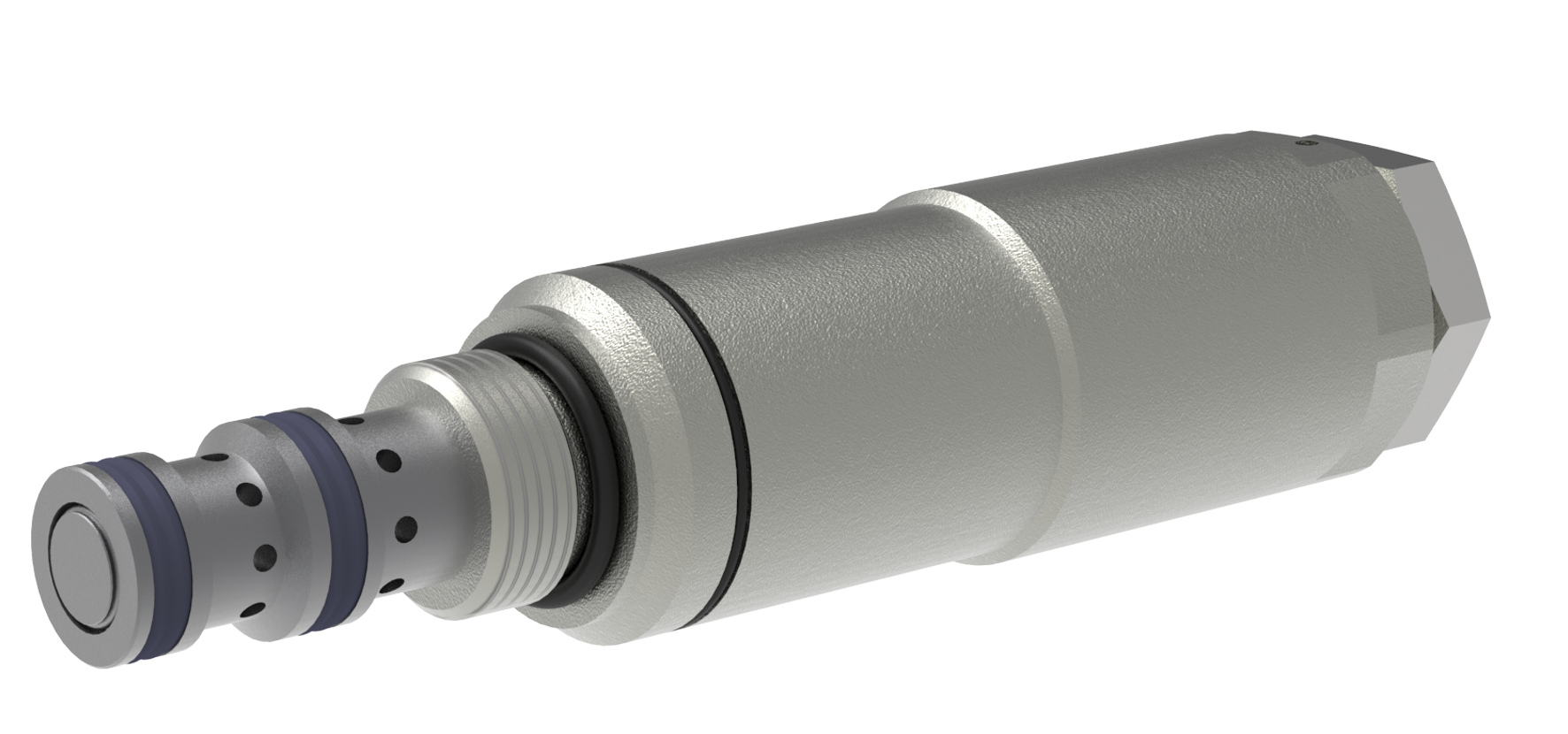

SD6H-AY3
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 30 (8) | 350 (5076) | 3/4-16 UNF |
| Q max. l / min (GPM) | 30 (8) |
| P max. bar (PSI) | 350 (5076) |
| Size | 3/4-16 UNF |

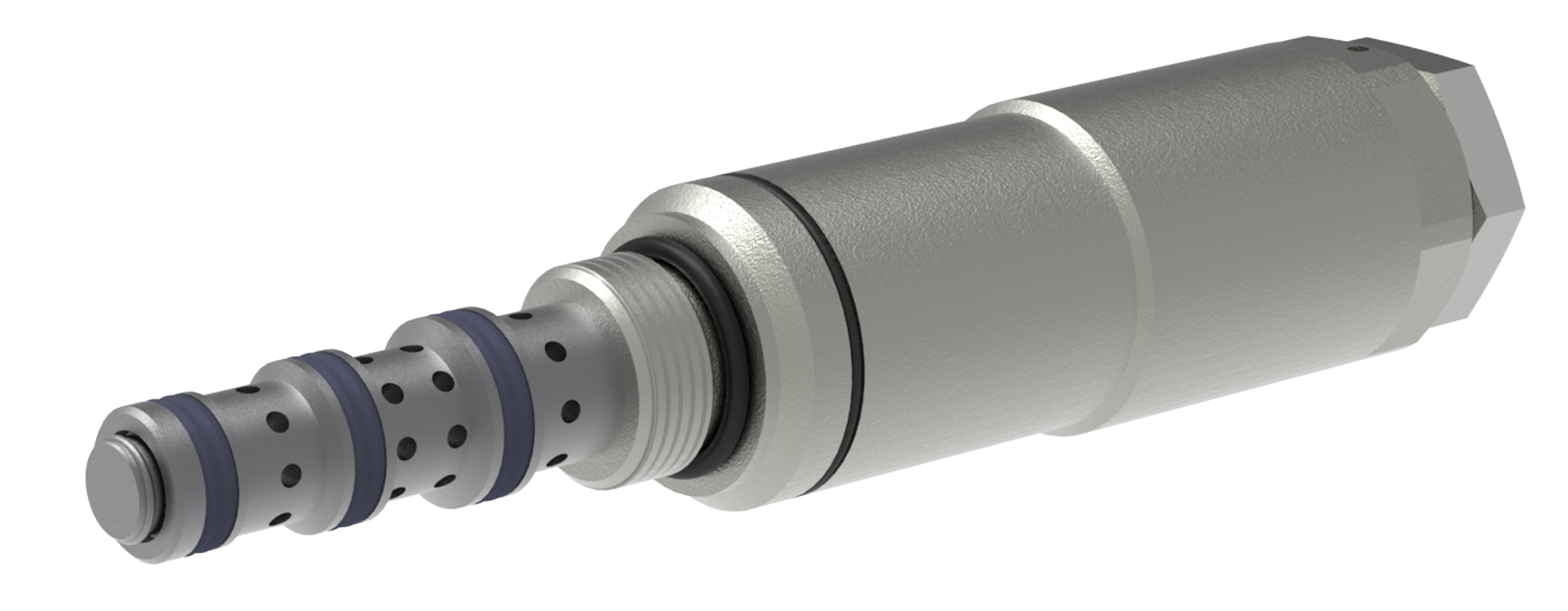

SD6H-AY4
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 30 (8) | 350 (5076) | 3/4-16 UNF |
| Q max. l / min (GPM) | 30 (8) |
| P max. bar (PSI) | 350 (5076) |
| Size | 3/4-16 UNF |
3/3 Hydraulically operated hot oil shuttle valve for hydrostatic drives, screw-in cartridge design
Product-Variants

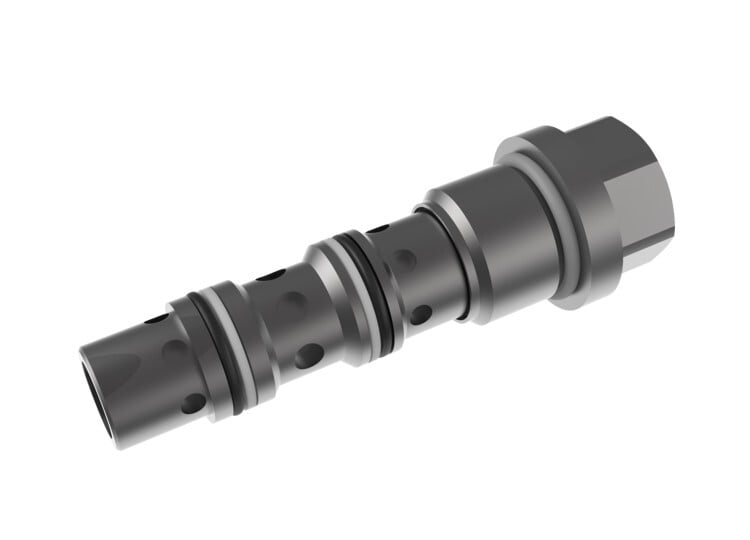

SD2H-LA3
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 40 (11) | 320 (4641) | M24x1.5 |
| Q max. l / min (GPM) | 40 (11) |
| P max. bar (PSI) | 320 (4641) |
| Size | M24x1.5 |
