Check Valves
The valves enable flow of the fluid in one direction only. They often protect the pump from a backflow of fluid caused by the load on the appliance. Control of the check valve ensures the position of the load when the pressure source is switched off. Logic valves connect circuit branches depending on the pressure range.
General Technical Information
Find more detailed information on page 8, chapter 3.1.2.
Show:
Products shown:
9
Logical 3 Way Check Valves
Product-Variants
SH1F-A3
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 20 (5) | 250 (3626) | 3/4-16 UNF |
| Q max. l / min (GPM) | 20 (5) |
| P max. bar (PSI) | 250 (3626) |
| Size | 3/4-16 UNF |
Load Shuttle Valves, Cartridges
Product-Variants

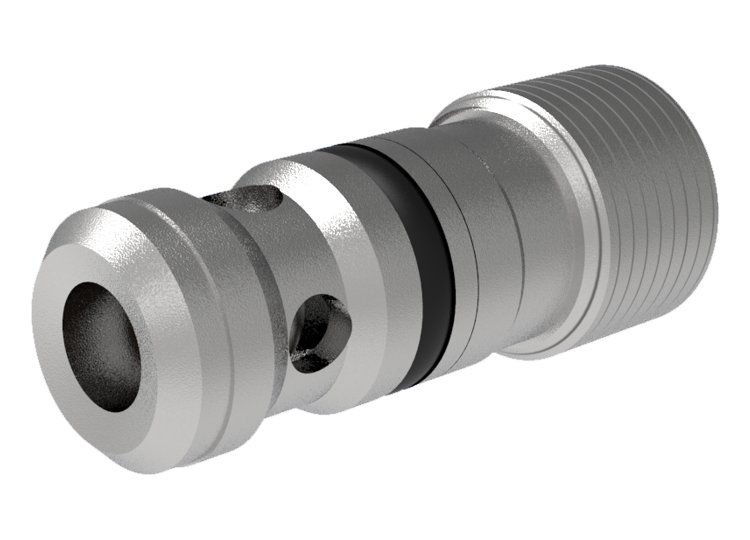

LV1-043
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 8 (2) | 500 (7252) | G1/8 |
| Q max. l / min (GPM) | 8 (2) |
| P max. bar (PSI) | 500 (7252) |
| Size | G1/8 |
LV2-043
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 8 (2) | 500 (7252) | M12x1.5 |
| Q max. l / min (GPM) | 8 (2) |
| P max. bar (PSI) | 500 (7252) |
| Size | M12x1.5 |

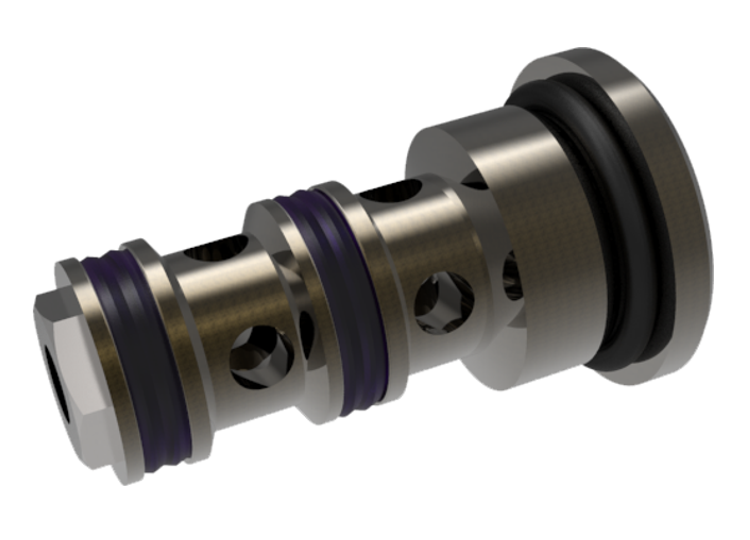

LV1-063/S
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 40 (11) | 320 (4641) | M22 x 1.5 |
| Q max. l / min (GPM) | 40 (11) |
| P max. bar (PSI) | 320 (4641) |
| Size | M22 x 1.5 |

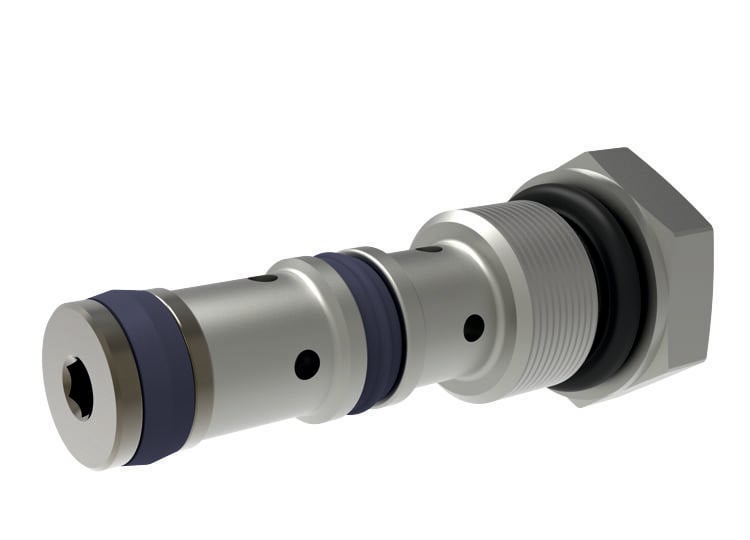

SQ1F-N3
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 5 (1) | 210 (3046) | 7/16-20 UNF |
| Q max. l / min (GPM) | 5 (1) |
| P max. bar (PSI) | 210 (3046) |
| Size | 7/16-20 UNF |
Load Shuttle Valves, Modular Design
Product-Variants

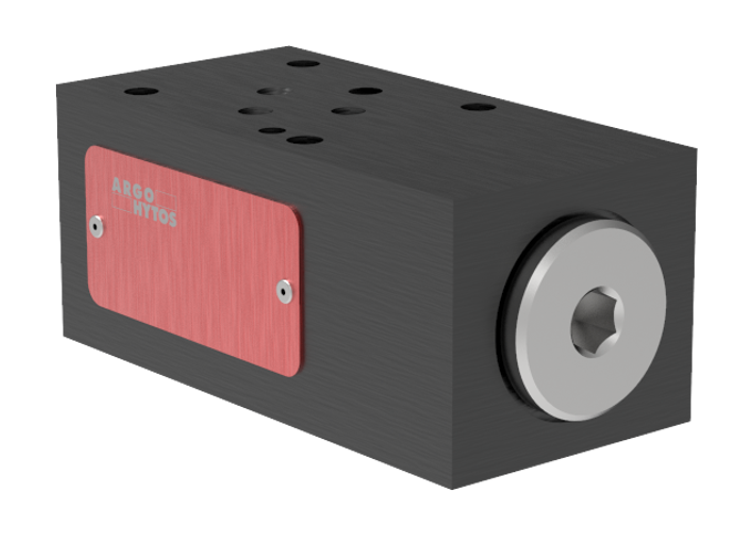

LV1-063/M
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 40 (11) | 320 (4641) | Size 06 (D03) |
| Q max. l / min (GPM) | 40 (11) |
| P max. bar (PSI) | 320 (4641) |
| Size | Size 06 (D03) |
Check Valves, Cartridges
Product-Variants

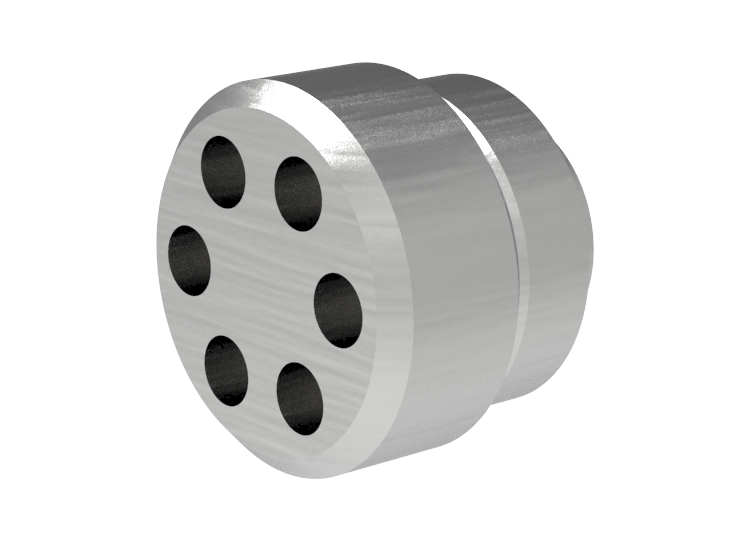

VJO1-06/S
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 20 (5) | 320 (4641) | Size 06 (D03) |
| Q max. l / min (GPM) | 20 (5) |
| P max. bar (PSI) | 320 (4641) |
| Size | Size 06 (D03) |

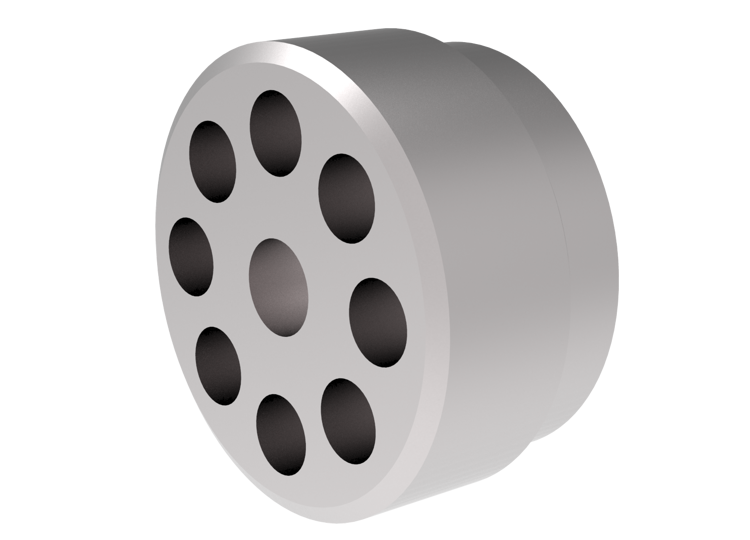

VJO1-10/S
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 80 (21) | 350 (5076) | Size 10 / M20x1.5 |
| Q max. l / min (GPM) | 80 (21) |
| P max. bar (PSI) | 350 (5076) |
| Size | Size 10 / M20x1.5 |

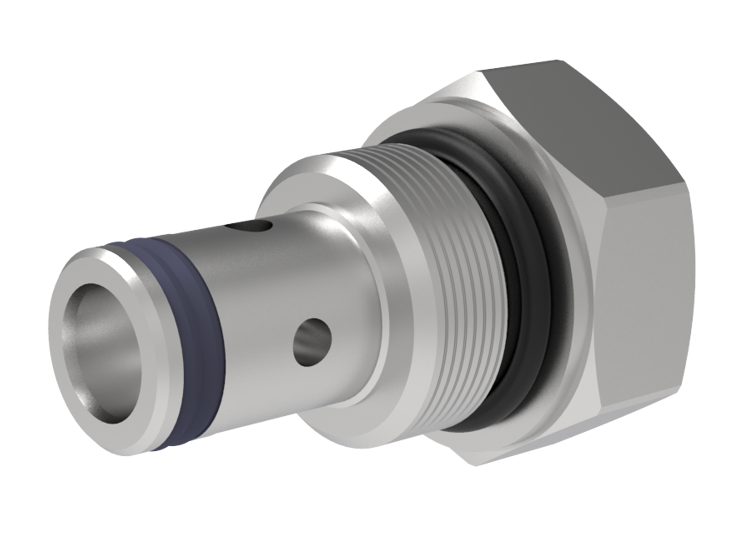

SC1F-A2
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 40 (11) | 420 (6092) | 3/4-16 UNF |
| Q max. l / min (GPM) | 40 (11) |
| P max. bar (PSI) | 420 (6092) |
| Size | 3/4-16 UNF |

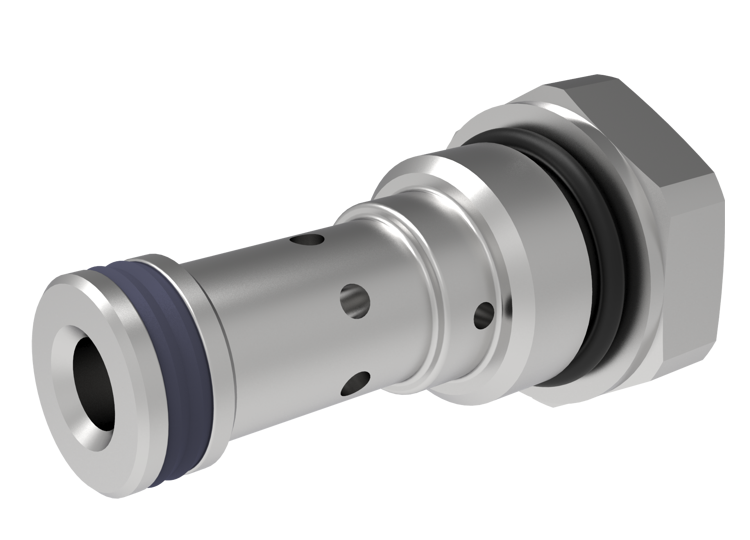

SC1F-A3
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 20 (5) | 350 (5076) | 3/4-16 UNF |
| Q max. l / min (GPM) | 20 (5) |
| P max. bar (PSI) | 350 (5076) |
| Size | 3/4-16 UNF |

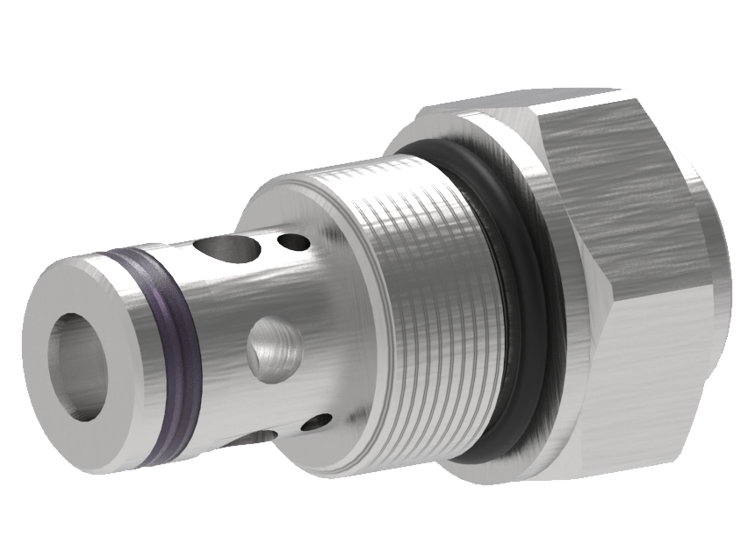

SC1F-B2
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 120 (32) | 420 (6092) | 7/8-14 UNF |
| Q max. l / min (GPM) | 120 (32) |
| P max. bar (PSI) | 420 (6092) |
| Size | 7/8-14 UNF |

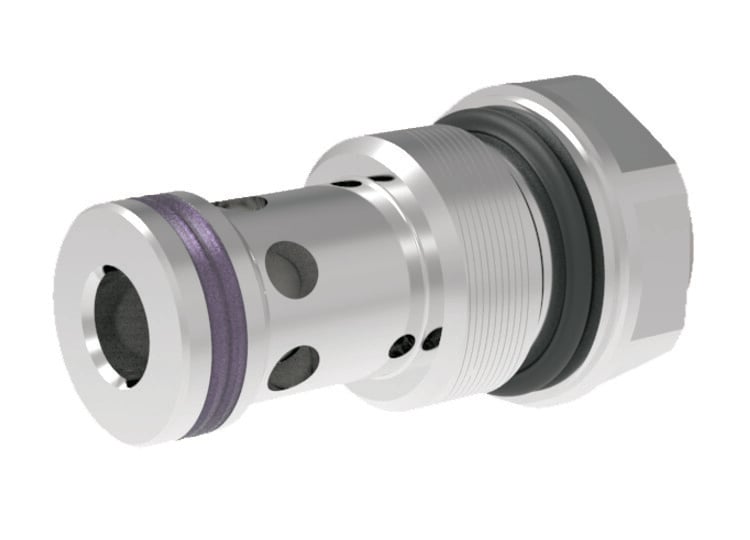

SC1F-C2
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 150 (40) | 350 (5076) | 1-1/16-12 UN |
| Q max. l / min (GPM) | 150 (40) |
| P max. bar (PSI) | 350 (5076) |
| Size | 1-1/16-12 UN |

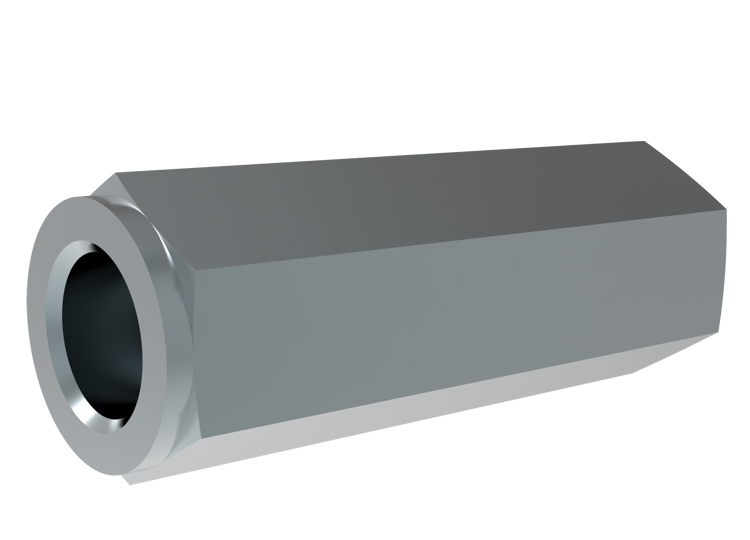

VJ3
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 400 (106) | 320 (4641) | NG 06, 08, 10, 16, 20, 25, 30 |
| Q max. l / min (GPM) | 400 (106) |
| P max. bar (PSI) | 320 (4641) |
| Size | NG 06, 08, 10, 16, 20, 25, 30 |
Check Valves, Modular Design and In-Line Mounted
Product-Variants
VJO1-04/M
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 30 (8) | 320 (4641) | Size 04 (D02) |
| Q max. l / min (GPM) | 30 (8) |
| P max. bar (PSI) | 320 (4641) |
| Size | Size 04 (D02) |
MVJ3-06
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 50 (13) | 350 (5076) | Size 06 (D03) |
| Q max. l / min (GPM) | 50 (13) |
| P max. bar (PSI) | 350 (5076) |
| Size | Size 06 (D03) |
MVJ3-10
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 100 (26) | 350 (5076) | Size 10 (D05) |
| Q max. l / min (GPM) | 100 (26) |
| P max. bar (PSI) | 350 (5076) |
| Size | Size 10 (D05) |
Check Valves, One-Way Throttling
Product-Variants
VJS3
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 60 (16) | 320 (4641) | Size 06, 10 |
| Q max. l / min (GPM) | 60 (16) |
| P max. bar (PSI) | 320 (4641) |
| Size | Size 06, 10 |
Pilot Operated Check Valves Pilot to Open, Cartridges
Product-Variants

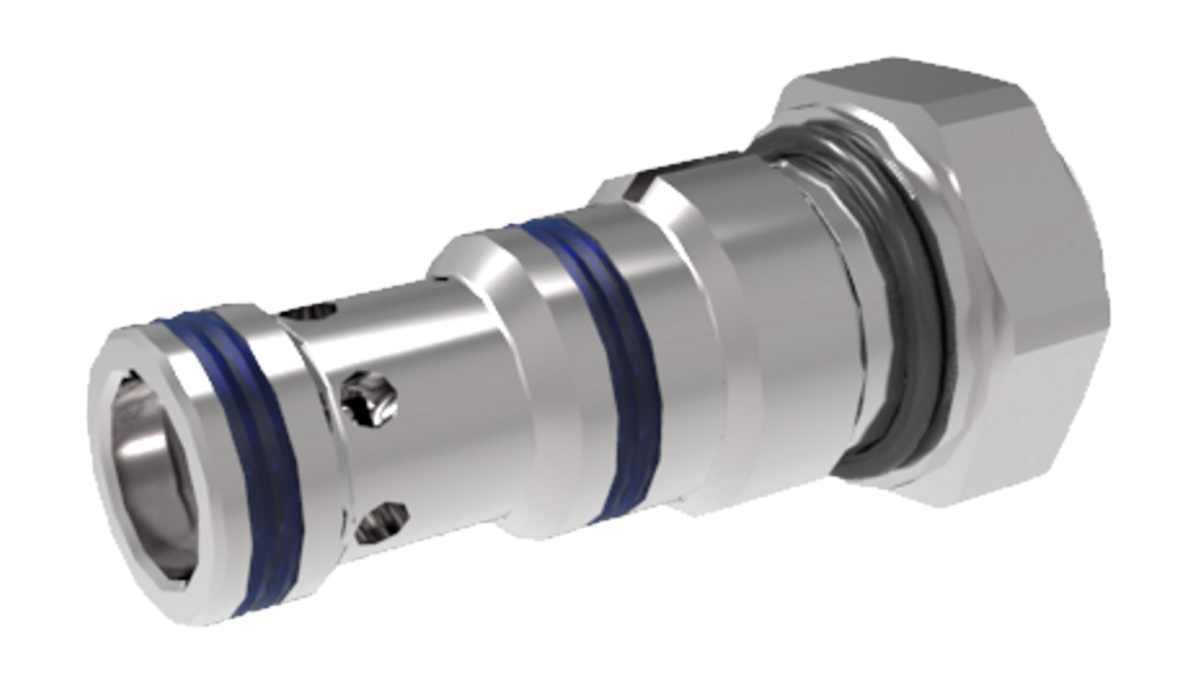

SC5H-BP3
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 60 (16) | 420 (6092) | 7/8-14 UNF |
| Q max. l / min (GPM) | 60 (16) |
| P max. bar (PSI) | 420 (6092) |
| Size | 7/8-14 UNF |
SC5H-CP3
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 120 (32) | 350 (5076) | 1-1/16-12 UN |
| Q max. l / min (GPM) | 120 (32) |
| P max. bar (PSI) | 350 (5076) |
| Size | 1-1/16-12 UN |

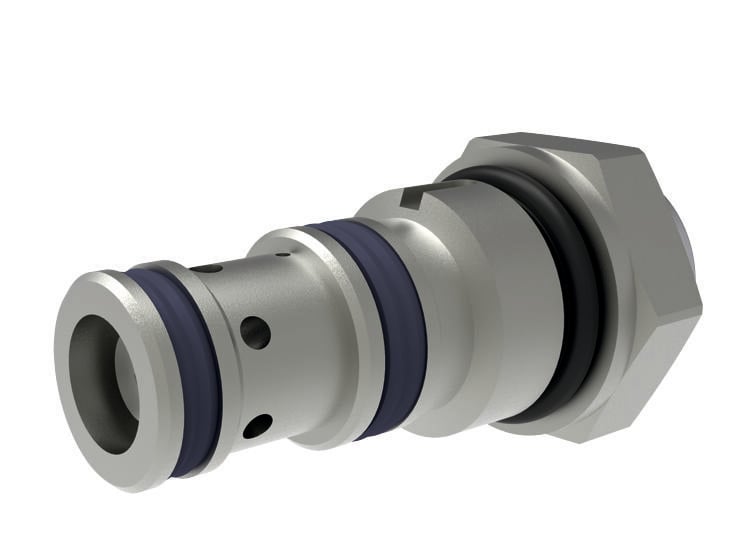

SC5H-I3/S
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 30 (8) | 350 (5076) | M18x1,5 |
| Q max. l / min (GPM) | 30 (8) |
| P max. bar (PSI) | 350 (5076) |
| Size | M18x1,5 |
RJV1-05
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 20 (5) | 250 (3626) | M24 x 1,5 |
| Q max. l / min (GPM) | 20 (5) |
| P max. bar (PSI) | 250 (3626) |
| Size | M24 x 1,5 |
Pilot Operated Check Valves Pilot to Open, Modular Design
Product-Variants
VJR1-04/M
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 20 (5) | 320 (4641) | Size 04 (D02) |
| Q max. l / min (GPM) | 20 (5) |
| P max. bar (PSI) | 320 (4641) |
| Size | Size 04 (D02) |

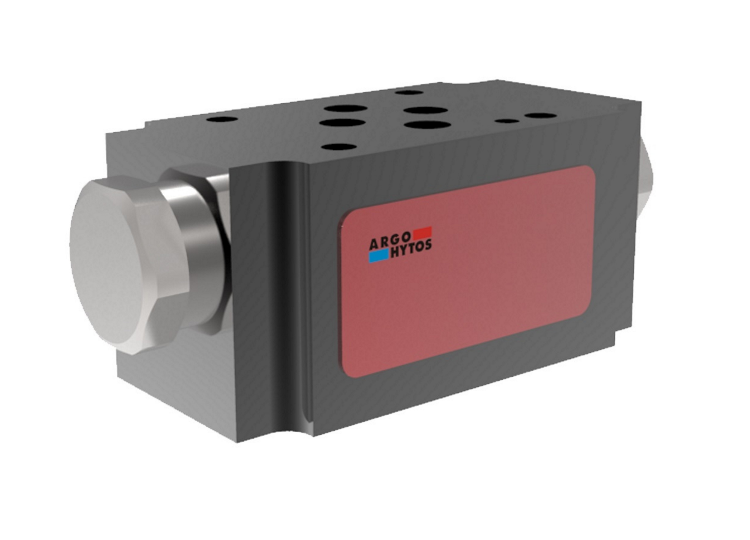

2RJV1-06/M
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 60 (16) | 320 (4641) | Size 06 (D03) |
| Q max. l / min (GPM) | 60 (16) |
| P max. bar (PSI) | 320 (4641) |
| Size | Size 06 (D03) |
VJR3-10/M
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 140 (37) | 350 (5076) | Size 10 (D05) |
| Q max. l / min (GPM) | 140 (37) |
| P max. bar (PSI) | 350 (5076) |
| Size | Size 10 (D05) |
Pilot Operated Check Valves Pilot to Open, In-Line Mounted
Product-Variants

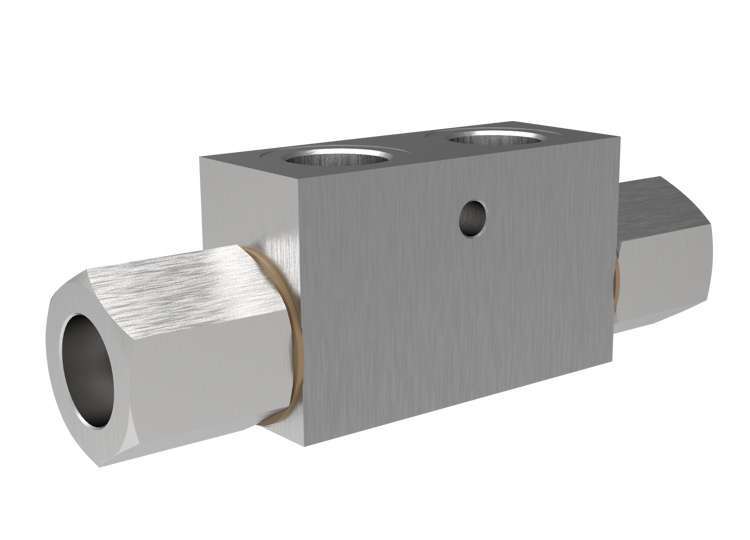

IC5H
| Q max. l / min (GPM) | P max. bar (PSI) |
|---|---|
| 80 (21) | 350 (5076) |
| Q max. l / min (GPM) | 80 (21) |
| P max. bar (PSI) | 350 (5076) |
