Off-line Filters
Our independent off-line filter units continuously clean the hydraulic oil without affecting machine operation. They remove fine particles and water, thereby increasing oil purity and extending component life and maintenance intervals.
Show:
Products shown:
2
With flow regulator, Qnom up to 6 l/min, pmax 320 bar
Product-Variants

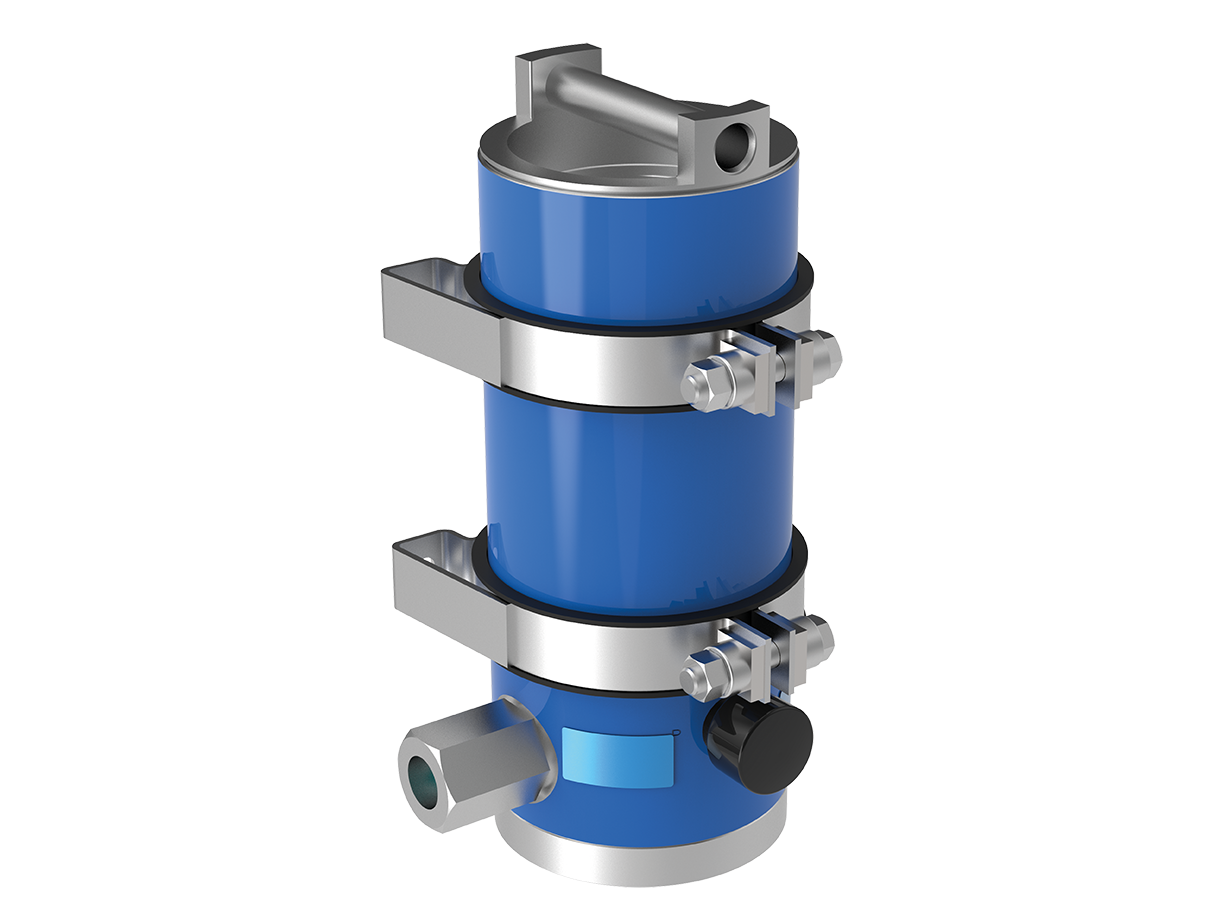

FNS1 040
| Q max. l / min (GPM) | Design | Separation |
|---|---|---|
| 6 (2) | Inline mounted | Particles; free water |
| Q max. l / min (GPM) | 6 (2) |
| Design | Inline mounted |
| Separation | Particles; free water |

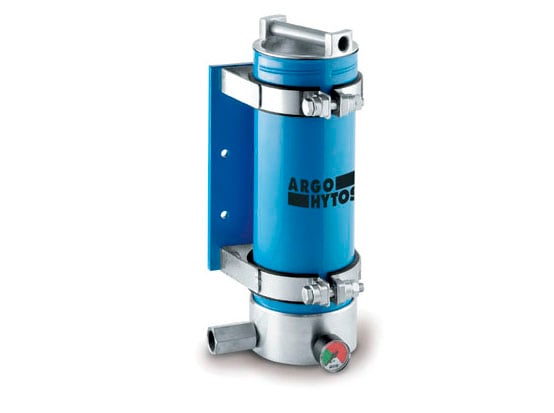

FNS 060
| Q max. l / min (GPM) | Design | Separation |
|---|---|---|
| 6 (2) | Inline mounted | Particles; free water |
| Q max. l / min (GPM) | 6 (2) |
| Design | Inline mounted |
| Separation | Particles; free water |
Without flow regulator, Qmax up to 650l/min, pmax up to 12 bar
Product-Variants

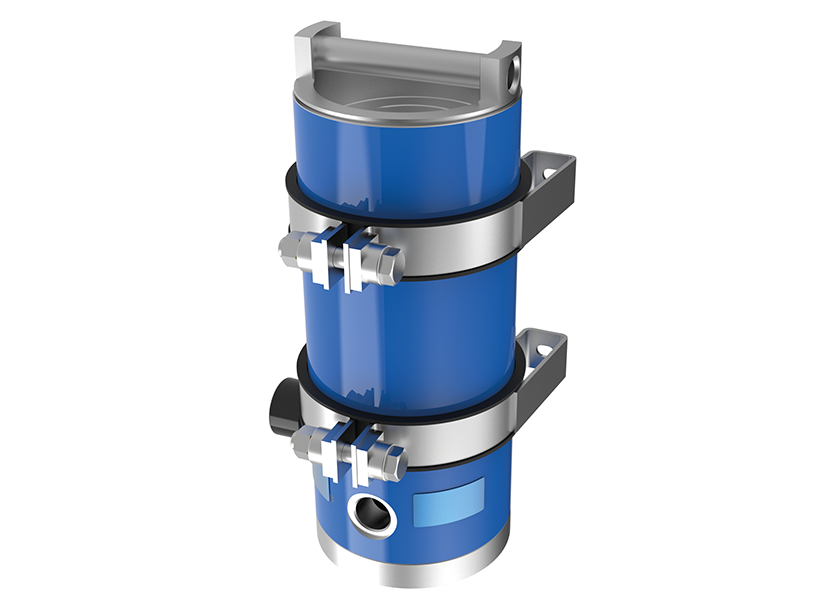

FN1 040
| Q max. l / min (GPM) | Design | Separation |
|---|---|---|
| 60 (16) | Inline mounted | Particles; free water |
| Q max. l / min (GPM) | 60 (16) |
| Design | Inline mounted |
| Separation | Particles; free water |

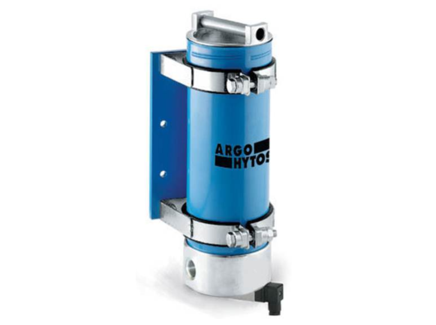

FN 060
| Q max. l / min (GPM) | Design | Separation |
|---|---|---|
| 115 (30) | Inline mounted | Particles; free water |
| Q max. l / min (GPM) | 115 (30) |
| Design | Inline mounted |
| Separation | Particles; free water |

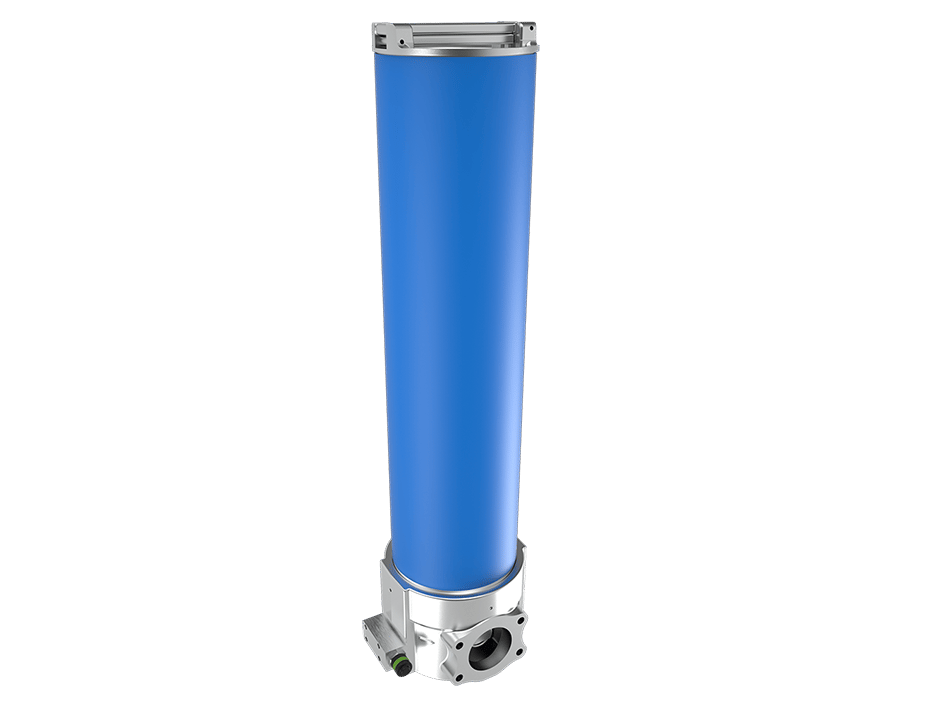

FN1 300
| Q max. l / min (GPM) | Design | Separation |
|---|---|---|
| 650 (172) | Inline mounted | Particles; free water |
| Q max. l / min (GPM) | 650 (172) |
| Design | Inline mounted |
| Separation | Particles; free water |
