Ex-proof valves: encapsulation „Ex-m“ and flameproof enclosure „Ex-t“
Explosion Proof Valves - related documentation
Show:
Products shown:
15

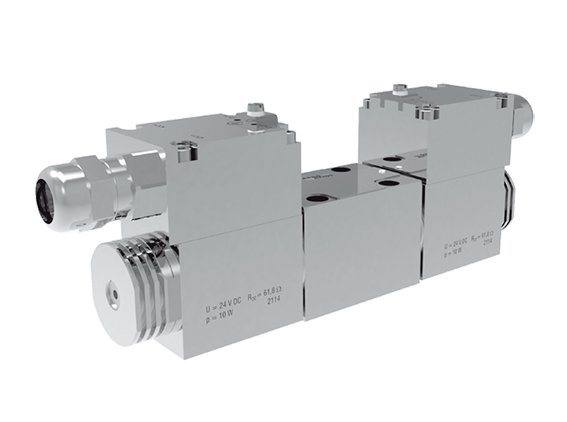

4/2 and 4/3 Directional Control Valves, Solenoid Operated
Size 06 (D03) • Qmax 60 l/min (16 GPM) • pmax 350 bar (5100 PSI)
Product-Variants
RPEX3-06
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 60 (16) | 350 (5076) | Size 06 (D03) |
| Q max. l / min (GPM) | 60 (16) |
| P max. bar (PSI) | 350 (5076) |
| Size | Size 06 (D03) |

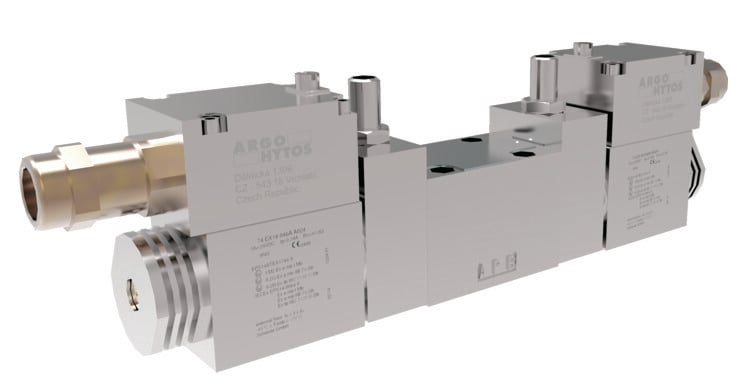

4/2 and 4/3 Directional Control Valves, Solenoid Operated, Spool Position Monitoring
Size 06 (D03) • Qmax 60 l/min (16 GPM) • pmax 350 bar (5100 PSI)
Product-Variants
RPEX3-06*S6
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 60 (16) | 350 (5076) | Size 06 (D03) |
| Q max. l / min (GPM) | 60 (16) |
| P max. bar (PSI) | 350 (5076) |
| Size | Size 06 (D03) |

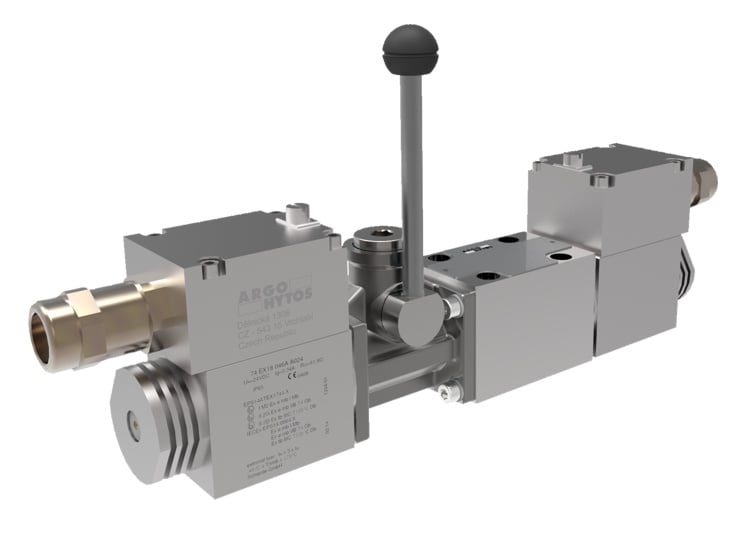

4/2 and 4/3 Directional Control Valves, Solenoid Operated, with lever override
Size 06 (D03) • Qmax 60 l/min (16GPM) • pmax 350 bar (5100 PSI)
Product-Variants
RPERX3-06
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 60 (16) | 350 (5076) | Size 06 (D03) |
| Q max. l / min (GPM) | 60 (16) |
| P max. bar (PSI) | 350 (5076) |
| Size | Size 06 (D03) |
4/2 and 4/3 Directional Control Valves, Internally and Externally Pilot Operated
Size up to 25 (D08) • Qmax 600 l/min (159 GPM) • pmax 350 bar (5076 PSI)
Product-Variants

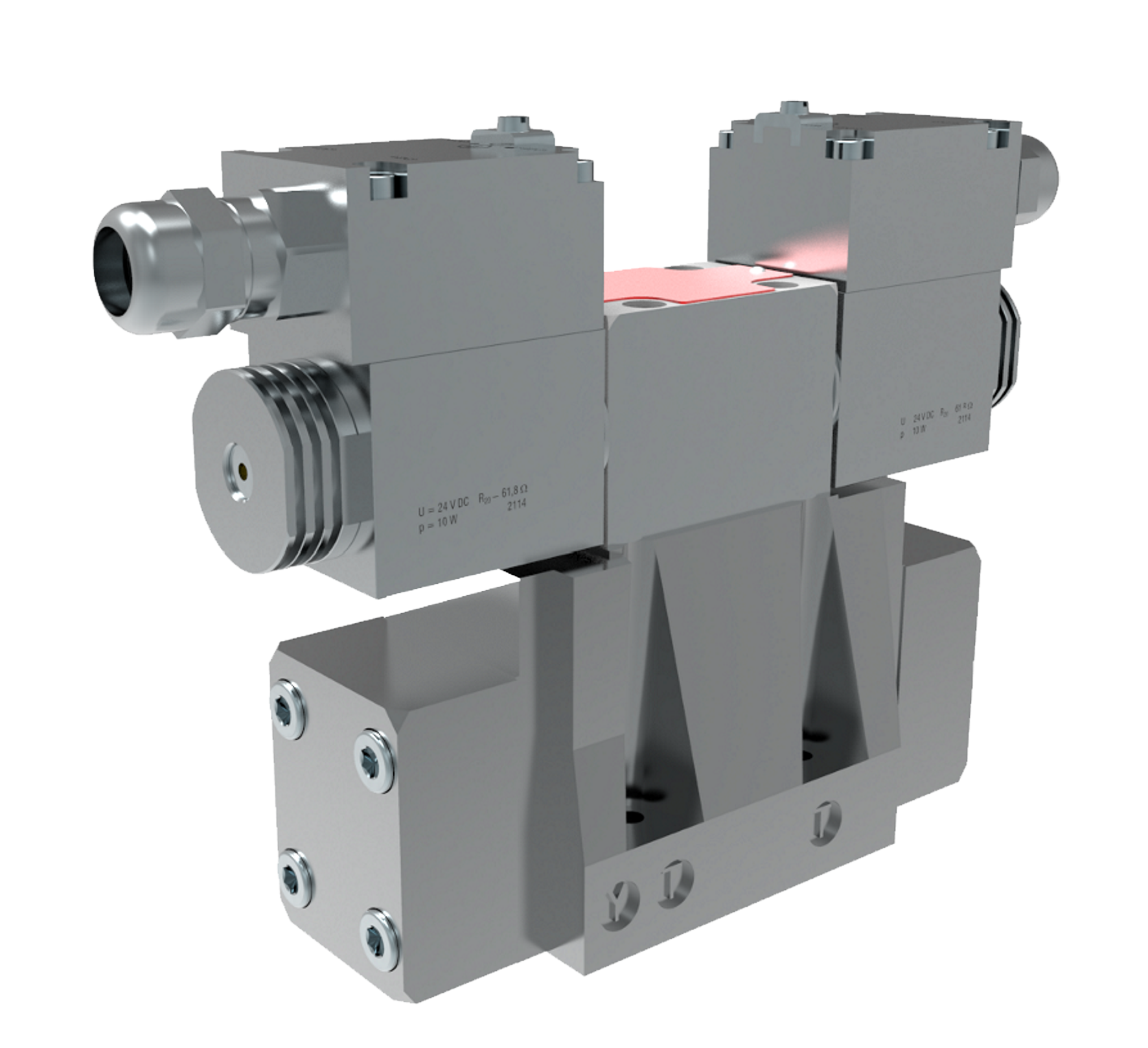

RNEXH1-10
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 150 (40) | 420 (6092) | Size 10 (D05) |
| Q max. l / min (GPM) | 150 (40) |
| P max. bar (PSI) | 420 (6092) |
| Size | Size 10 (D05) |

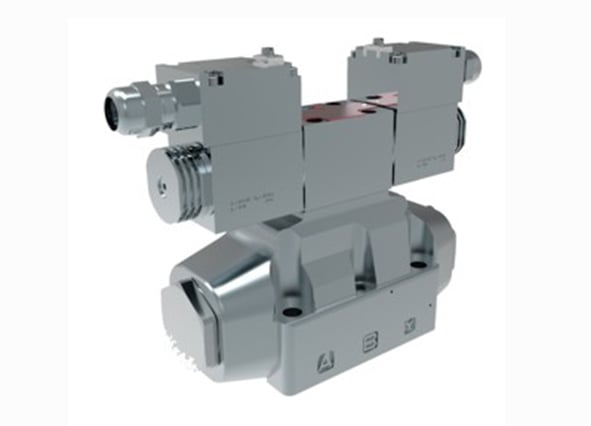

RNEXH5-16
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 300 (79) | 420 (6092) | Size 16 (D07) |
| Q max. l / min (GPM) | 300 (79) |
| P max. bar (PSI) | 420 (6092) |
| Size | Size 16 (D07) |

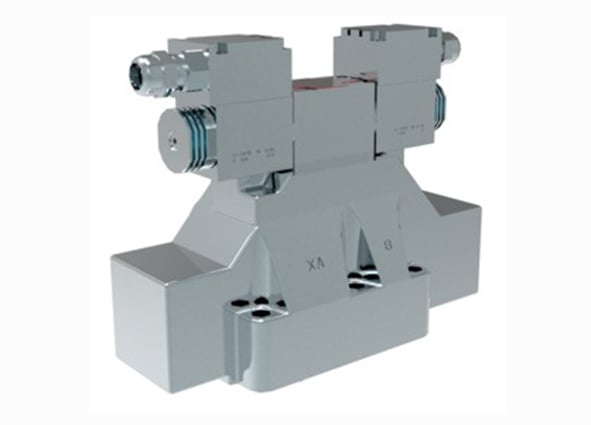

RNEXH4-25
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 600 (159) | 420 (6092) | Size 25 (D08) |
| Q max. l / min (GPM) | 600 (159) |
| P max. bar (PSI) | 420 (6092) |
| Size | Size 25 (D08) |

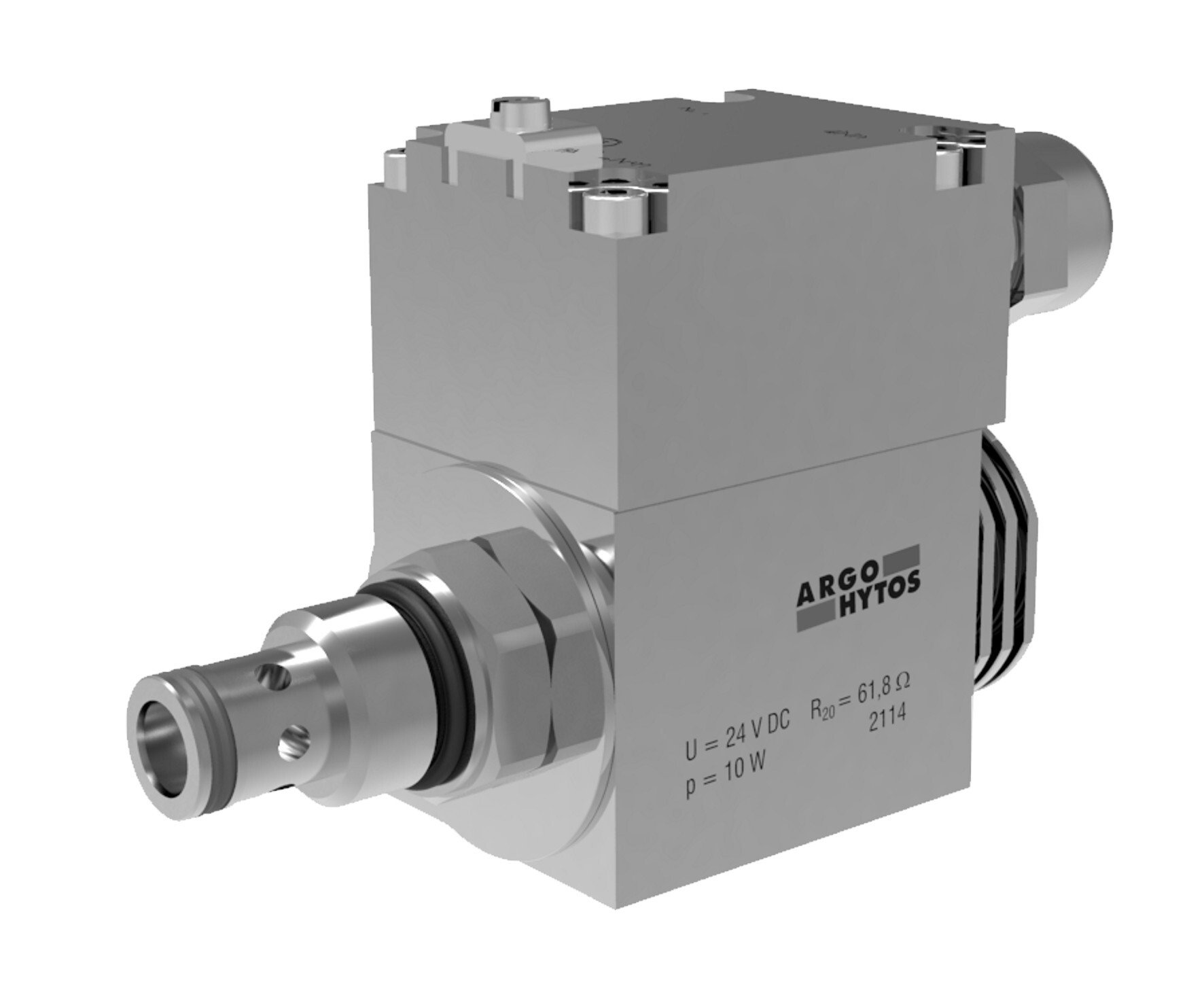

2/2 Directional Valve, Solenoid Operated, Spool Type, Direct-Acting
Product-Variants
SD2EX-B2
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 45 (12) | 350 (5076) | 7/8-14 UNF |
| Q max. l / min (GPM) | 45 (12) |
| P max. bar (PSI) | 350 (5076) |
| Size | 7/8-14 UNF |

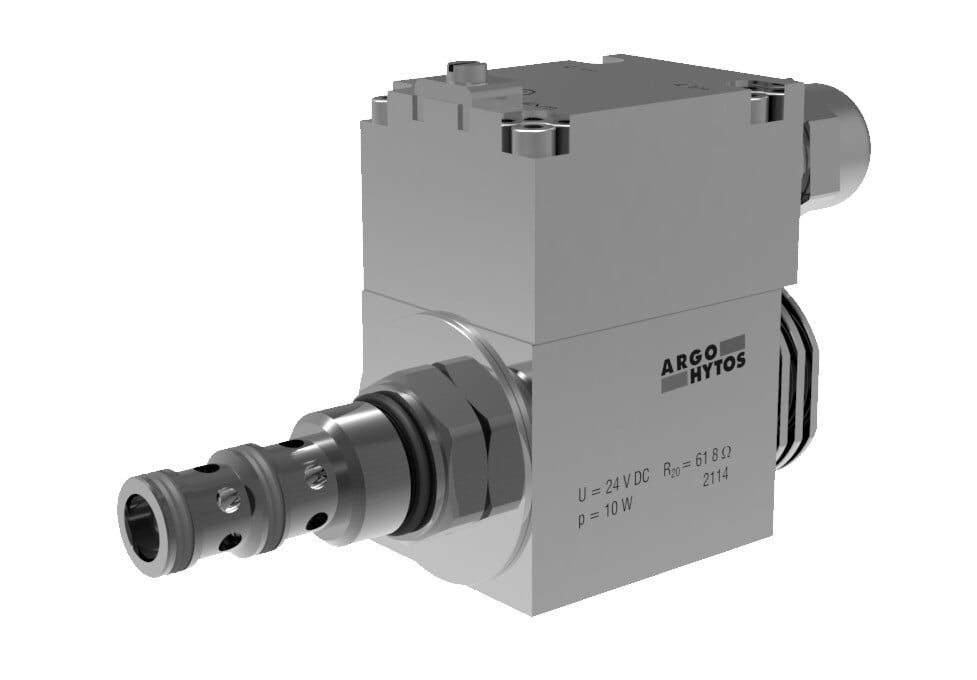

3/2 Directional Valve, Solenoid Operated, Spool Type, Direct-Acting
Product-Variants
SD2EX-B3
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 60 (16) | 350 (5076) | 7/8-14 UNF |
| Q max. l / min (GPM) | 60 (16) |
| P max. bar (PSI) | 350 (5076) |
| Size | 7/8-14 UNF |

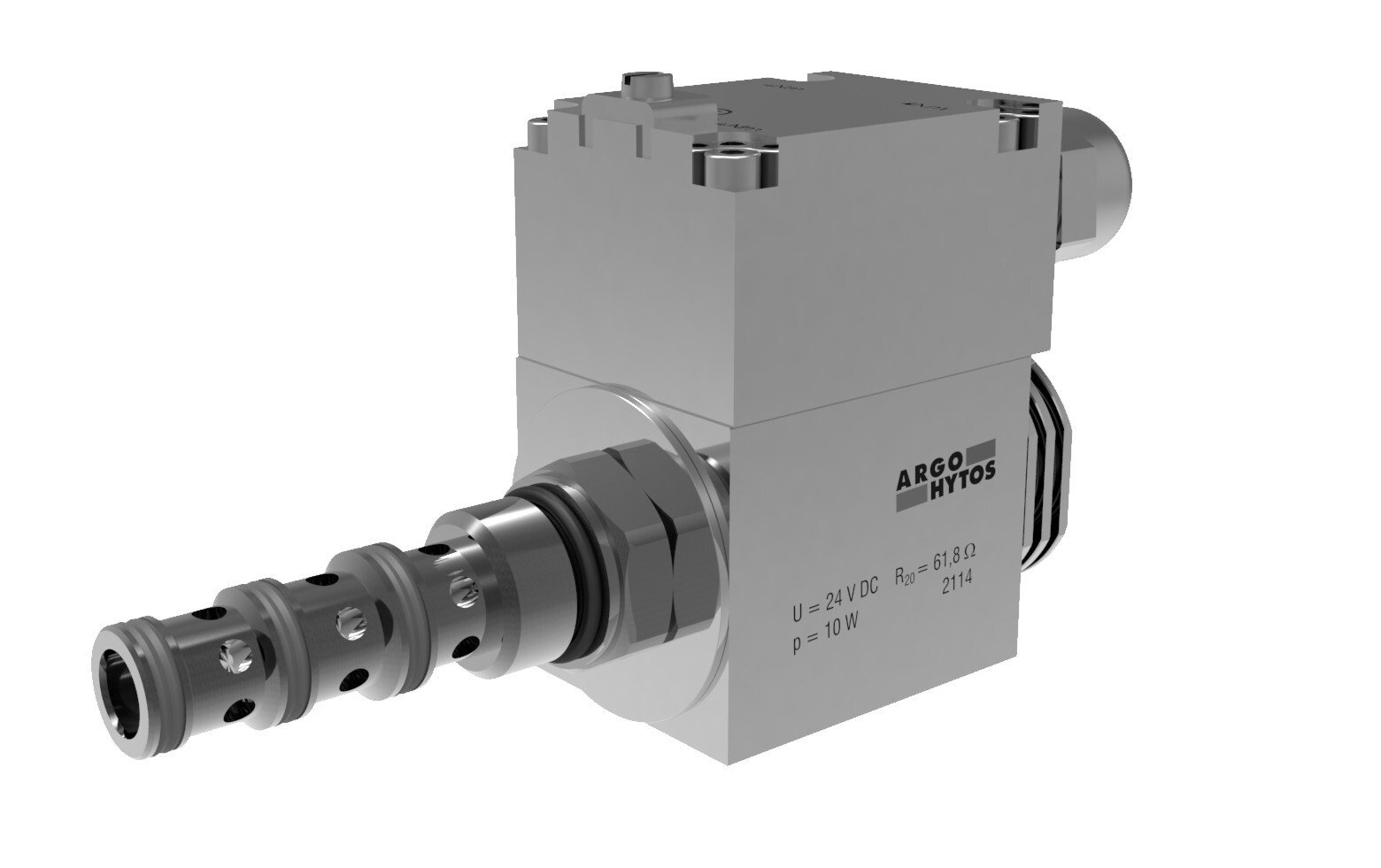

4/2 Directional Valve, Solenoid Operated, Spool Type, Direct-Acting
Product-Variants
SD2EX-B4
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 50 (13) | 350 (5076) | 7/8-14 UNF |
| Q max. l / min (GPM) | 50 (13) |
| P max. bar (PSI) | 350 (5076) |
| Size | 7/8-14 UNF |

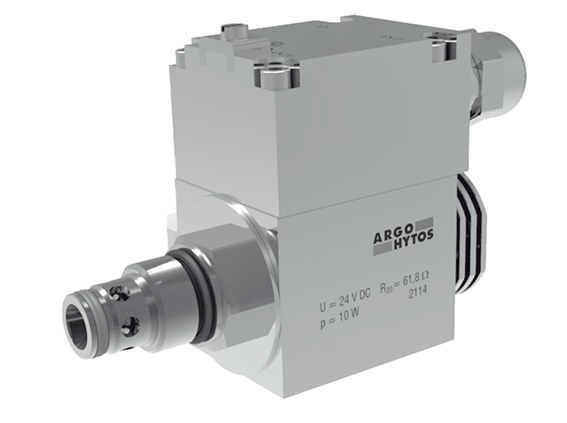

2/2 Directional Valves, Solenoid Operated, Poppet Type, Pilot Operated
Product-Variants

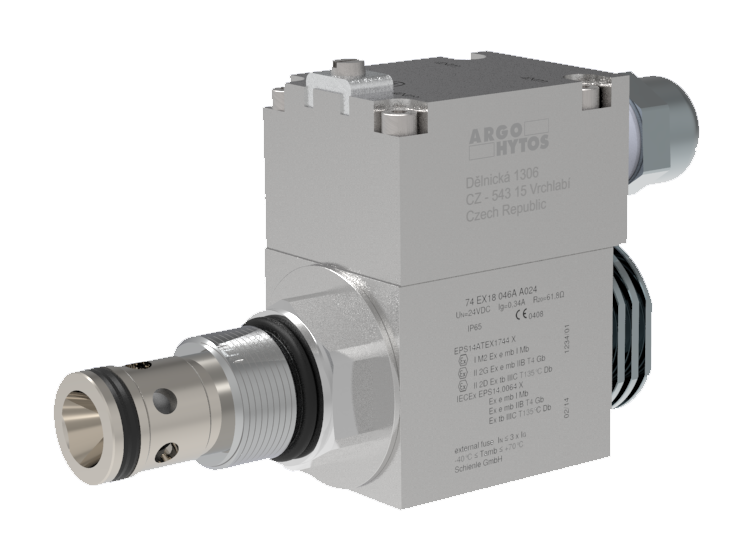

SD3EX-B2
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 75 (20) | 420 (6092) | 7/8-14 UNF |
| Q max. l / min (GPM) | 75 (20) |
| P max. bar (PSI) | 420 (6092) |
| Size | 7/8-14 UNF |
SD3EX-C2*2O2(2L2)
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 150 (40) | 350 (5076) | 1-1/16-12 UN |
| Q max. l / min (GPM) | 150 (40) |
| P max. bar (PSI) | 350 (5076) |
| Size | 1-1/16-12 UN |
2/2 Directional Valves, Solenoid Operated, Poppet Type, Pilot Operated, Blocking
Product-Variants
SD3EX-C2*S5(S6)
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 150 (40) | 350 (5076) | 1-1/16-12 UN |
| Q max. l / min (GPM) | 150 (40) |
| P max. bar (PSI) | 350 (5076) |
| Size | 1-1/16-12 UN |

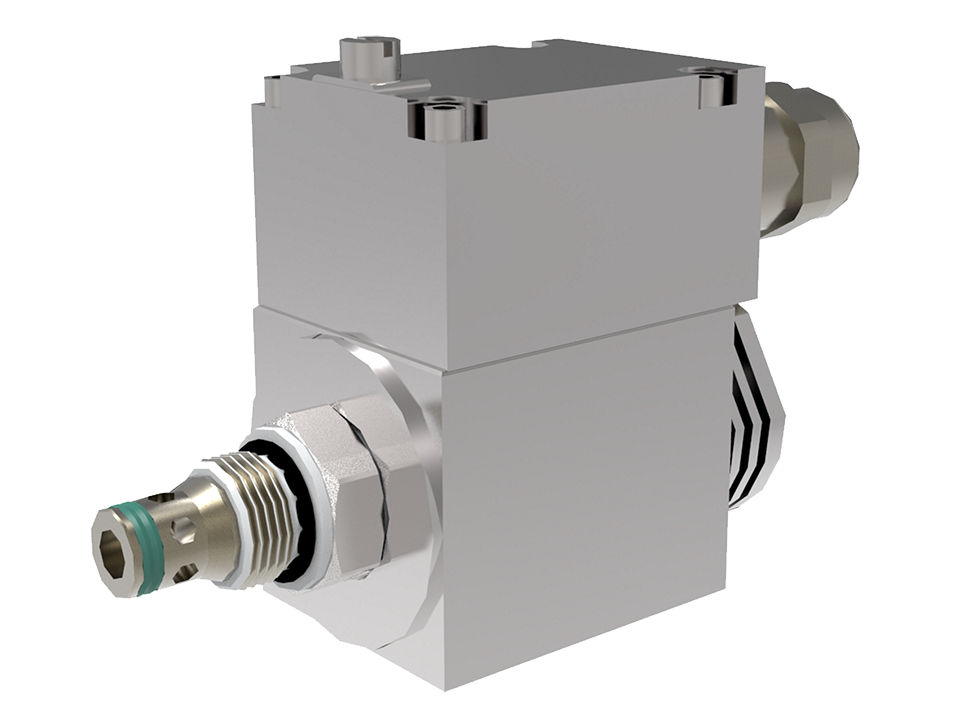

2/2 Solenoid Operated Directional Control Valves Double Poppet Type
Product-Variants
SD1EX-A2
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 30 (8) | 350 (5076) | 3/4-16 UNF |
| Q max. l / min (GPM) | 30 (8) |
| P max. bar (PSI) | 350 (5076) |
| Size | 3/4-16 UNF |

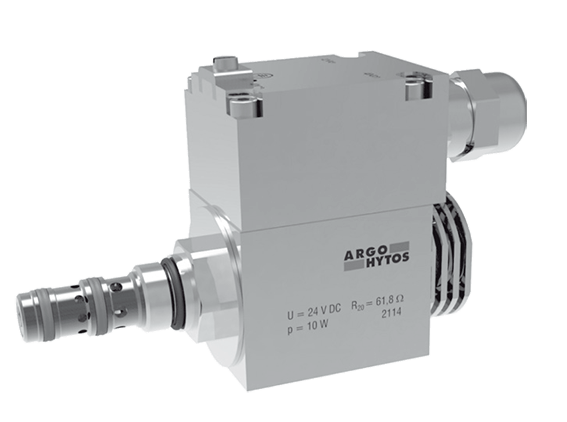

3/2 Directional Valves, Solenoid Operated, Poppet Type, Direct Acting
Product-Variants
SD1EX-A3
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 40 (11) | 350 (5076) | 3/4-16 UNF |
| Q max. l / min (GPM) | 40 (11) |
| P max. bar (PSI) | 350 (5076) |
| Size | 3/4-16 UNF |

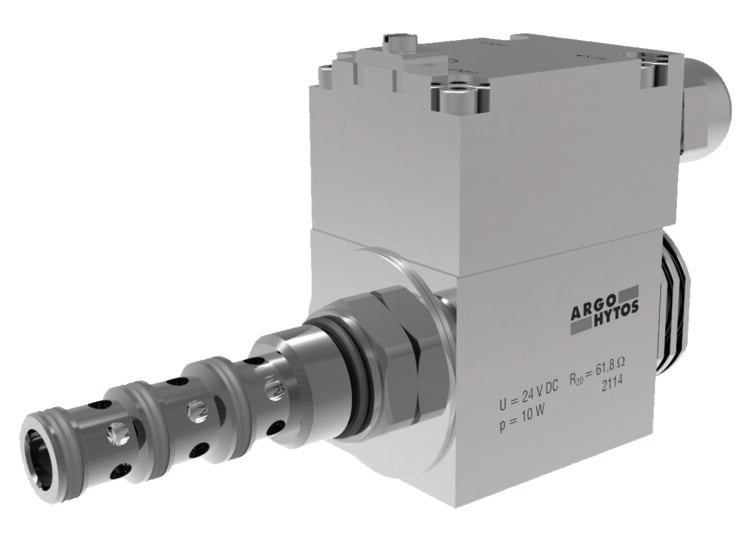

4/3 Proportional Control Valve, Screw-in Cartridge design
Product-Variants
SD2PX-B4
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 25 (7) | 250 (3626) | 7/8-14 UNF |
| Q max. l / min (GPM) | 25 (7) |
| P max. bar (PSI) | 250 (3626) |
| Size | 7/8-14 UNF |
Proportional Directional Control Valves
Product-Variants
PRMX2-06
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 28 (7) | 350 (5076) | Size 06 (D03) |
| Q max. l / min (GPM) | 28 (7) |
| P max. bar (PSI) | 350 (5076) |
| Size | Size 06 (D03) |
Proportional Directional Control Valves, Pilot Operated
Product-Variants
PRMX8-06
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 140 (37) | 350 (5076) | Size 06 (D03) |
| Q max. l / min (GPM) | 140 (37) |
| P max. bar (PSI) | 350 (5076) |
| Size | Size 06 (D03) |
Proportional Pressure Control Valves, Reducing - Relieving, Direct Acting
Product-Variants
PVRMX3-103
| Q max. l / min (GPM) | P max. bar (PSI) | Size |
|---|---|---|
| 40 (11) | 90 (1305) | M24x1.5 |
| Q max. l / min (GPM) | 40 (11) |
| P max. bar (PSI) | 90 (1305) |
| Size | M24x1.5 |
