Return Filters
Return filters ensure high oil purity through full-flow filtration in the system return and reliably protect hydraulic components from wear. They filter manufacturing residues, abrasion, and particles that have entered the oil, thereby contributing significantly to functional protection, especially of the pumps, and to the long service life of the hydraulic system.
Show:
Products shown:
11
Return Filters D 090 · RFL-090 · D 100 · RFL-100
In-line mounting · Connection G¾ / -12 SAE · Nominal flow rate up to 110 l/min / 29.1 gpm
Product-Variants
D 090
| Q max. l / min (GPM) | P max. bar (PSI) | Design |
|---|---|---|
| 85 (22) | 10 (145) | Inline mounting |
| Q max. l / min (GPM) | 85 (22) |
| P max. bar (PSI) | 10 (145) |
| Design | Inline mounting |
RFL-090
| Q max. l / min (GPM) | P max. bar (PSI) | Design |
|---|---|---|
| 100 (26) | 10 (145) | Inline mounting |
| Q max. l / min (GPM) | 100 (26) |
| P max. bar (PSI) | 10 (145) |
| Design | Inline mounting |
D 100
| Q max. l / min (GPM) | P max. bar (PSI) | Design |
|---|---|---|
| 110 (29) | 10 (145) | Inline mounting |
| Q max. l / min (GPM) | 110 (29) |
| P max. bar (PSI) | 10 (145) |
| Design | Inline mounting |
RFL-100
| Q max. l / min (GPM) | P max. bar (PSI) | Design |
|---|---|---|
| 120 (32) | 10 (145) | Inline mounting |
| Q max. l / min (GPM) | 120 (32) |
| P max. bar (PSI) | 10 (145) |
| Design | Inline mounting |
Return Filters D 170 · RFL-170 · D 230 · RFL-230
In-line mounting · Connection G 1¼ / - 20 SAE · Nominal flow rate up to 225 l/min / 59.5 gpm
Product-Variants
D 170
| Q max. l / min (GPM) | P max. bar (PSI) | Design |
|---|---|---|
| 170 (45) | 10 (145) | Inline mounting |
| Q max. l / min (GPM) | 170 (45) |
| P max. bar (PSI) | 10 (145) |
| Design | Inline mounting |
RFL-170
| Q max. l / min (GPM) | P max. bar (PSI) | Design |
|---|---|---|
| 190 (50) | 10 (145) | Inline mounting |
| Q max. l / min (GPM) | 190 (50) |
| P max. bar (PSI) | 10 (145) |
| Design | Inline mounting |
D 230
| Q max. l / min (GPM) | P max. bar (PSI) | Design |
|---|---|---|
| 225 (59) | 10 (145) | Inline mounting |
| Q max. l / min (GPM) | 225 (59) |
| P max. bar (PSI) | 10 (145) |
| Design | Inline mounting |
RFL-230
| Q max. l / min (GPM) | P max. bar (PSI) | Design |
|---|---|---|
| 290 (77) | 10 (145) | Inline mounting |
| Q max. l / min (GPM) | 290 (77) |
| P max. bar (PSI) | 10 (145) |
| Design | Inline mounting |
Return Filters E 043 · RFT-043 · E 072 · RFT-072
Tank top mounting · Connection up to G¾ / -12 SAE · Nominal flow rate up to 70 l/min / 18.5 gpm
Product-Variants
E 043
| Q max. l / min (GPM) | P max. bar (PSI) | Design |
|---|---|---|
| 35 (9) | 10 (145) | Tank-top mounting |
| Q max. l / min (GPM) | 35 (9) |
| P max. bar (PSI) | 10 (145) |
| Design | Tank-top mounting |
RFT-043
| Q max. l / min (GPM) | P max. bar (PSI) | Design |
|---|---|---|
| 50 (13) | 10 (145) | Tank-top mounting |
| Q max. l / min (GPM) | 50 (13) |
| P max. bar (PSI) | 10 (145) |
| Design | Tank-top mounting |
E 072
| Q max. l / min (GPM) | P max. bar (PSI) | Design |
|---|---|---|
| 70 (18) | 10 (145) | Tank-top mounting |
| Q max. l / min (GPM) | 70 (18) |
| P max. bar (PSI) | 10 (145) |
| Design | Tank-top mounting |
RFT-072
| Q max. l / min (GPM) | P max. bar (PSI) | Design |
|---|---|---|
| 90 (24) | 10 (145) | Tank-top mounting |
| Q max. l / min (GPM) | 90 (24) |
| P max. bar (PSI) | 10 (145) |
| Design | Tank-top mounting |

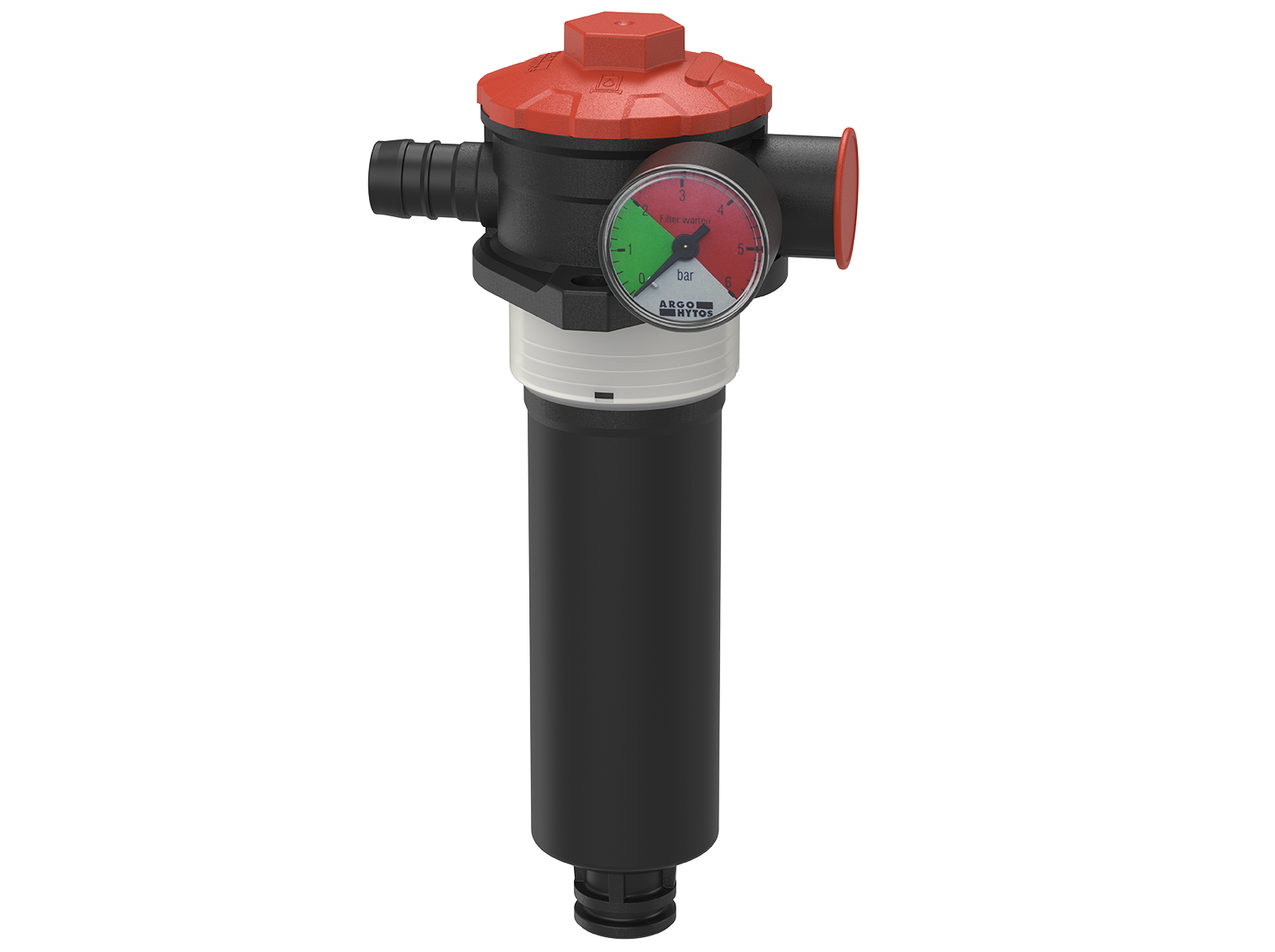

Return Filters FR 043 · FR 072
Tank top mounting · Hose connection up to ID 19 mm / ¾ inch · Nominal flow rate up to 70 l/min / 18.5 gpm
Product-Variants
FR 043
| Q max. l / min (GPM) | P max. bar (PSI) | Design |
|---|---|---|
| 35 (9) | 6 (87) | Tank-top mounting |
| Q max. l / min (GPM) | 35 (9) |
| P max. bar (PSI) | 6 (87) |
| Design | Tank-top mounting |
FR 072
| Q max. l / min (GPM) | P max. bar (PSI) | Design |
|---|---|---|
| 70 (18) | 6 (87) | Tank-top mounting |
| Q max. l / min (GPM) | 70 (18) |
| P max. bar (PSI) | 6 (87) |
| Design | Tank-top mounting |
Return Filters E 103 · RFT-103 · E 143 · RFT-143
Tank top mounting · Connection up to G1 / -16 SAE · Nominal flow rate up to 135 l/min / 35.7 gpm
Product-Variants
E 103
| Q max. l / min (GPM) | P max. bar (PSI) | Design |
|---|---|---|
| 110 (29) | 10 (145) | Tank-top mounting |
| Q max. l / min (GPM) | 110 (29) |
| P max. bar (PSI) | 10 (145) |
| Design | Tank-top mounting |
RFT-103
| Q max. l / min (GPM) | P max. bar (PSI) | Design |
|---|---|---|
| 125 (33) | 10 (145) | Tank-top mounting |
| Q max. l / min (GPM) | 125 (33) |
| P max. bar (PSI) | 10 (145) |
| Design | Tank-top mounting |
E 143
| Q max. l / min (GPM) | P max. bar (PSI) | Design |
|---|---|---|
| 135 (36) | 10 (145) | Tank-top mounting |
| Q max. l / min (GPM) | 135 (36) |
| P max. bar (PSI) | 10 (145) |
| Design | Tank-top mounting |
RFT-143
| Q max. l / min (GPM) | P max. bar (PSI) | Design |
|---|---|---|
| 175 (46) | 10 (145) | Tank-top mounting |
| Q max. l / min (GPM) | 175 (46) |
| P max. bar (PSI) | 10 (145) |
| Design | Tank-top mounting |
Return Filters E 212 · RFT-222 · E 222
Tank top mounting · Connection up to G1¼ / -20 SAE · Nominal flow rate up to 220 l/min / 58.1 gpm
Product-Variants
E 212
| Q max. l / min (GPM) | P max. bar (PSI) | Design |
|---|---|---|
| 190 (50) | 10 (145) | Tank-top mounting |
| Q max. l / min (GPM) | 190 (50) |
| P max. bar (PSI) | 10 (145) |
| Design | Tank-top mounting |
RFT-222
| Q max. l / min (GPM) | P max. bar (PSI) | Design |
|---|---|---|
| 270 (71) | 10 (145) | Tank-top mounting |
| Q max. l / min (GPM) | 270 (71) |
| P max. bar (PSI) | 10 (145) |
| Design | Tank-top mounting |
E 222
| Q max. l / min (GPM) | P max. bar (PSI) | Design |
|---|---|---|
| 220 (58) | 10 (145) | Tank-top mounting |
| Q max. l / min (GPM) | 220 (58) |
| P max. bar (PSI) | 10 (145) |
| Design | Tank-top mounting |
Return Filters E 444 · E 454 · RFT-454 · E 464 · RFT-464 · E 644
Tank top mounting · Connection up to SAE 2 · Nominal flow rate up to 680 l/min / 179.7 gpm
Product-Variants
E 444
| Q max. l / min (GPM) | P max. bar (PSI) | Design |
|---|---|---|
| 270 (71) | 10 (145) | Tank-top mounting |
| Q max. l / min (GPM) | 270 (71) |
| P max. bar (PSI) | 10 (145) |
| Design | Tank-top mounting |
E 454
| Q max. l / min (GPM) | P max. bar (PSI) | Design |
|---|---|---|
| 525 (139) | 10 (145) | Tank-top mounting |
| Q max. l / min (GPM) | 525 (139) |
| P max. bar (PSI) | 10 (145) |
| Design | Tank-top mounting |
RFT-454
| Q max. l / min (GPM) | P max. bar (PSI) | Design |
|---|---|---|
| 500 (132) | 10 (145) | Tank-top mounting |
| Q max. l / min (GPM) | 500 (132) |
| P max. bar (PSI) | 10 (145) |
| Design | Tank-top mounting |
E 464
| Q max. l / min (GPM) | P max. bar (PSI) | Design |
|---|---|---|
| 600 (159) | 10 (145) | Tank-top mounting |
| Q max. l / min (GPM) | 600 (159) |
| P max. bar (PSI) | 10 (145) |
| Design | Tank-top mounting |
RFT-464
| Q max. l / min (GPM) | P max. bar (PSI) | Design |
|---|---|---|
| 650 (172) | 10 (145) | Tank-top mounting |
| Q max. l / min (GPM) | 650 (172) |
| P max. bar (PSI) | 10 (145) |
| Design | Tank-top mounting |
E 644
| Q max. l / min (GPM) | P max. bar (PSI) | Design |
|---|---|---|
| 680 (180) | 10 (145) | Tank-top mounting |
| Q max. l / min (GPM) | 680 (180) |
| P max. bar (PSI) | 10 (145) |
| Design | Tank-top mounting |
Return Filters E 441 · E 451 · E 461 · E 641 · E 700
Tank mounting · Nominal flow rate up to 800 l/min / 211.4 gpm
Product-Variants
E 441
| Q max. l / min (GPM) | P max. bar (PSI) | Design |
|---|---|---|
| 270 (71) | 10 (145) | Tank-top mounting |
| Q max. l / min (GPM) | 270 (71) |
| P max. bar (PSI) | 10 (145) |
| Design | Tank-top mounting |
E 451
| Q max. l / min (GPM) | P max. bar (PSI) | Design |
|---|---|---|
| 480 (127) | 10 (145) | Tank-top mounting |
| Q max. l / min (GPM) | 480 (127) |
| P max. bar (PSI) | 10 (145) |
| Design | Tank-top mounting |
E 461
| Q max. l / min (GPM) | P max. bar (PSI) | Design |
|---|---|---|
| 600 (159) | 10 (145) | Tank-top mounting |
| Q max. l / min (GPM) | 600 (159) |
| P max. bar (PSI) | 10 (145) |
| Design | Tank-top mounting |
E 641
| Q max. l / min (GPM) | P max. bar (PSI) | Design |
|---|---|---|
| 680 (180) | 10 (145) | Tank-top mounting |
| Q max. l / min (GPM) | 680 (180) |
| P max. bar (PSI) | 10 (145) |
| Design | Tank-top mounting |
E 700
| Q max. l / min (GPM) | P max. bar (PSI) | Design |
|---|---|---|
| 800 (211) | 10 (145) | Tank-top mounting |
| Q max. l / min (GPM) | 800 (211) |
| P max. bar (PSI) | 10 (145) |
| Design | Tank-top mounting |
Return Filters RFI 206 · RFI 406
For calmed oil flow in the tank · Tank mounting · Nominal flow rate up to 400 l/min / 105.7 gpm
Product-Variants
RFI 206
| Q max. l / min (GPM) | P max. bar (PSI) | Design |
|---|---|---|
| 210 (55) | 2.5 (36) | Tank-top mounting |
| Q max. l / min (GPM) | 210 (55) |
| P max. bar (PSI) | 2.5 (36) |
| Design | Tank-top mounting |
RFI 406
| Q max. l / min (GPM) | P max. bar (PSI) | Design |
|---|---|---|
| 400 (106) | 2.5 (36) | Tank-top mounting |
| Q max. l / min (GPM) | 400 (106) |
| P max. bar (PSI) | 2.5 (36) |
| Design | Tank-top mounting |
Return Filters RFI 606 · RFI 1006
For calmed oil flow in the tank · Tank mounting · Nominal flow rate up to 960 l/min / 254 gpm
Product-Variants
RFI 606
| Q max. l / min (GPM) | P max. bar (PSI) | Design |
|---|---|---|
| 630 (166) | 2.5 (36) | Tank-top mounting |
| Q max. l / min (GPM) | 630 (166) |
| P max. bar (PSI) | 2.5 (36) |
| Design | Tank-top mounting |
RFI 1006
| Q max. l / min (GPM) | P max. bar (PSI) | Design |
|---|---|---|
| 960 (254) | 2.5 (36) | Tank-top mounting |
| Q max. l / min (GPM) | 960 (254) |
| P max. bar (PSI) | 2.5 (36) |
| Design | Tank-top mounting |

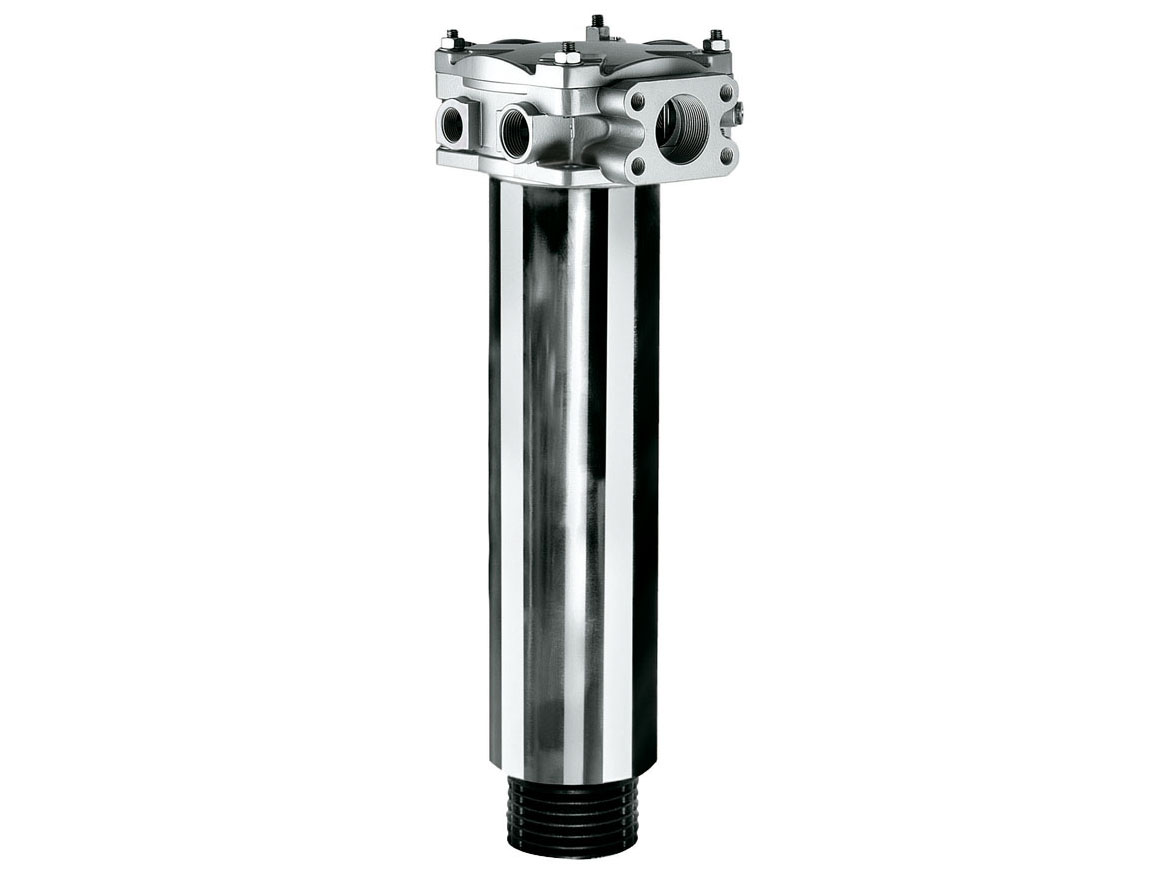

Return Filters E 303 · E 503 · E 703
Tank top mounting · Connection up to SAE 2½ · Nominal flow rate up to 900 l/min / 237.8 gpm
Product-Variants
E 303
| Q max. l / min (GPM) | P max. bar (PSI) | Design |
|---|---|---|
| 500 (132) | 10 (145) | Tank-top mounting |
| Q max. l / min (GPM) | 500 (132) |
| P max. bar (PSI) | 10 (145) |
| Design | Tank-top mounting |
E 503
| Q max. l / min (GPM) | P max. bar (PSI) | Design |
|---|---|---|
| 750 (198) | 10 (145) | Tank-top mounting |
| Q max. l / min (GPM) | 750 (198) |
| P max. bar (PSI) | 10 (145) |
| Design | Tank-top mounting |
E 703
| Q max. l / min (GPM) | P max. bar (PSI) | Design |
|---|---|---|
| 900 (238) | 10 (145) | Tank-top mounting |
| Q max. l / min (GPM) | 900 (238) |
| P max. bar (PSI) | 10 (145) |
| Design | Tank-top mounting |
